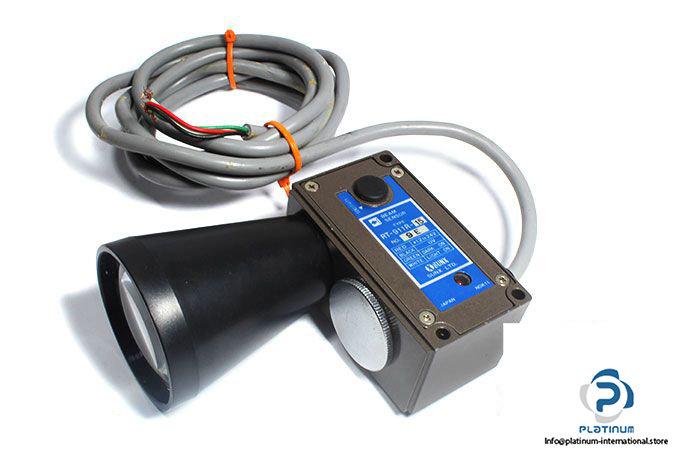

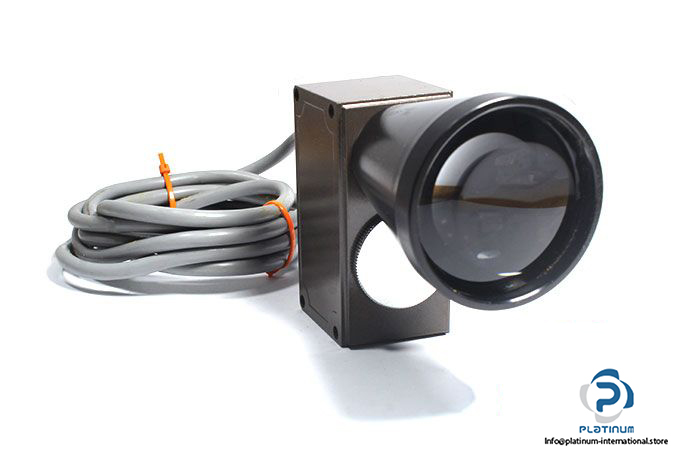

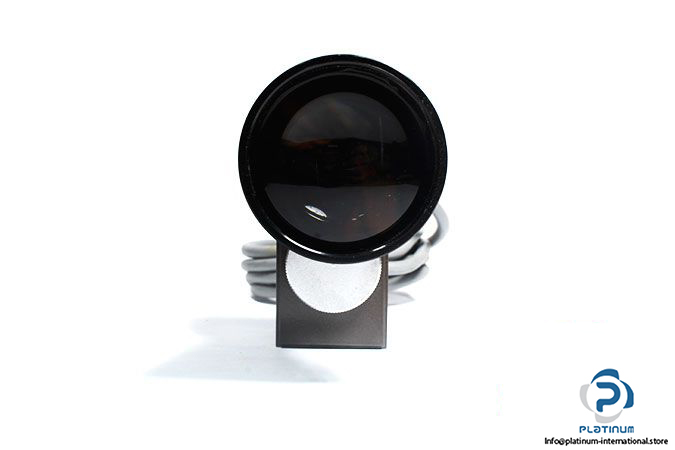

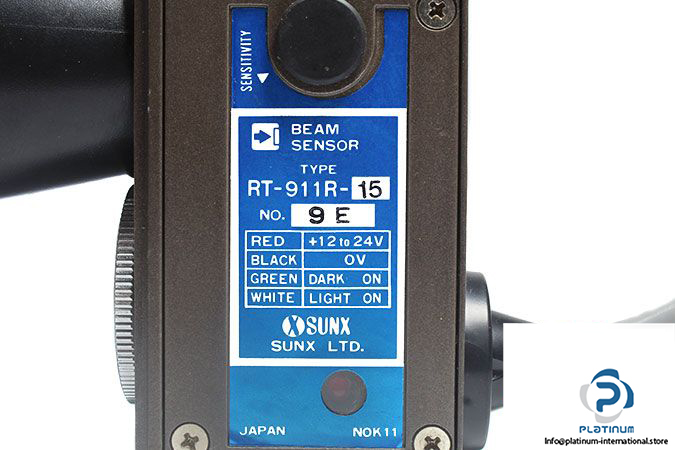

Sunx RT-911R-15 Receiver Thru-Beam Sensor

Manufacturer: SUNX

Type: Receiver Thru-Beam Sensor

Series: RT

Model: RT-911R-15



Sensing Range: 150 m

Supply Voltage: 12 … 24 V DC

Consumption: 70 mA

Output: NPN

Output Operation: Light-ON / Dark-ON

Emitting Element: Infrared LED

Response Time: Less Than 5ms

Operation Indictor: Red LED

Protection: IP66

Ambient Temperature: -10 … 60 °C

Connection: Cable 2m, 4-wire

Diameter, Dimensions: 55, 38 x 89.5 x 110 mm

Housing Material: Enclosure: Zinc Alloy Die Casting, Lens: Glass

Weight: 0.57 kg
