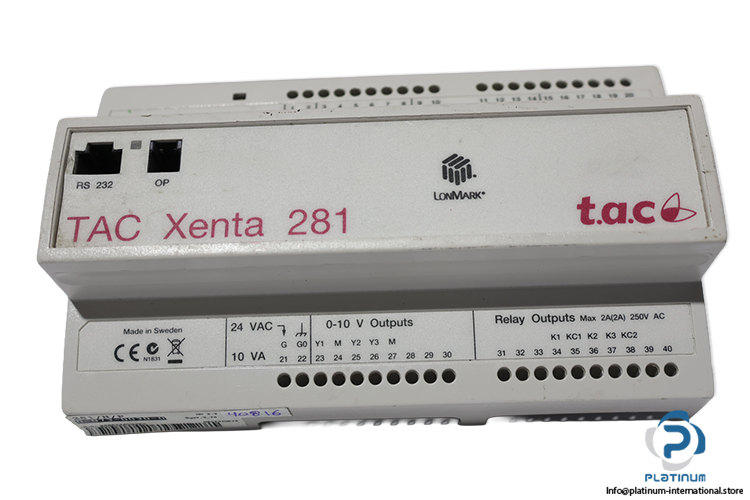

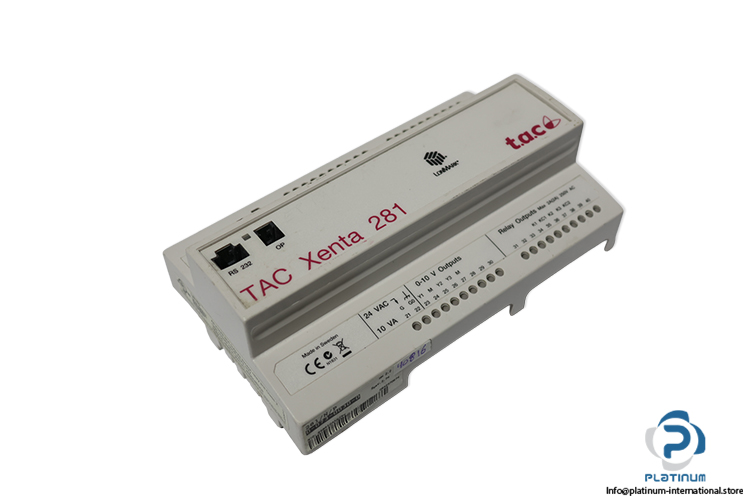

TAC Xenta 281/N/P PROGRAMMABLE CONTROLLER
Used
In stock1 unitReady to ship
Programmable Controller The TAC Xenta 281/N/P is a 24 V AC programmable controller with 12 I/O capacity, LONWORKS communication, RS232 connectivity, and IP20 protection for building automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

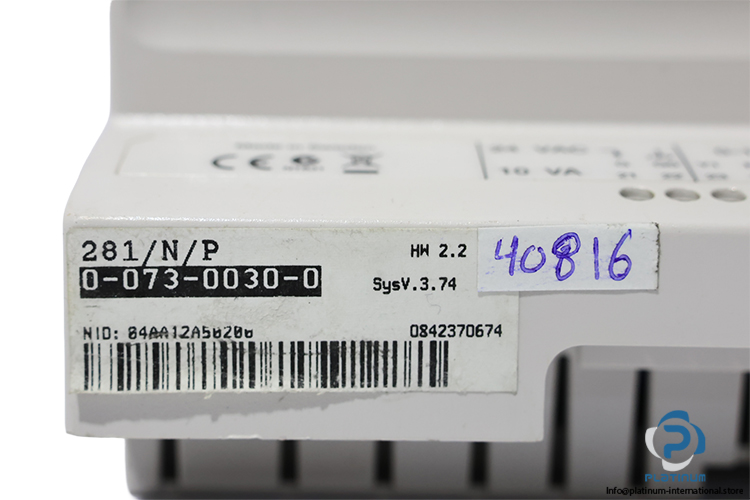

| Part No. | 0-073-0030-0 |
| N ID | 84AA12A50206 |
| Batch No. | 0842370674 |
| Power Supply | 24 V AC |
| Frequency | 50 … 60 Hz |
| Power Consumption Max. | 10 VA |
| Transformer Sizing | 2 VA |

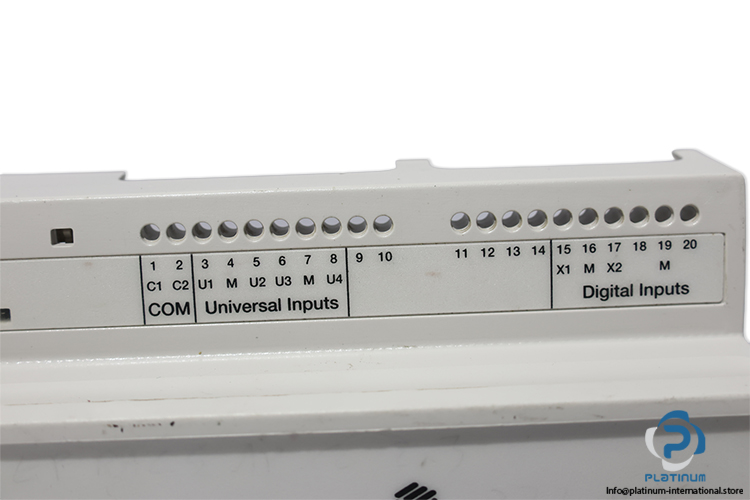

| I/O Capacity | 12 Inputs and Outputs Total, Including Digital Inputs, Universal Inputs, Analog Outputs, And Digital Relay Outputs |
| Communication | LONWORKS FTT-10 (78 kbps) Free-Topology/Bus Network Protocol, LONTALK, and an RS232 Port. |
| Programming & Management | Programmed Using TAC Menta (Function Block Diagrams) and Compatible with the TAC Vista Central System and TAC Xenta OP Operator Panel |
| Backup | Flash Memory for Application Storage and a 72-Hour Real-Time Clock Backup (RAM Stays Intact Under 72 Hours for a Warm Restart) |
| Protection Class | IP20 |
| Temperature | 0 … 50 °C |
| Dimensions | 180 x 110 x 75 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104291 |
| Weight | 0,31 |
