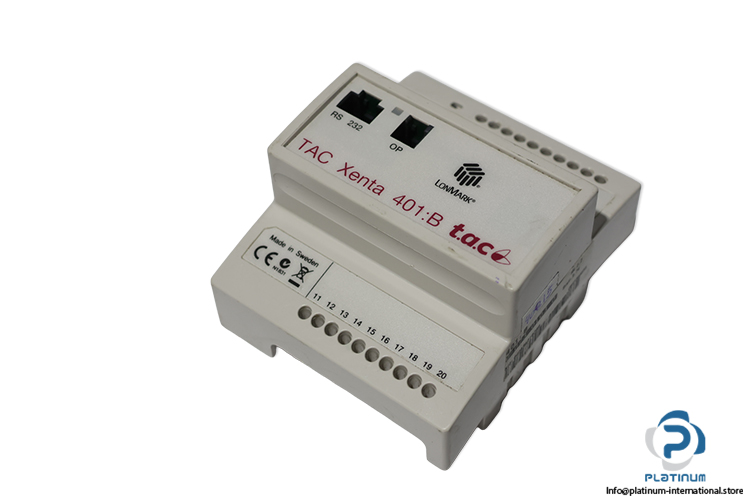

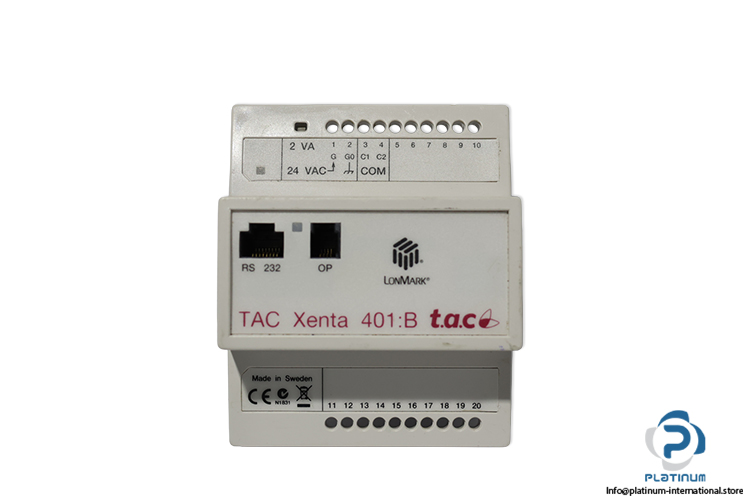

TAC Xenta 401:B PROGRAMMABLE CONTROLLER
Used
In stock2 unitsReady to ship
Programmable Controller The TAC Xenta 401:B is a 24 V AC/DC programmable controller with LonTalk and RS-232 communication, designed for building automation and control systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

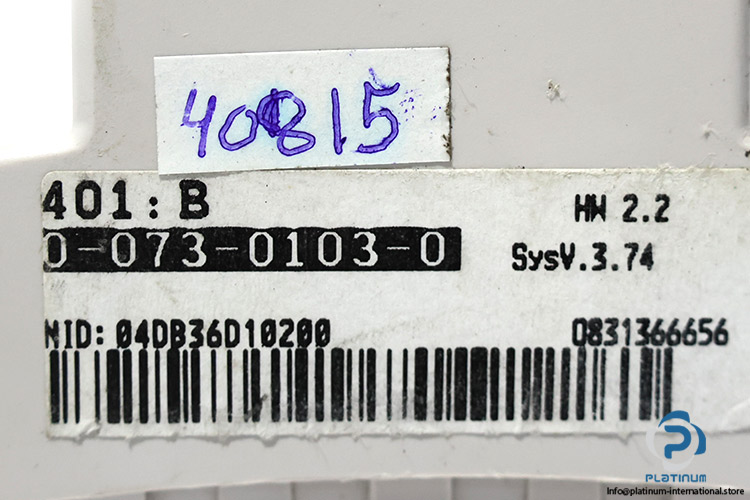

| Part No. | 0-073-0103-0 |
| N ID | 04DB36D10200 |
| Batch No. | 0831366656 |
| Power Supply | 24 V AC/DC |
| Frequency | 50 … 60 Hz |
| Power Consumption Max. | 2 W |
| Transformer Sizing | 2 VA |
| Processor & Memory | 32-bit CPU Running at 12.28 MHz, with 2 MB Flash Memory and 128 kB SRAM. |
| Communication | LonTalk TP/FT-10 (Free Topology), RS-232, and Modem Support. Connects to Central Building Management Systems Like TAC Vista Or The Tac Xenta Op Operator Panel |
| Programming | Programmed Graphically Using TAC Menta Function Block Diagrams (FBDs) |
| Protection Class | IP20 |
| Temperature | 0 … 50 °C |
| Dimensions | 110 x 90 x 77.4 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104290 |
| Weight | 0,16 |
