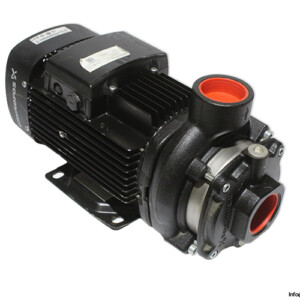

Technotrans Pumpe G-1 5-5 Centrifugal Pump
New
In stock1 unitReady to ship

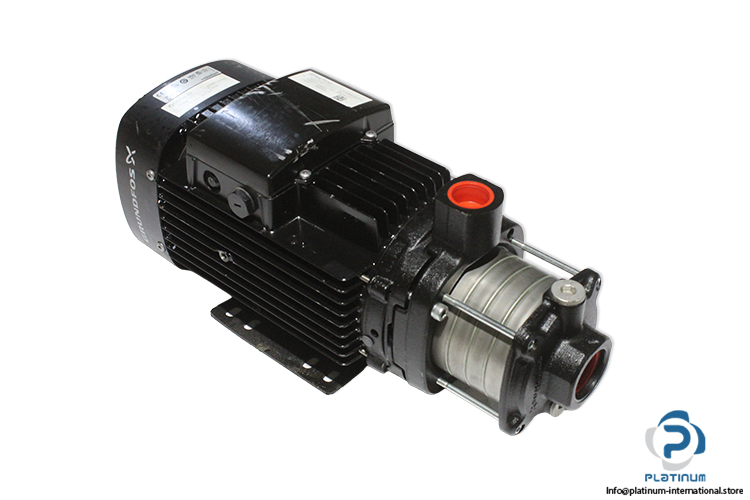

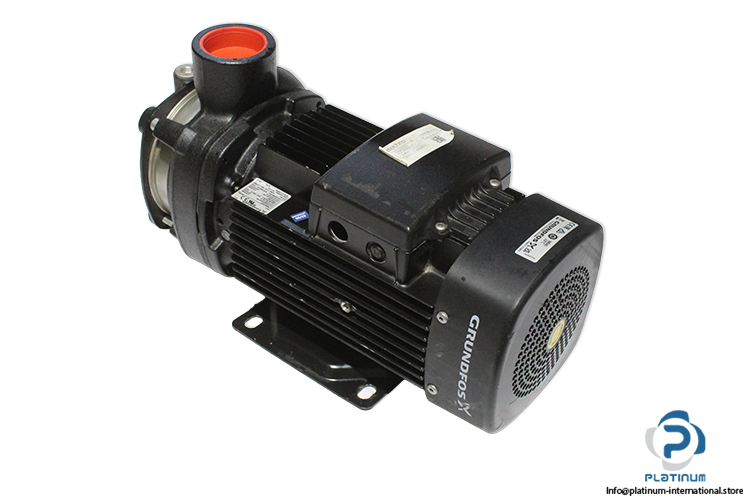

TECHNOTRANS PUMPE G-1 5-5 industrial centrifugal pump with GRUNDFOS ML90HA-J-H3-CMS2A norm motor, delivering 17 m³/h flow, 14.71 m head, IE3 efficiency, IP55 protection, and continuous-duty operation for demanding industrial fluid handling applications.
CentrifugalContinuousCoolingDutyFluidGrundfosIE3IECIndustrialInternatioIP55motorPhasePlatinumProcesspumpTechnotransthreeTransfer
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

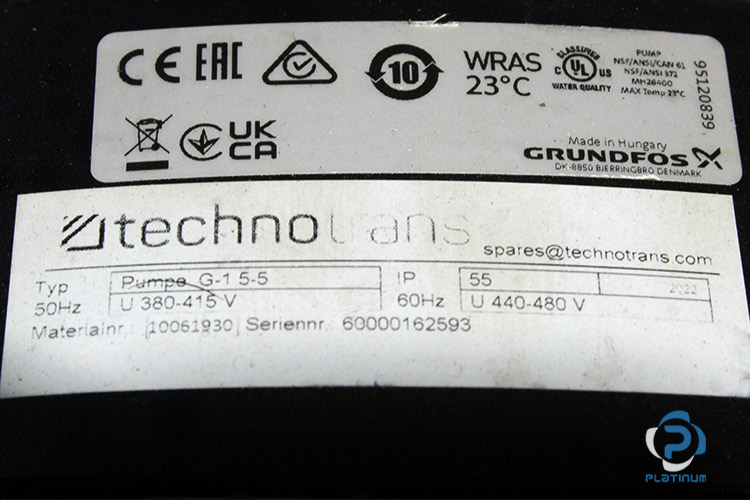

| Mat No | 10061930 |
| SN | 60000162593 |
| Rated Voltage at 50 hz ,CENTRIFUGAL PUMP[V] | 380 - 415 |
| Rated Voltage at 60 hz ,CENTRIFUGAL PUMP[V] | 440 - 480 |
| Protection class | ip55 |
| Rated flow | 17 m³/h |
| Rated head | 14.71 m |

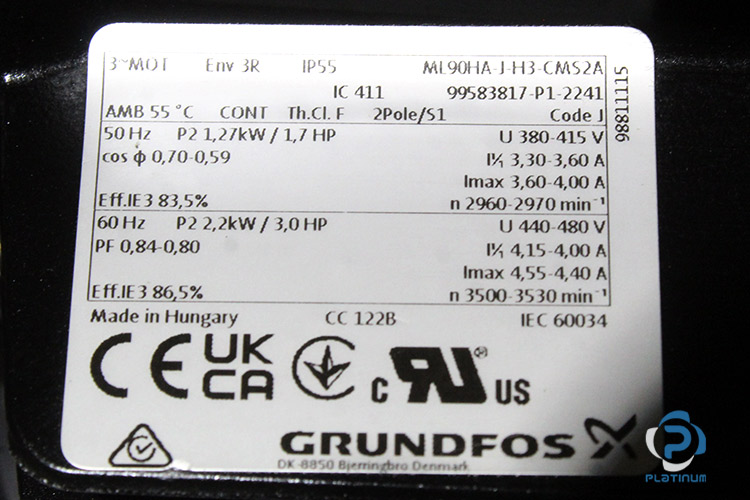

| Attached with | GRUNDFOS ML90HA-J-H3-CMS2A 3-phase asynchronous motor |
| Part No, 3-phase asynchronous motor | 99583817-P1-2241 |
| Ref No, 3-phase asynchronous motor | 98811115 |
| Rated Power at 50 hz [kW] | 1.27 |
| Rated Voltage at 50 hz [V] | 380-415 |
| Rated Current at 50 hz [A] | 3,30-3,60 |
| max Current at 50 hz [A] | 3,60-4,00 |
| Rated Speed at 50 hz [rpm] | 2960 - 2970 |
| Power Factor at 50 hz | 0.70 - 0.59 |
| Efficiency (IE3) at 50 hz | 83.5% |
| Rated Power at 60 hz [kW] | 2.2 |
| Rated Voltage at 60 hz [V] | 440-480 |
| Rated Current at 60 hz [A] | 4,15 - 4,00 |
| max Current at 60 hz [A] | 4,55 - 4,40 |
| Rated Speed at 60 hz [rpm] | 3500 - 3530 |
| Power Factor at 60 hz | 0.84 - 0.80 |
| Efficiency (IE3) at 60 hz | 86.5% |
| Enclosure Rating | IP 55 |
| Insulation Class | Th.Cl. F |
| Ambient Temperature | Max 55 c |
| Cooling Method | IC 411 |
| Duty Cycle | CONT (Continuous operation) |
| Coed | J |
| Standard | IEC 60034 |
| Condition | New |
| SKU | 1096993 |
| Weight | 24,8 |
