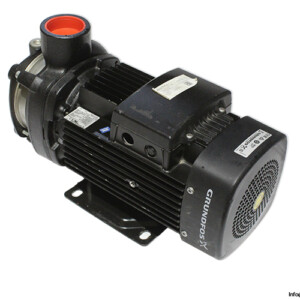

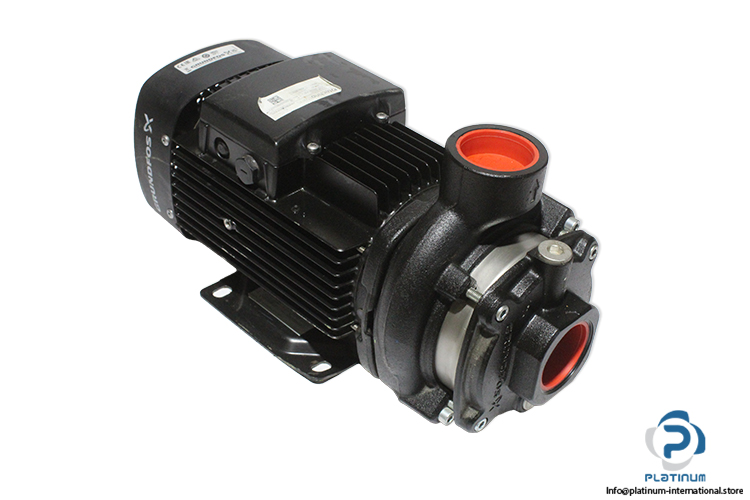

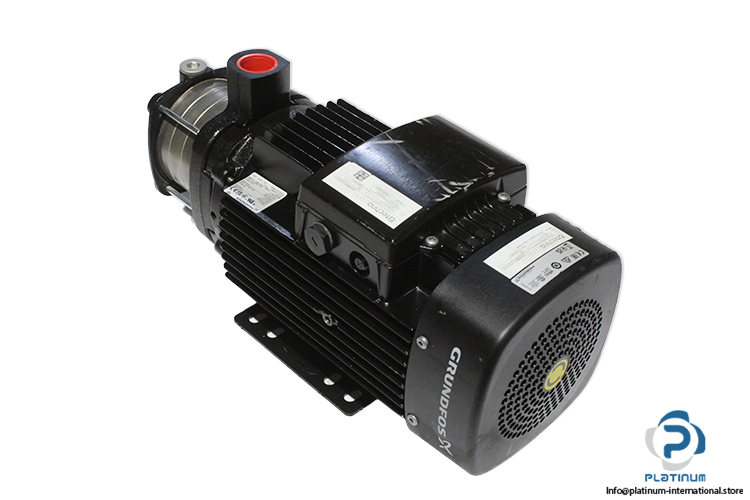

Technotrans Pumpe G-1 5-5 Centrifugal Pump
New
Available on request
The TECHNOTRANS PUMPE G-1 5-5 centrifugal pump with integrated GRUNDFOS ML90HA-O-H3-CML2A motor is designed for efficient industrial fluid circulation, process applications, and continuous-duty operation. Featuring 17 m³/h flow rate, 14.71 m head, IP55 protection, and IE3 premium efficiency.
Rated Flow:
17 m³/h
Rated Head:
14.71 m
Protection Class:
IP55
Efficiency:
IE3
Duty Cycle:
CONT (Continuous Operation)
Standard:
IEC 60034
CentrifugalContinuousCoolingDutyFluidGrundfosIE3IECIndustrialInternatioIP55motorPhasePlatinumProcesspumpTechnotransthreeTransfer
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Mat No | 10061930 |
| SN | 60000162593 |
| Rated Voltage at 50 hz [V] | 380 - 415 |
| Rated Voltage at 60 hz [V] | 440 - 480 |
| Protection class | ip55 |
| Rated flow | 17 m³/h |
| Rated head | 14.71 m |

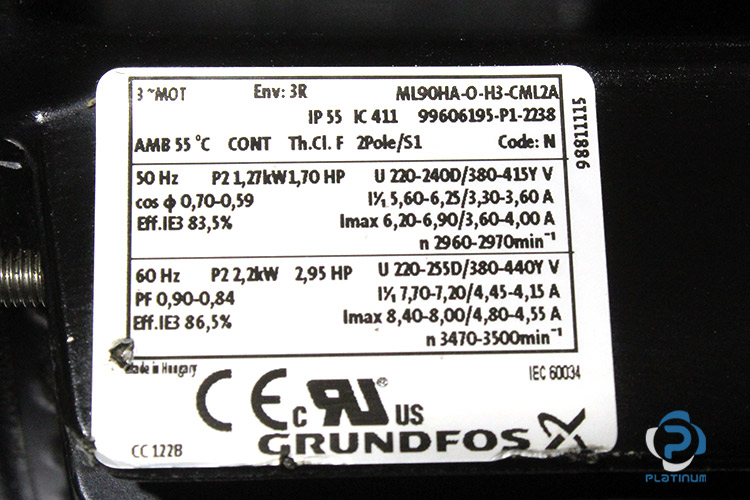

| Attached with | GRUNDFOS ML90HA-O-H3-CML2A standard norm motor |
| Part No, norm motor | 99606195-P1-2238 |
| Ref No, norm motor | 98811115 |
| Rated Power at 50 hz [kW] | 1.27 |
| Rated Voltage at 50 hz [V],motor | 220-240 D/380-415 Y |
| Rated Current at 50 hz [A].motor | 5,60-6,25/3,30-3,60 |
| max Current at 50 hz [A].motor | 6,20-6,90/3,60-4,00 |
| Rated Speed at 50 hz [rpm],motor | 2960 - 2970 |
| Power Factor at 50 hz | 0.70 - 0.59 |
| Efficiency (IE3) at 50 hz | 83.5% |
| Rated Power at 60 hz [kW] | 2.2 |
| Rated Voltage at 60 hz [V].motor | 220-255 D/380-440 Y |
| Rated Current at 60 hz [A],motor | 7,70-7,20/4,45-4,15 |
| max Current at 60 hz [A],motor | 8,40 - 8,00 / 4,80 - 4,55 |
| Rated Speed at 60 hz [rpm] | 3470 - 3500 |
| Power Factor at 60 hz | 0.90 - 0.84 |
| Efficiency (IE3) at 60 hz | 86.5% |
| Enclosure Rating | IP 55 |
| Insulation Class | Th.Cl. F |
| Ambient Temperature | Max 55 c |
| Cooling Method | IC 411 |
| Duty Cycle | CONT (Continuous operation) |
| Coed | N |
| Standard | IEC 60034 |
| Condition | New |
| SKU | 1096992 |
| Weight | 29,9 |
