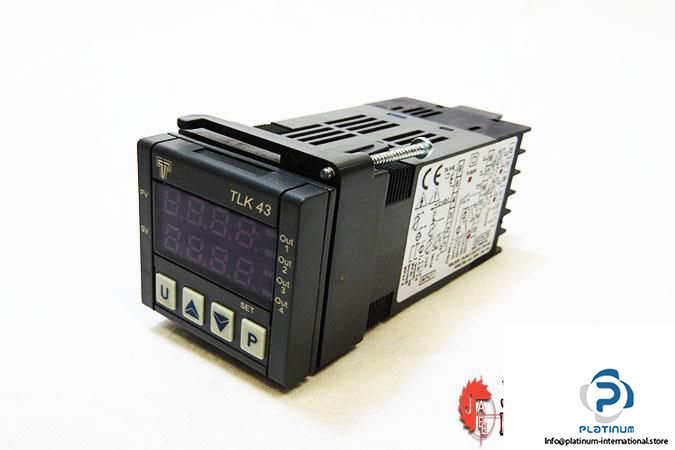

Tecnologic TLK43 Hrrr S Digital Electronic Controller

Manufacturer: TECNOLOGIC

Type: MICROPROCESSOR-BASED DIGITAL ELECTRONIC CONTROLLER

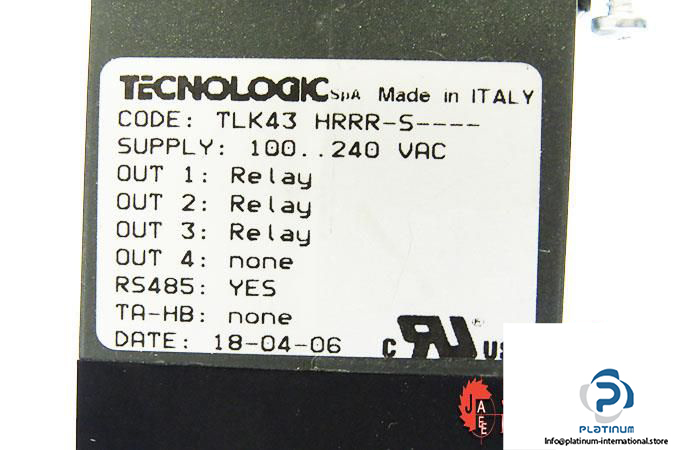

Model: TLK43 HRRR S

POWER SUPPLY: 100… 240 VAC

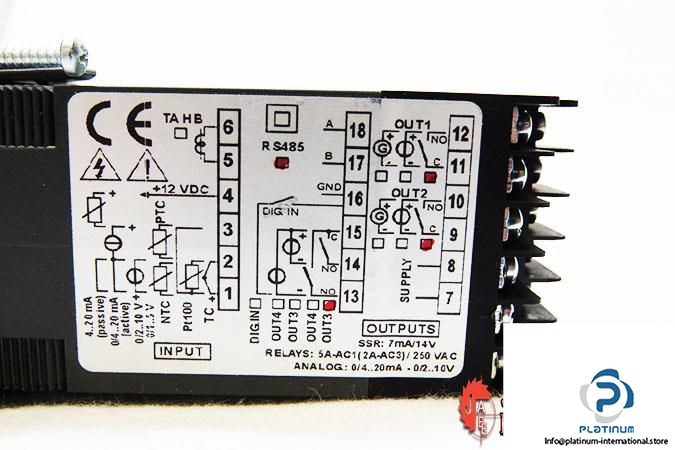

OUTPUT: OUT1: Relay OUT2: Relay OUT3: Relay OUT4: None

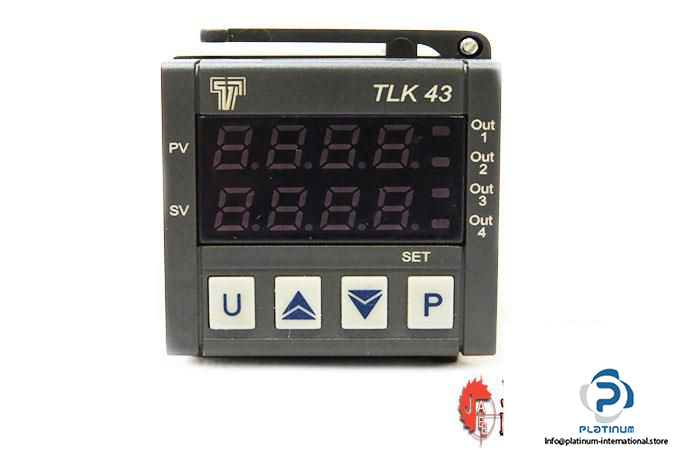

4-digit displays: 1 Red and 1 Green

Frequency: 50/60 Hz

Operating temperature: 0…55°C

Analog outputs: 0/4 … 20 mA or 0/2 … 10 V

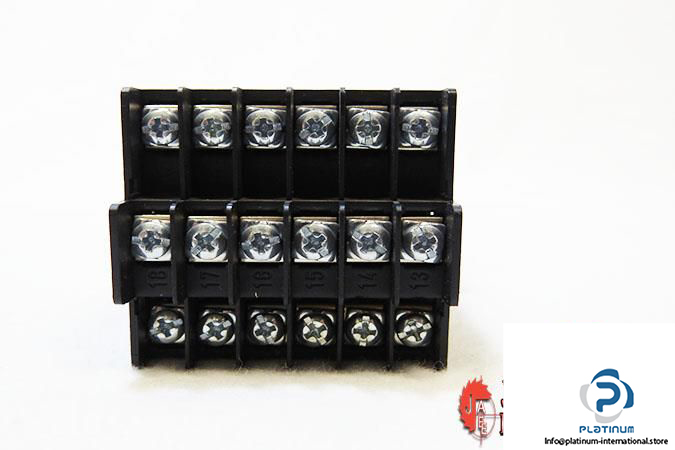

Connections: 2.5 mm² screw terminal block

Accuracy:   0.15%

Protection: IP65

Design (W x H x D): 48 X 48 X 98 mm

Weight: approx. 190 g
