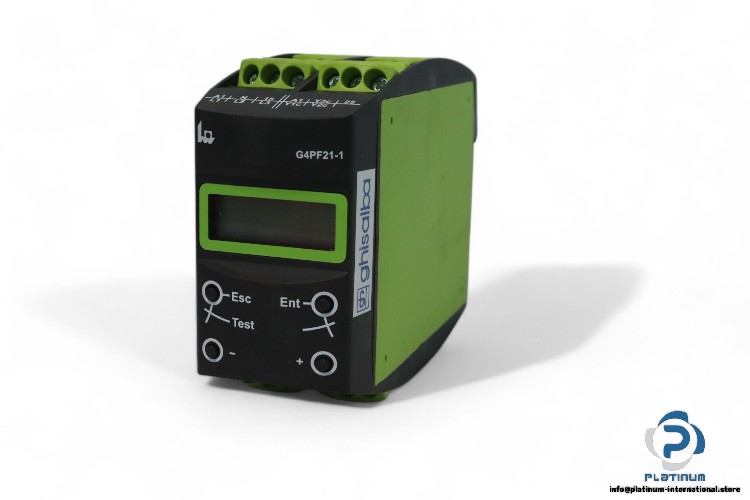

Tele G4PF21-1 Monitoring Relay

Manufacturer: Tele
Type: FREQUENCY- AND VOLTAGE MONITORING
Model: G4PF21-1
Part No.: 2394513

Used for: Voltage monitoring in 3-phase mains Selection between 2-line, 3-line and 4-line mode, 10-minutes average
Measuring Voltage: 230 … 400 V AC
Supply Voltage: 24V DC, 230V AC, 400V AC
Rated surge voltage: 4kV
Rated Current: 5 A @ 250 V AC
Switching capacity: 1250VA (5A / 250V a.c.)
Power Consumption: 4 W
Frequency: 50 Hz
Contact: 1 Normally Closed (NC)
Housing Material: ABS UL 94 V0
Protection Class: IP20
Ambient Temperature: -25 to +55°C
Dimensions (H x W x D): 45 x 90 x 125 mm
No of Connection: 2 change over contacts, 1 for net error indication, 1 for main contactor error indication
