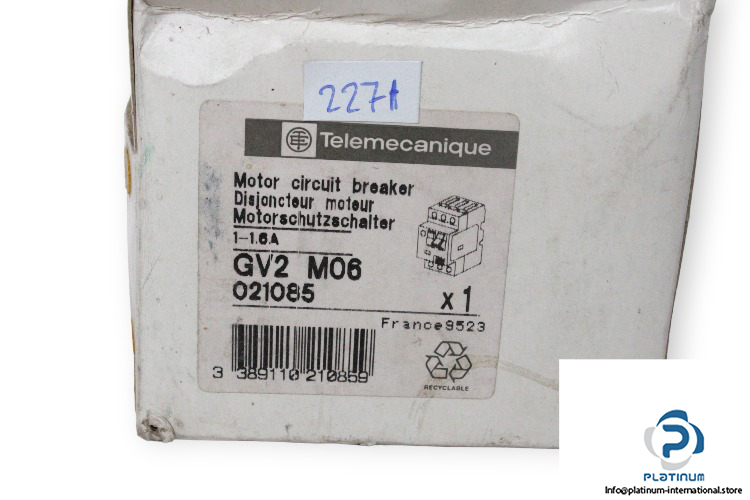

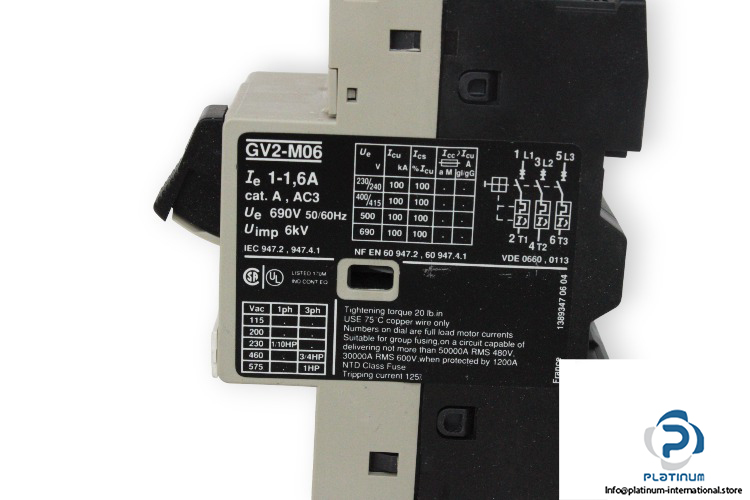

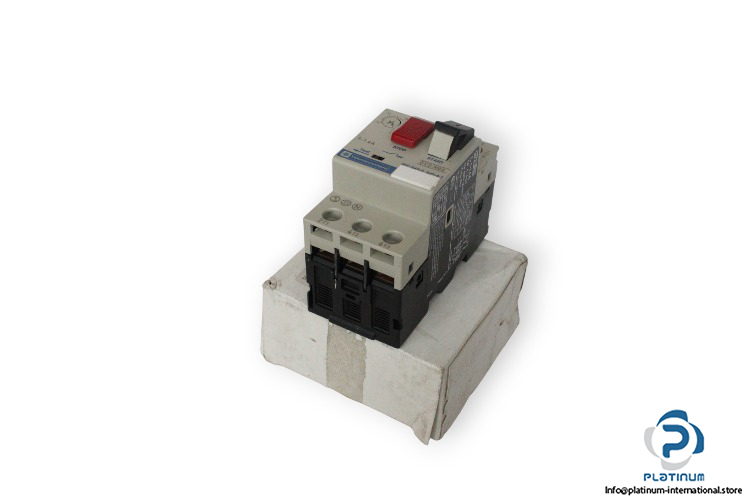

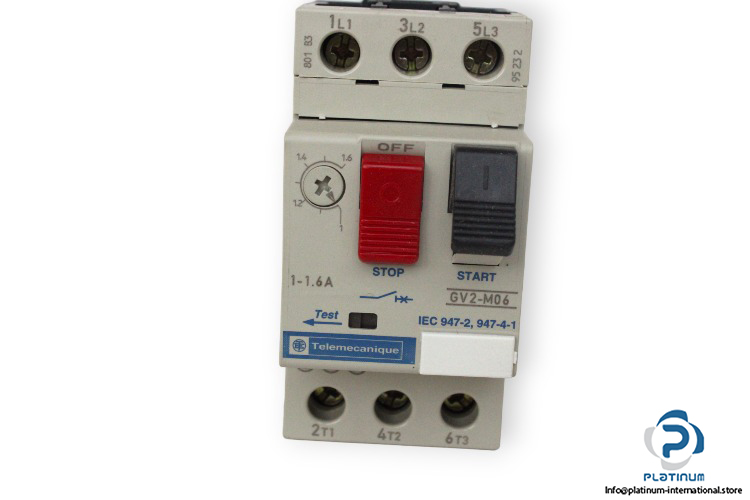

Telemecanique GV2 M06 Motor Starter

Manufacturer: Telemecanique
Type: Motor Starter
Model: GV2-M06

Device application: Motor protection
Rated current range (Ie): 1 … 1.6 A
Conventional free air thermal current (Ith): 1.6 A
Rated impulse with stand voltage (Uimp): 6 kV
Rated operational voltage (Ue): 690 V
Rated insulation voltage (Ui): 690 V AC
Trip unit technology: Thermal-magnetic
No. of Poles: 3 P
Frequency: 50/60 Hz
Standard: IEC 947-2,947-4-1
Fixing mode: 35 mm symmetrical DIN rail
Rated Service Short-Circuit Breaking Capacity (Ics):
(400 V AC) 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(400 V AC) 100 kA
Motor power: 0.75 kW at 690 V AC 50/60 Hz
Control type: Push-button
Degree of protection: IP20
Ambient air temperature for operation: -20 … 60 °C
Dimensions: 45 x 89 x 78.5 mm
