Telemecanique LADS2 Time Delay Contact Block
New
In stock1 unitReady to ship
Time Delay Contact Block
TELEMECANIQUE LADS2 on-delay auxiliary contact block, 1 NO + 1 NC, 1“30 s timing range, front-mounted design for TeSys Deca and TeSys F contactors.accessoryAuxiliaryBlockComponentContactContactorControlDecaDelayDeltaIndustrialLADS2ModuleOnStarStarterTelemecaniqueTeSysTimeTimer
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

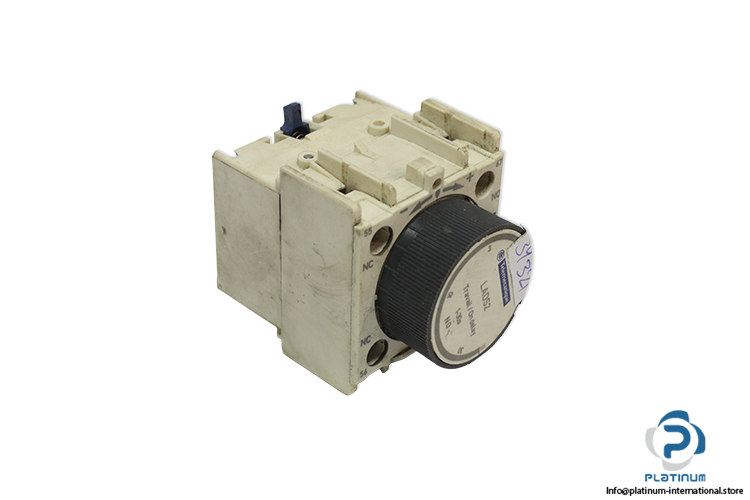

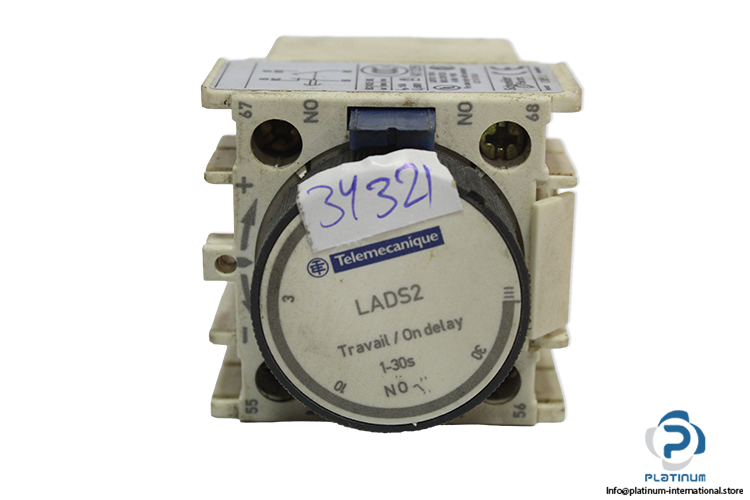

TELEMECANIQUE LADS2 Time Delay Contact Block
The TELEMECANIQUE LADS2 is a front-mounted time delay auxiliary contact block designed for TeSys Deca and TeSys F contactors. It provides on-delay timing control and is commonly used in star-delta starter applications, ensuring reliable and precise delayed switching performance.
Manufacturer: TELEMECANIQUE
Type: Time Delay Contact Block
Model: LADS2

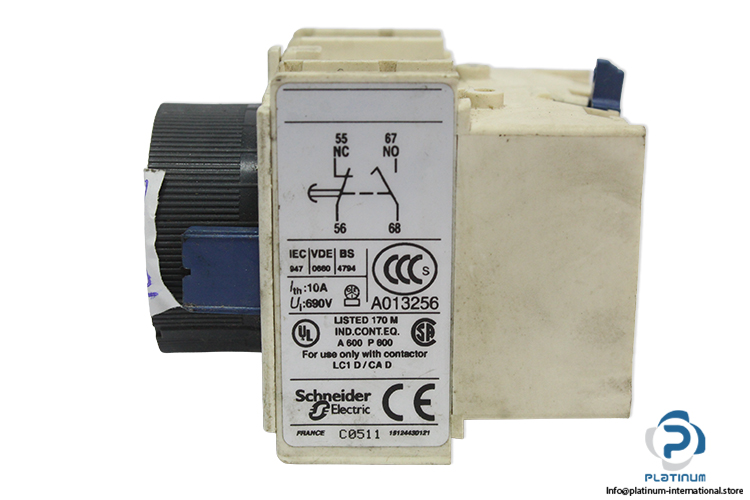

Code: C0511 / A013259
[Ie] Rated Operational Current:
6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] Rated Insulation Voltage:
690 V conforming to IEC 60947-5-1
600 V conforming to UL 60947-5-1
600 V conforming to CSA C22.2 No 60947-5-1
Standards:
EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
| Range | TeSys, TeSys Deca |
| Product Name | TeSys Deca |
| Product Or Component Type | Time Delay Auxiliary Contact Block |
| Range Compatibility | TeSys Deca CAD, TeSys Deca LC1D, TeSys F LC1F, TeSys F CR1F |
| Device Application | Star Delta Starter |
| Mounting Location | Front |
| Pole Contact Composition | 1 NO + 1 NC |
| Contacts Operation | Time Delay |
| Timer Type | On Delay |
| Time Delay Range | 1...30 s |
| [Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| EN 50012 IEC 60335-1 | Clause 30.2 |
| IEC 60335-2-40 | Annex JJ |
| UL 60335-2-40 | Annex JJ |
| Height | 48 mm |
| Width | 44 mm |
| Depth | 61 mm |
| Colour | Dark Grey |
| Ambient Air Temperature For Operation | -40 / 70 °C |
| Operating Altitude | 3000 m |
