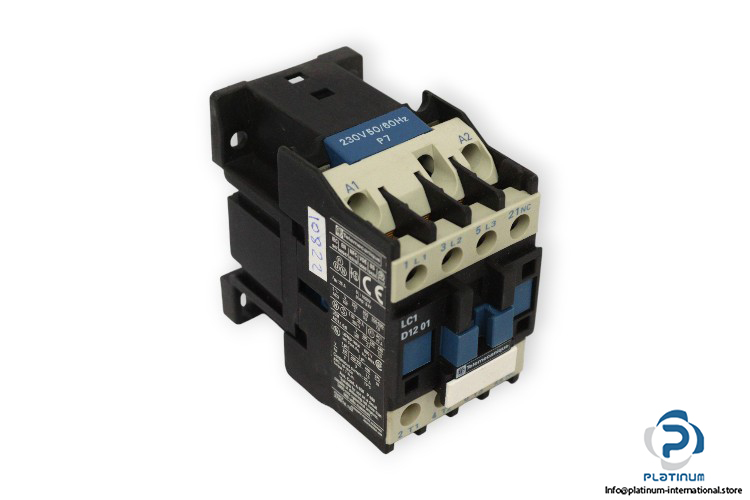

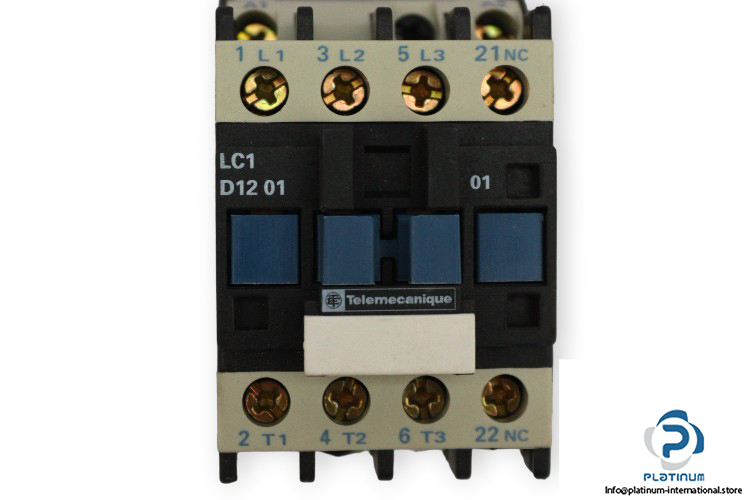

Telemecanique LC1D12 01P7 Contactor

Manufacture: Telemecanique
Type: Contactor
Model: LC1D12 01P7

No. of poles: 3

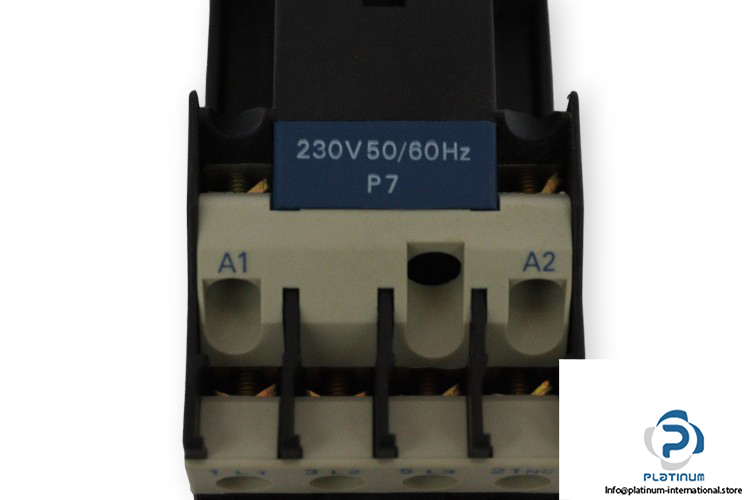

Coil voltage: 230 V AC
Frequency: 50/60 Hz
Auxiliary Contact: 1 Normally closed

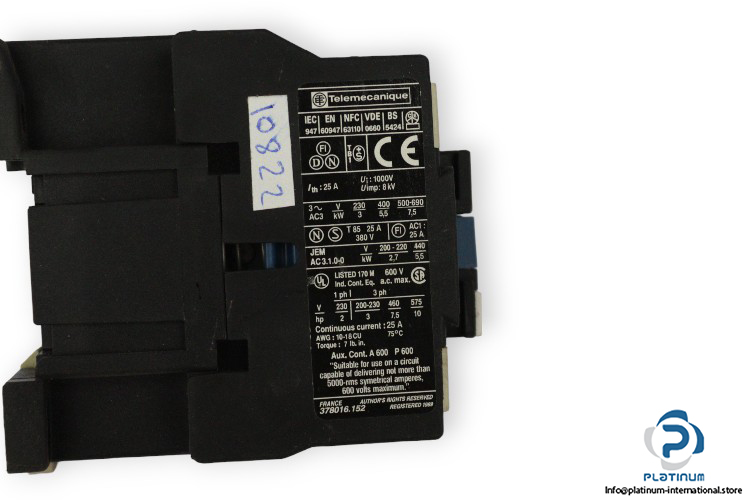

Rated insulation voltage Ui: 1000 V
Rated impulse withstand voltage Uimp: 8 kV
Conventional free air thermal current Ith: 25 A
Continuous current: 25 A
Rated operational power (Kw) Pe: 5.5 kW @400V (AC-3)
Max. temperature: +75 °C
