Schneider LC1D12BL CONTACTOR
Used
In stock1 unitReady to ship

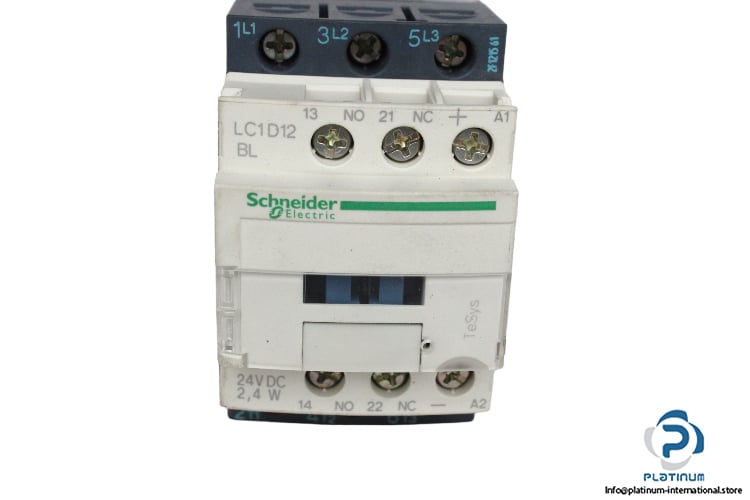

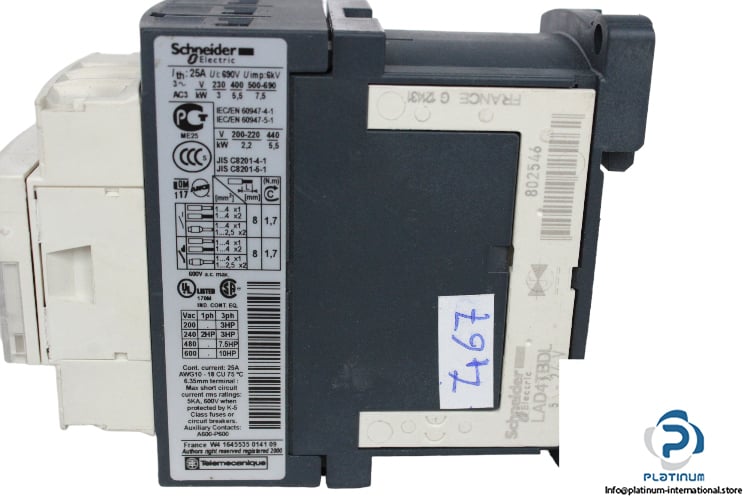

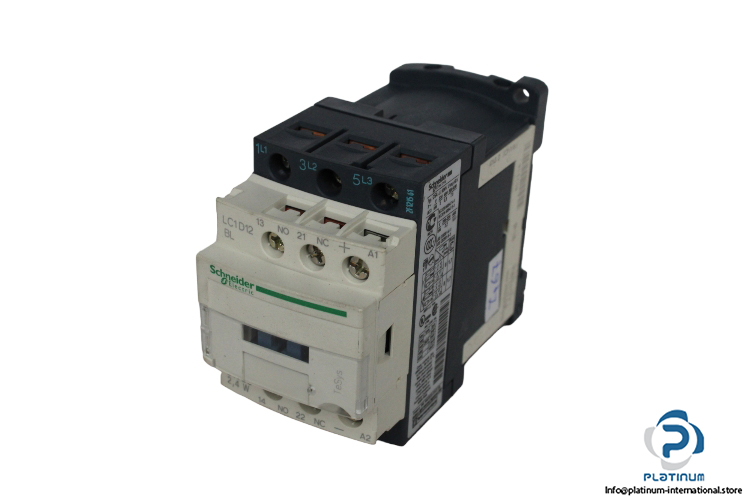

Contactor Schneider 3-pole contactor with 24 V DC coil, 12 A AC-3 current, and LAD4TBDL bi-directional limiting diode for industrial motor control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Short Name | LC1D |
| Coil Voltage | 24 V DC |
| Coil Inrush / Hold Power | 2.4 W |
| Rated Operational Voltage | 690 V AC |
| Rated Operational Current | AC-3 12 A |
| Rated Thermal Current | 25 A |
| Frequency | 50 … 60 Hz |
| Power AC-3 | 400VAC 5.5 kW |
| Horse Power | 480VAC 7.5 HP |
| Power Dissipation | 0.36 W |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Poles No. | 3-Pole |
| Auxiliary Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Main Contact | 3 Normally Open (NO) |
| Protection Class | IP20 |
| Ambient Temperature | -40 … 60 °C |
| Dimensions | 96 x 45 x 95 mm |
| Attached with | TELEMECANIQUE LAD4TBDL Contactor Bi-Directional Limiting Diode |
| Condition | Used |
| SKU | 1031264 |
| Weight | 0,54 |
