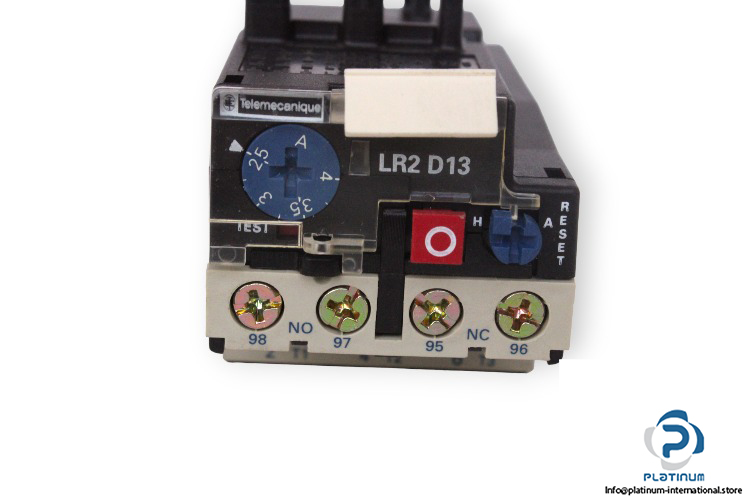

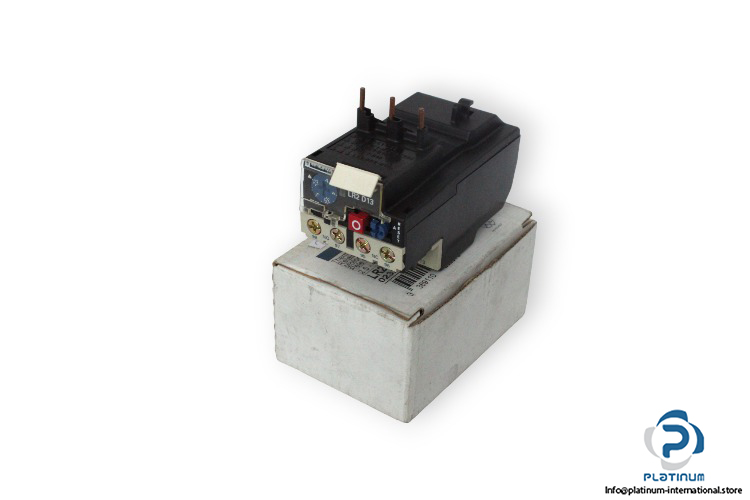

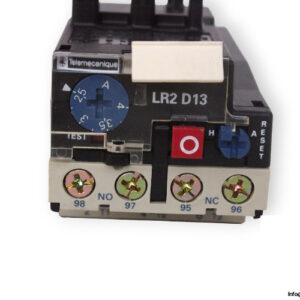

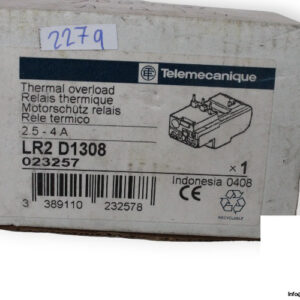

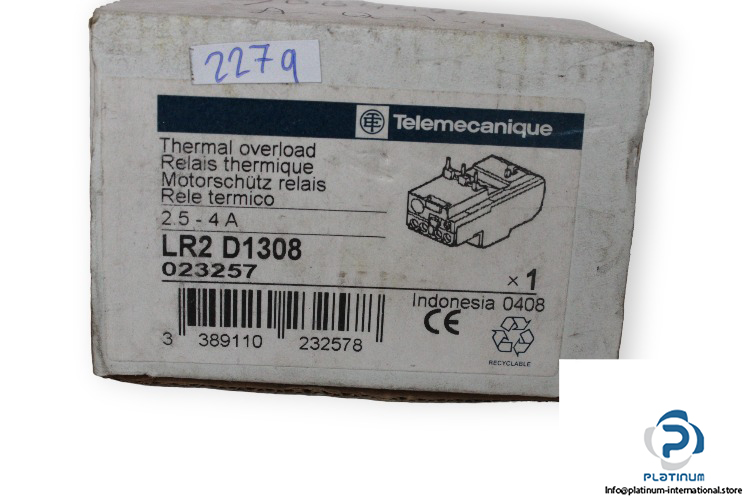

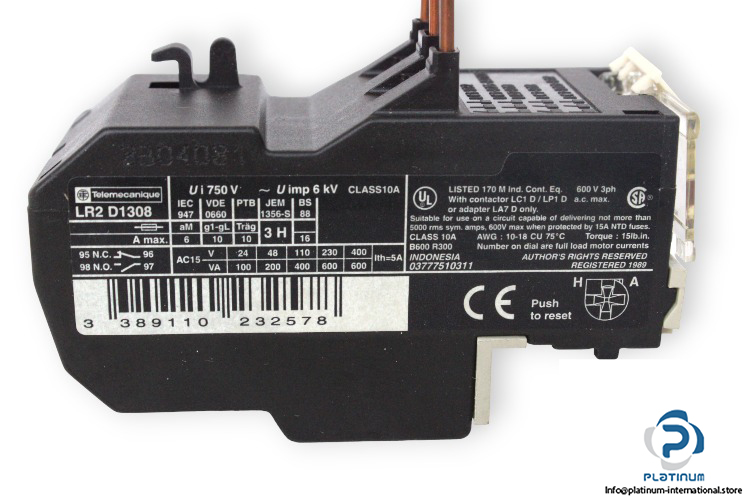

Telemecanique LR2 D1208 Thermal Overload Relay

Manufacturer: Telemecanique

Type: Thermal Overload Relay

Model: LR2 D1308

Part No.: 023257

Relay application: Motor protection

Rated insulation voltage (Ui): 750 V AC

Rated operational voltage (Ue): 690 V AC

Rated impulse withstand voltage (Uimp): 6  KV

Rated current range: 2.5 … 4 A

Frequency: 50/60 Hz

Thermal rated current (Ith): 5 A

Surge withstand: 6 kV

Tripping threshold: 1.14 +/-0.06

degree of protection: IP2X

Tightening torque: 1.7 N.m

Contact: NO, NC

Ambient air temperature for operation: -20 … 60 °C

Dimensions: 121 x 75 x 100 mm
