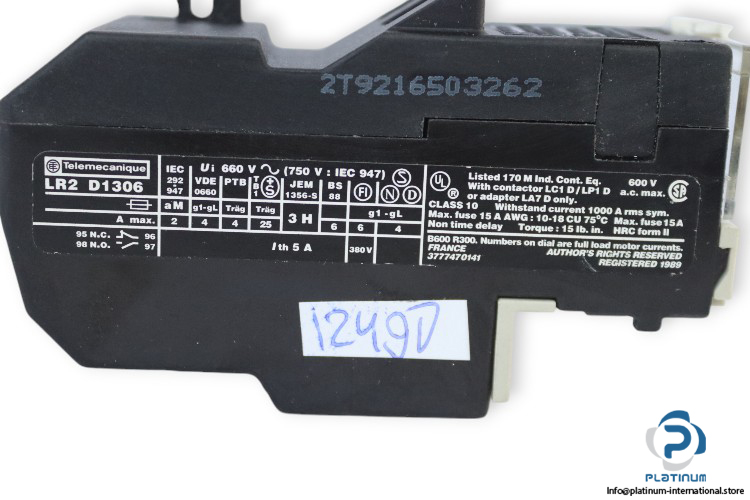

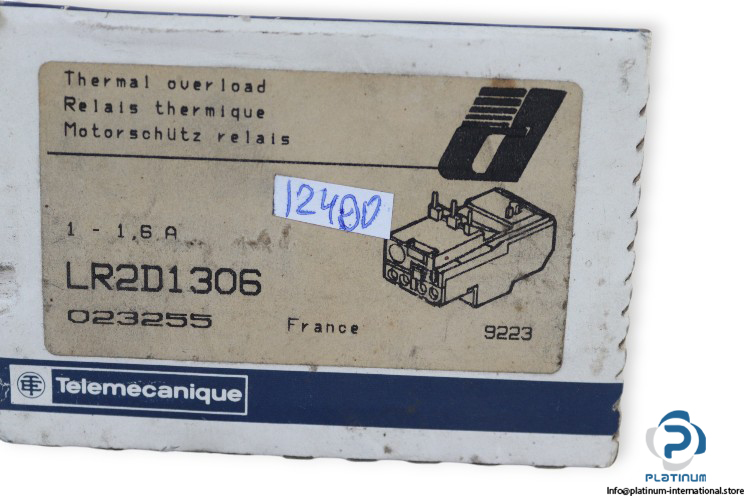

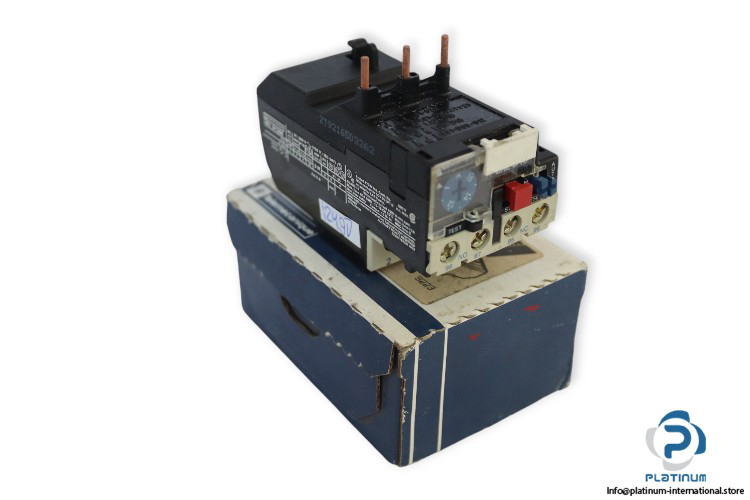

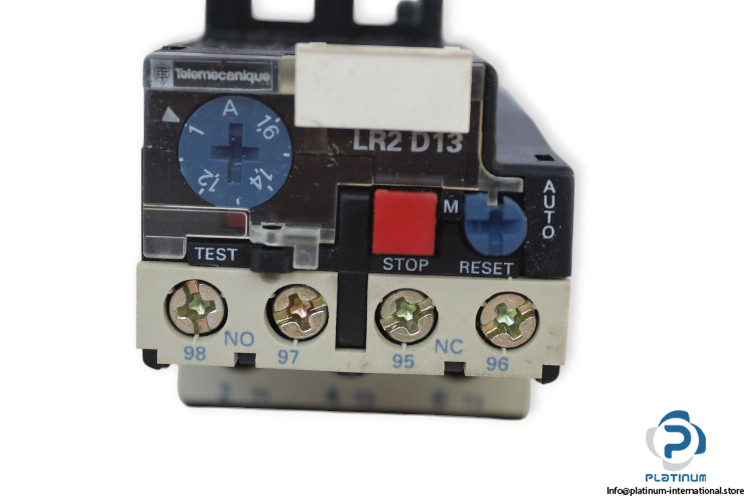

Telemecanique LR2 D1306 Thermal Overload Relay

Manufacturer: Telemecanique
Type: Thermal Overload Relay
Model: LR2D1306
Part No.: 023255

Range of product: TeSys D
Device short name: LR2D
Relay application: Motor protection
Rated insulation voltage (Ui): 660 V AC
Rated operational voltage: 690 V AC
Rated current range: 1 … 1.6 A
Thermal rated current (Ith): 5 A
Network frequency: 50/60 Hz
Surge withstand: 6 kV
Degree of protection: IP2X
Tightening torque: 1.7 N.m
Contact: 1NO, 1NC
Ambient air temperature for operation: -20 … 60°C
Dimensions: 121 x 75 x 100 mm
