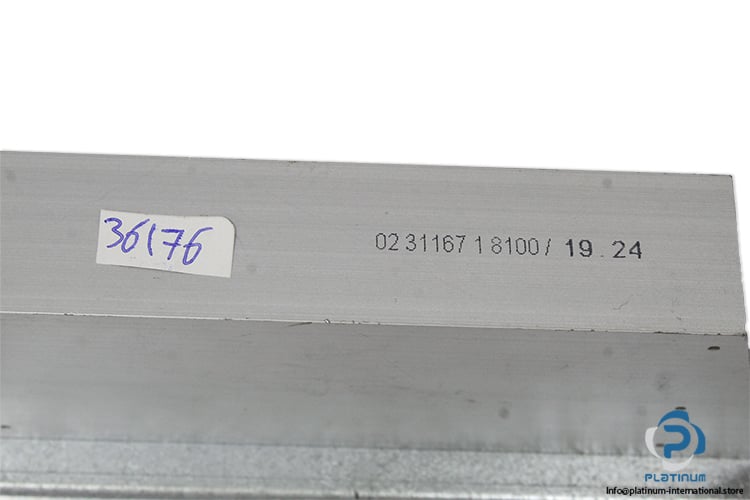

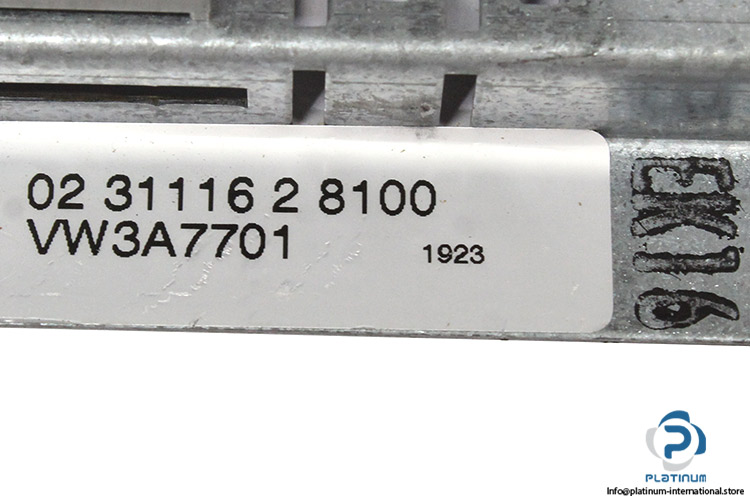

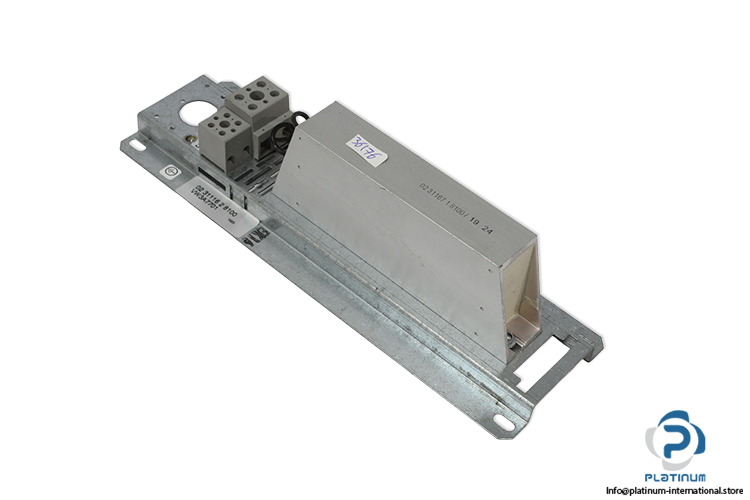

Telemecanique VW3A7701 Braking Resistor Without Cover
Braking Resistor
Telemecanique Schneider VW3 A7 701 braking resistor, 100 Ohms, 50 W, IP20, designed for Altivar variable speed drives with integrated thermal protection.Telemecanique Schneider VW3 A7 701 Braking Resistor
The Telemecanique Schneider VW3 A7 701 is a braking resistor designed for Altivar variable speed drives. It ensures efficient energy dissipation during motor braking, providing stable drive performance and reliable thermal protection in industrial automation systems.
Manufacturer: Telemecanique Schneider
Type: Braking Resistor
Model: VW3 A7 701
Code: 02 3111628100 / 02 3116718100 / 19 24 / 1923
Range: Altivar
Average Power Available:
50 W at 50 °C
58 W at 40 °C
Electrical Connection:
Terminal, connection capacity ‰¤ 1.5 mm² / AWG 16 (temperature control switch)
Terminal, connection capacity ‰¤ 4 mm² / AWG 28 (drive)
Dimensions:
Compatibility
Range Compatibility:
Altivar 312
Altivar 61
Altivar 312 Solar
Altivar 32
Altivar 31C
Product Compatibility:
ATV31C018M2
ATV31C037M2
ATV31C037N4
ATV31C055M2
ATV31C055N4
ATV31C075M2
ATV31C075N4
ATV31CU11M2
ATV31CU11N4
ATV31CU15M2
ATV31CU15N4
ATV31CU22N4
Variable Speed Drive ATV310 at 1.5 kW
Variable Speed Drive ATV310 at 2.2 kW
ATV31CU30N4
ATV31CU40N4
| Resistance | 100 Ohms |
| Power | 50 W |
| Protection Class | IP20 |
| Temperature Controlled Switch Contact Resistance | 60 µOhm |
| Protection Type | Thermal protection via drive or temperature control switch at 120 °C |
| Width | 95 mm |
| Height | 293 mm |
| Depth | 95 mm |
| Ambient Air Temperature For Operation | 0 / 50 °C |
