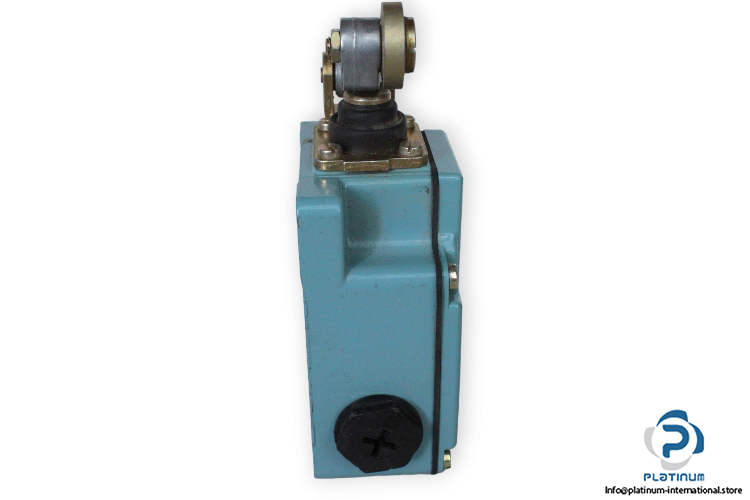

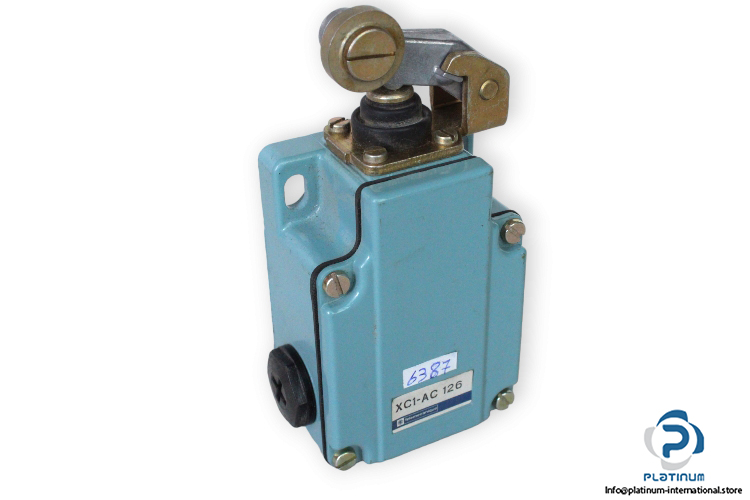

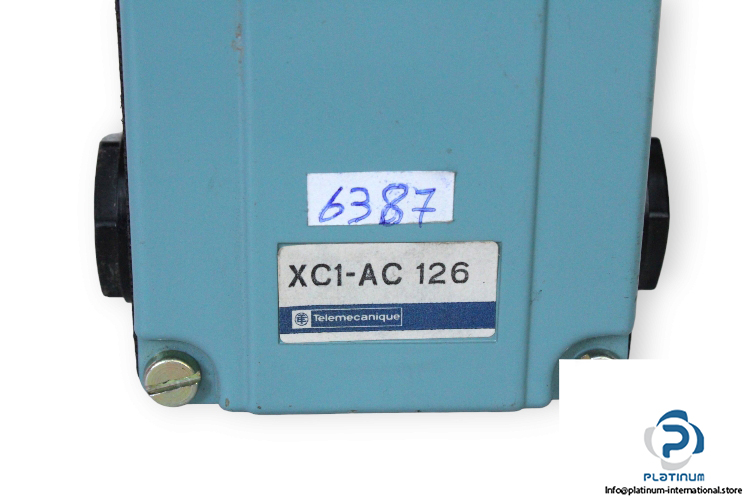

Telemecanique XC1-AC 126 Limit Switch

Manufacturer: Telemecanique
Type: Limit Switch
Model: XC1-AC 126

Output Configuration: 1NC+1 NO
Contact Operation: Slow-break
body type: Fixed
Head type: Plunger head
Material: Metal
Movement of operating head: Linear
Type of operator: Spring return roller lever metal –
Switch actuation: By 30° cam
Type of approach: Lateral approach, 2 directions
conventional enclosed thermal current: 10 A
Connection: Screw-clamp terminals, clamping capacity: 1 x 0.5…1 x 2.5 mm²
Protection Class: IP65
Ambient Operating Temperature: -25 … 70 °C
Dimensions: 77 X 157 X 44 mm
