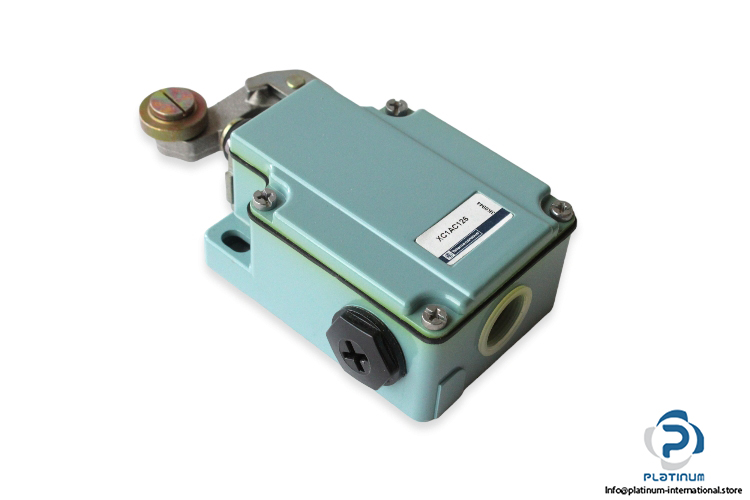

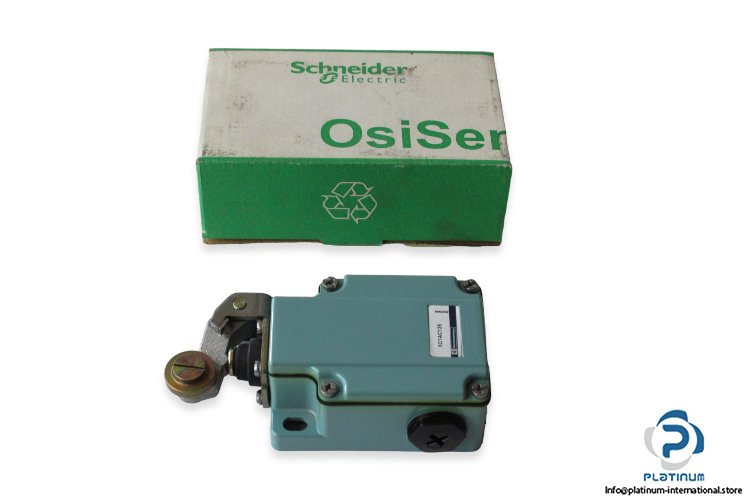

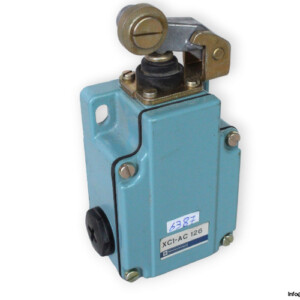

Telemecanique XC1AC126 Limit Switch

Manufacturer: TELEMECANIQUE

Type: Limit Switch

Device short name: XC1AC

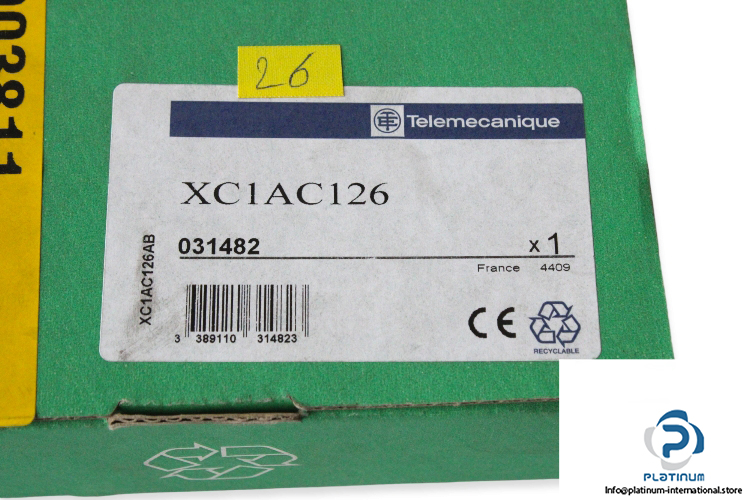

Model: XC1AC126

part no.: 031482



Output Configuration: 1NC+1 NO

Contact Operation: Slow-break

body type: Fixed

Head type: Plunger head

Material: Metal

Movement of operating head: Linear

Type of operator: Spring return roller lever metal –

Switch actuation: By 30° cam

Type of approach: Lateral approach, 2 directions

conventional enclosed thermal current: 10 A

Connection: Screw-clamp terminals, clamping capacity: 1 x 0.5…1 x 2.5 mm²

Protection Class: IP65

Ambient Operating Temperature: -25 … 70 °C

Dimensions: 77 X 157 X 44 mm
