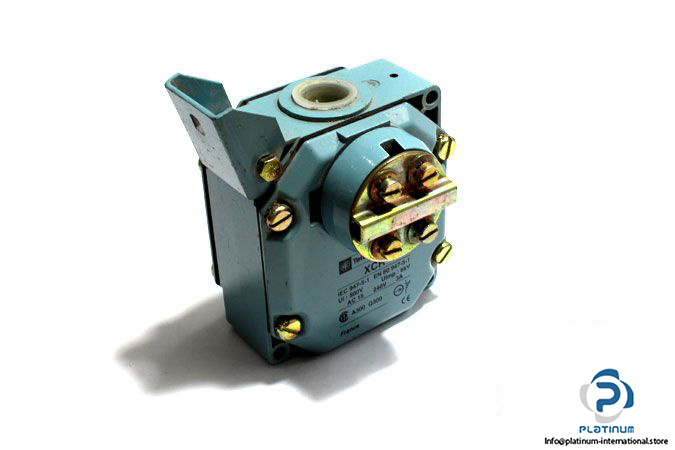

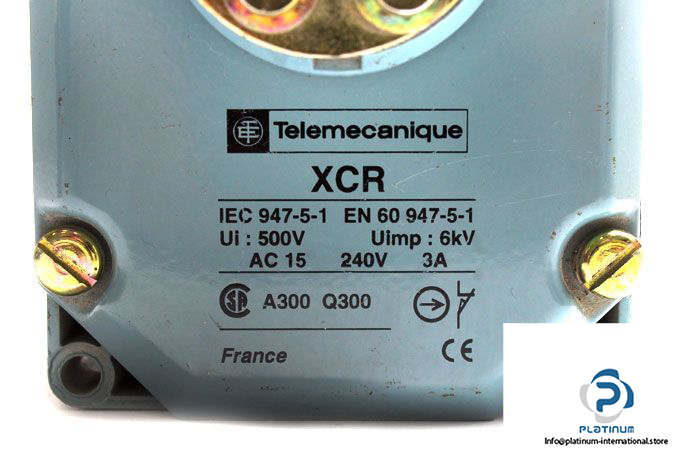

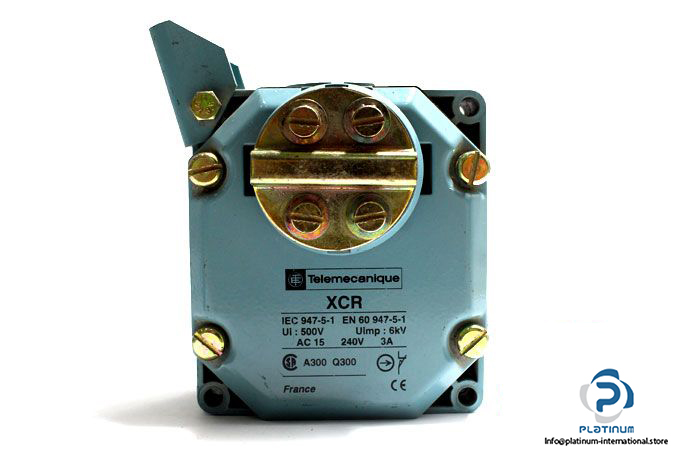

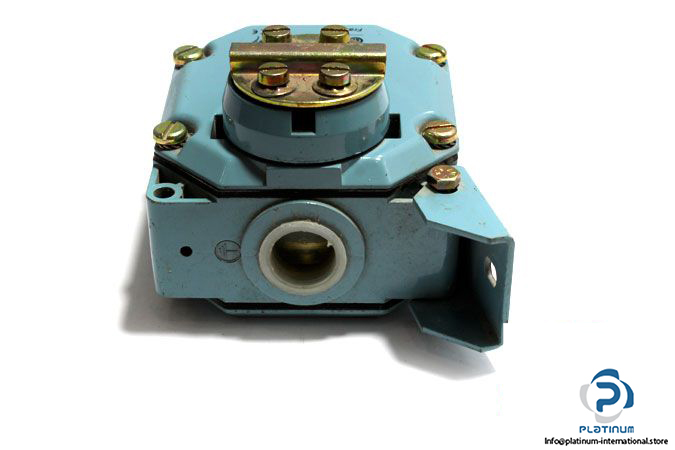

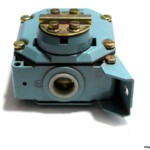

Telemecanique XCRB11 Metal Spring Return Rotary Limit Switch

Manufacturer: Telemecanique

Type: Metal Spring Return Rotary Limit Switch

Device Short Name: XCR

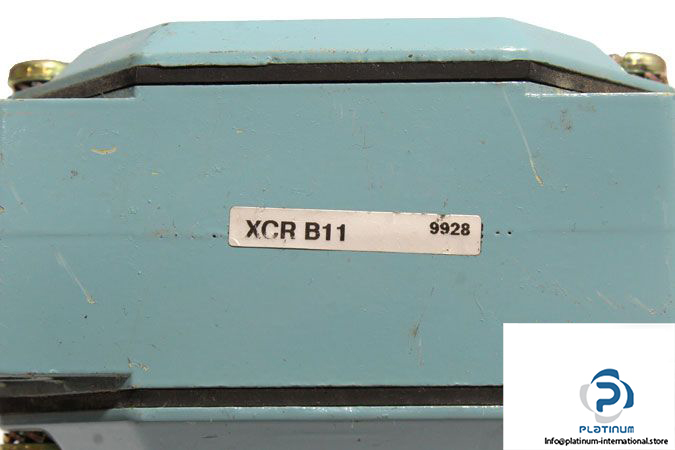

Model: XCRB11

Application: For hoisting and mechanical handling applications

Output Configuration: 2 Normally open + 2 Normally closed

Contact Operation: Snap action

Actuator Type: Spring return rod lever metal square rod 6 mm

Positive Opening Minimum Torque: 0.75 N.m

Minimum Torque for Tripping: 0.6 N.m

Switching Voltage max.: 240 V AC

Contact Current max.: 3 A

Connection: 1 entry tapped for Pg 13.5 cable gland

Ambient Operating Temperature: -25 … 70°C

Body Material: Zinc Alloy

Dimensions: 85 x 75 x 95 mm

Weight: 0.925 Kg
