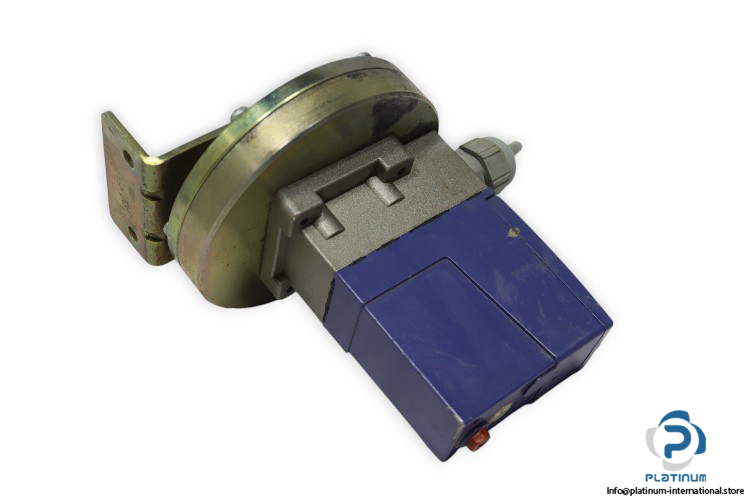

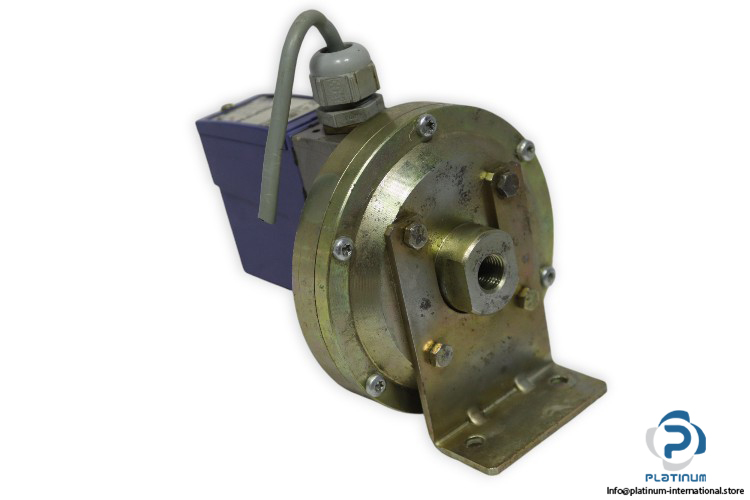

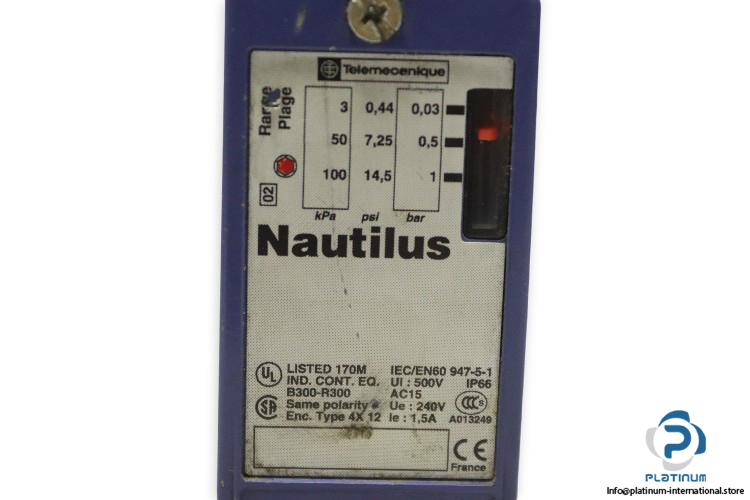

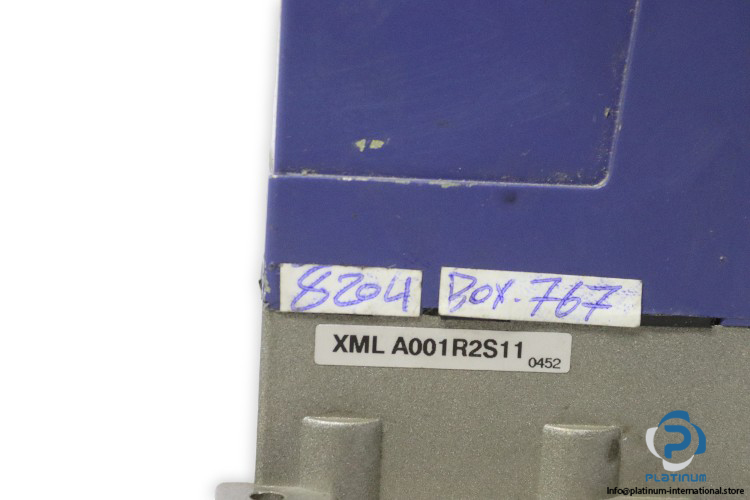

Telemecanique XML A001R2S11 Pressure Switch

Manufacturer: TELEMECANIQUE
Type: Pressure Switch
Range: XML
Model: XMLA001R2S11

Pressure Actuator: Piston
Measuring Range: 0.03 … 1 bar
Maximum permissible accidental pressure: 2.25 bar
Auxiliary contacts operation: Snap action
Operating Voltage (V): 240 V
rated current: 3 A
Operating Temperature Range: 0 … +70 °C
Fluid connection type: G 1/4 (female)
Electrical connection: Screw-clamps terminals, 1 x 0.5…2 x 2.5 mm²
Contacts type and composition: 1 C/O
Dimensions: 162 x 110 x 110 mm
