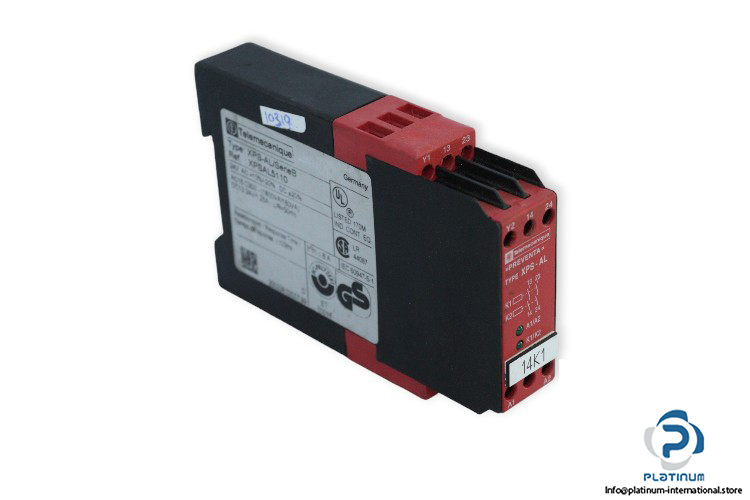

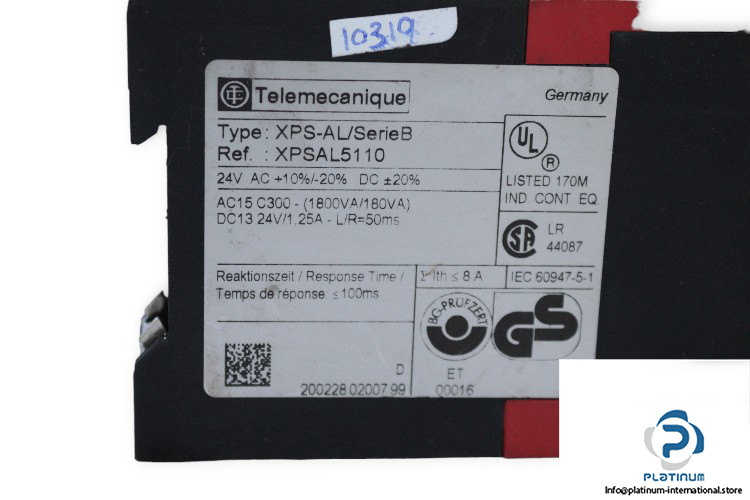

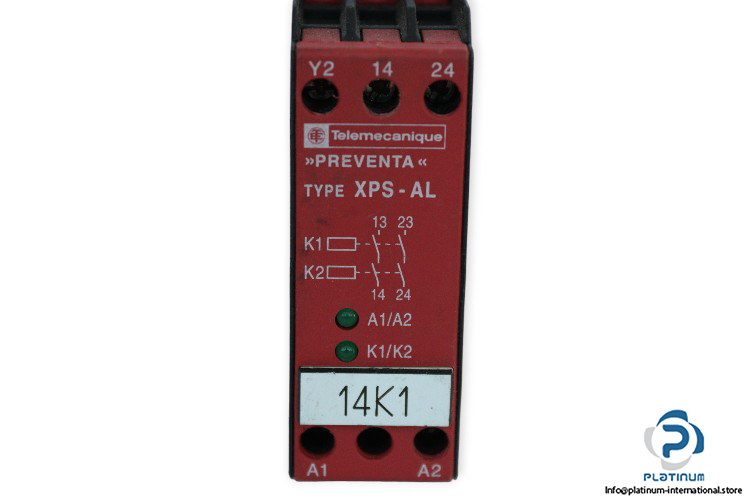

Telemecanique XPSAL5110 Safety Relay

Manufacturer: Telemecanique
Type: Safety Relay
Model: XPS-AL/SerieB
Reference: XPSAL5110

Supply Voltage: 24 V AC/DC
Rated Insulation Voltage: 300 V
Contact Configuration: 2 Normally Open (2 Channel)
Contact Voltage: 24 V DC
Contact Current: 1.25 A
Power: 1800 VA/180VA
Thermal Current: 8 A
Non Time Delay Output: 50 ms
Response Time: 100 ms
Degree of protection: IP20 (Terminal), IP40 (Housing)
Operating Temperature: -10 … 55 °C
Dimension: 78 X 22.5 X 120 mm
