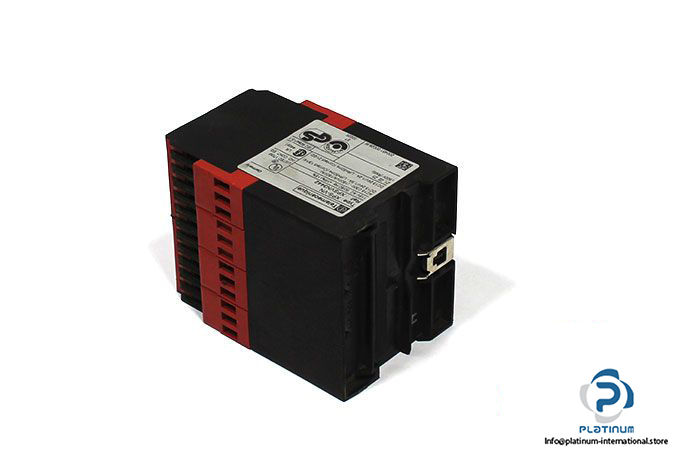

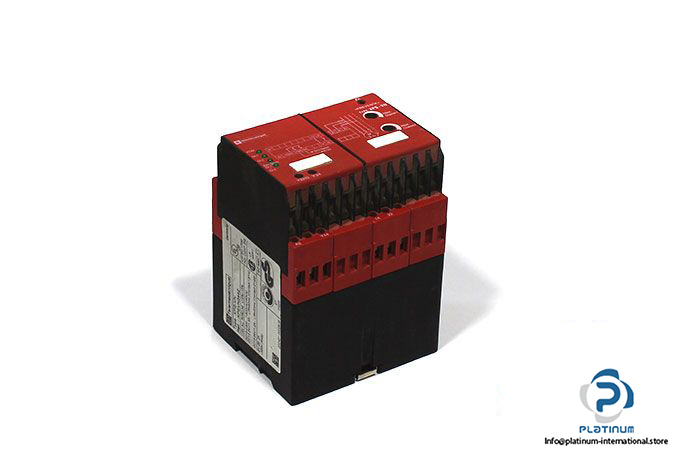

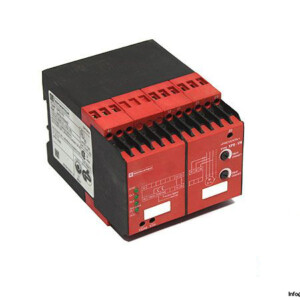

Telemecanique XPSVN3442 Safety Relay

Manufacturer: TELEMECANIQUE

Type: Safety Relay

Model: XPS-VN

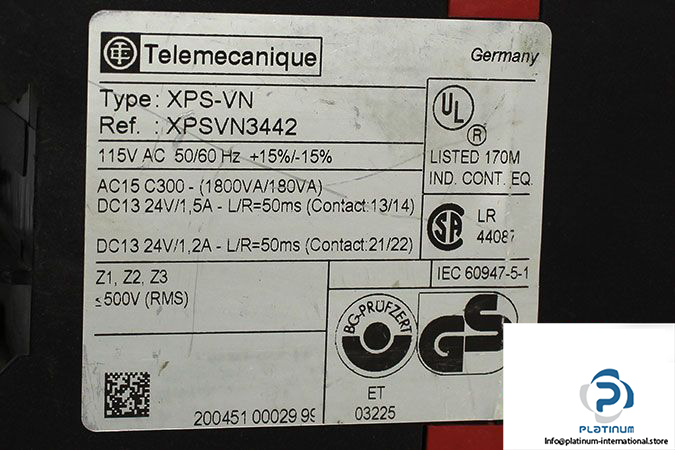

Part No: XPSVN3442

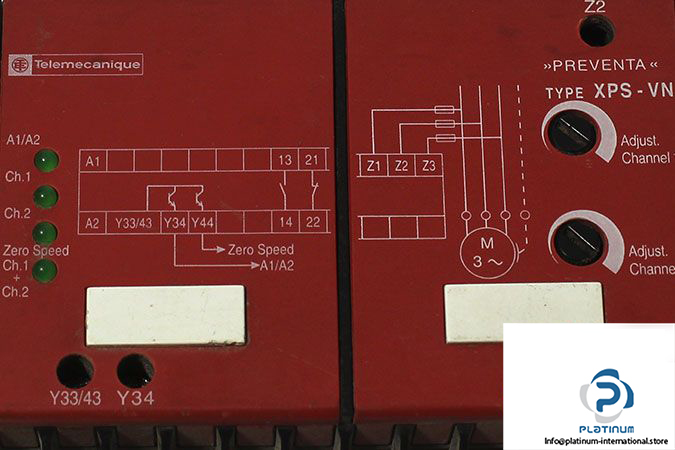

Functions: Detection of Motor Zero Speed by Measuring The Remnant Voltage in The Stator Windings



Range of Product: PREVENTA

Supply Voltage: 115 V AC

Frequency: 50 … 60 Hz

Detection Threshold: 0.01 … 0.1 (adjustable)

Number of Circuits Safety: 1 Normally Open (1NO) + 1 Normally Closed (1NC)

Number of Safety Circuits Signaling: 2 Solid-State for Messages to PLC

Electrical Connection: Screw Clamp Terminal

LED Display: 4 LEDs

Degree of Protection Terminals: IP20

Degree of Protection Housing: IP50

Operating Temperature: -10 … 55 °C

Dimensions: 90 x 120.8 x 78.3 mm

Weight: 0.81 kg
