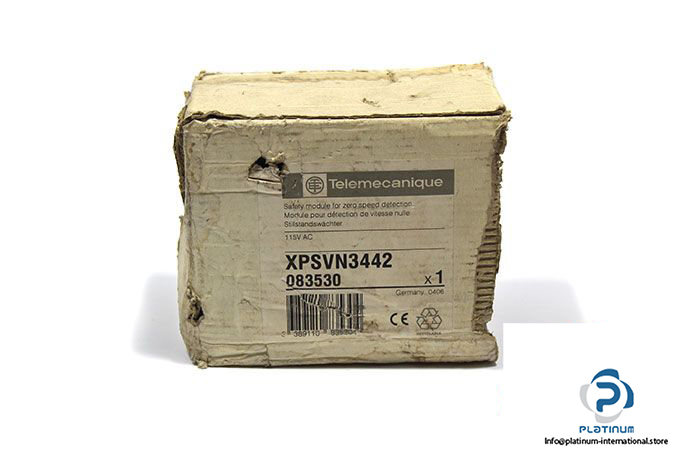

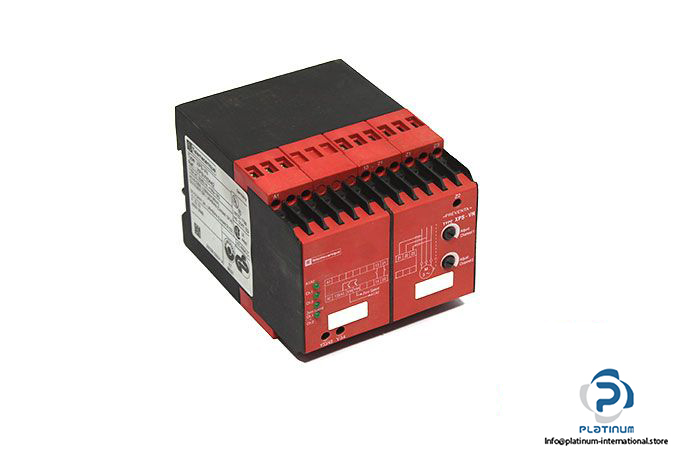

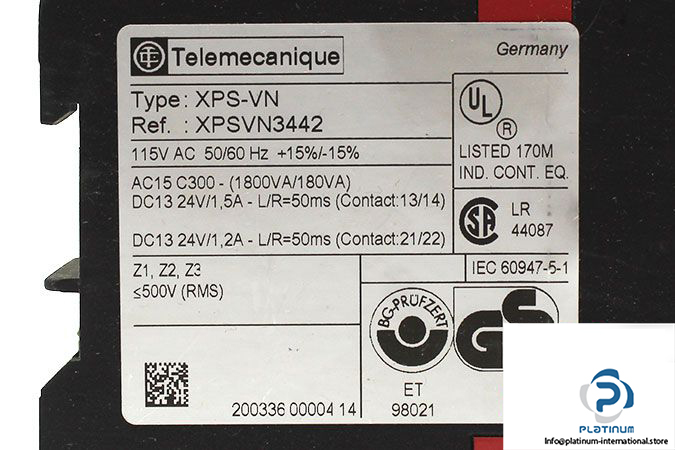

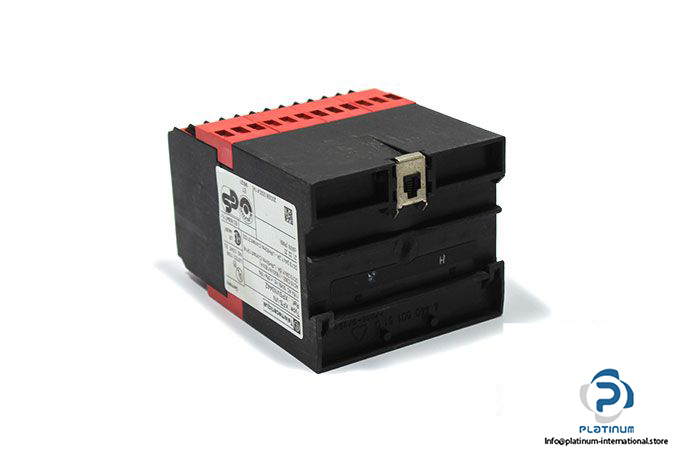

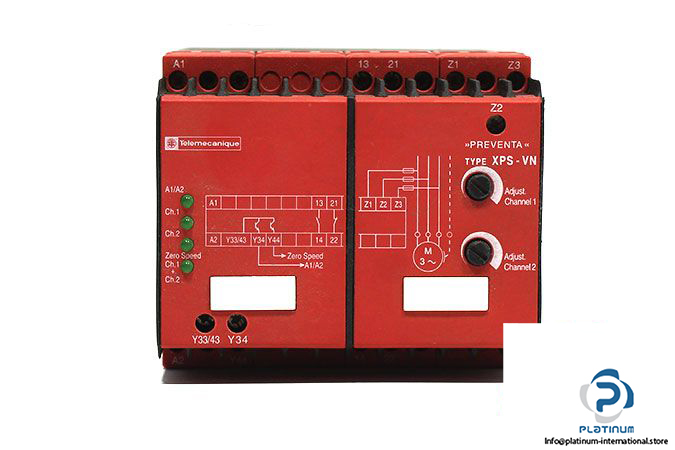

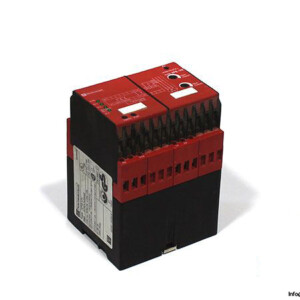

Telemecanique XPSVN3442 Safety Relay
New
In stock1 unitReady to ship
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: TELEMECANIQUE
Type: Safety Relay
Model: XPS-VN
Part No: XPSVN3442
Functions: Detection of Motor Zero Speed by Measuring The Remnant Voltage in The Stator Windings
Range of Product: PREVENTA
Supply Voltage: 115 V AC
Frequency: 50 … 60 Hz
Detection Threshold: 0.01 … 0.1 (adjustable)
Number of Circuits Safety: 1 Normally Open (1NO) + 1 Normally Closed (1NC)
Number of Safety Circuits Signaling: 2 Solid-State for Messages to PLC
Electrical Connection: Screw Clamp Terminal
LED Display: 4 LEDs
Degree of Protection Terminals: IP20
Degree of Protection Housing: IP50
Operating Temperature: -10 … 55 °C
Dimensions: 90 x 120.8 x 78.3 mm
Weight: 0.81 kg
