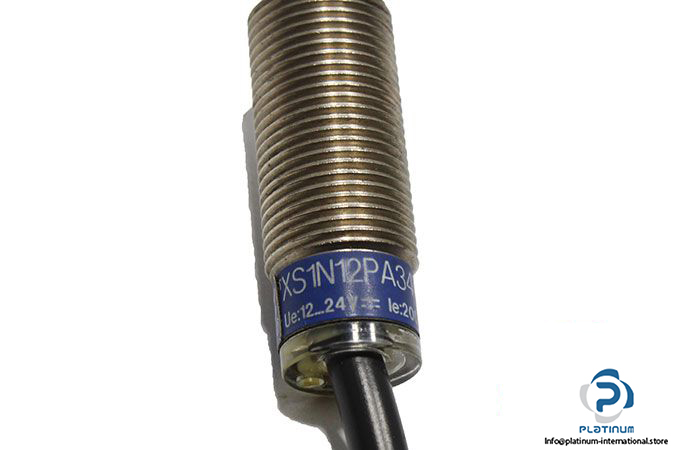

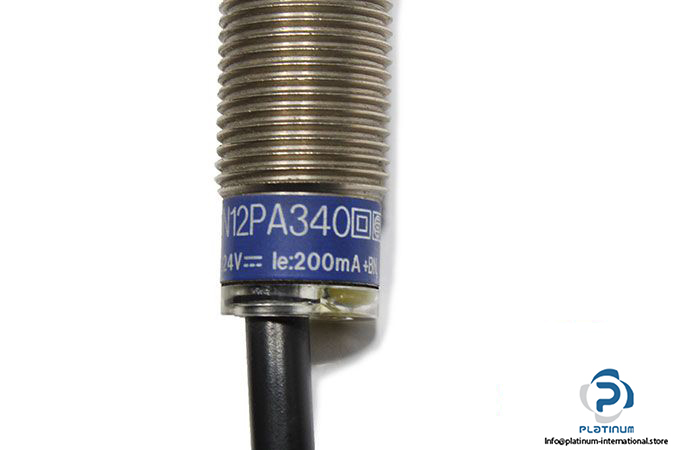

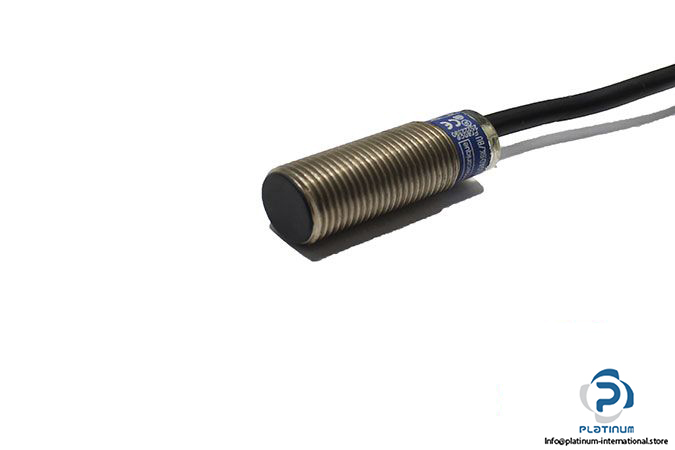

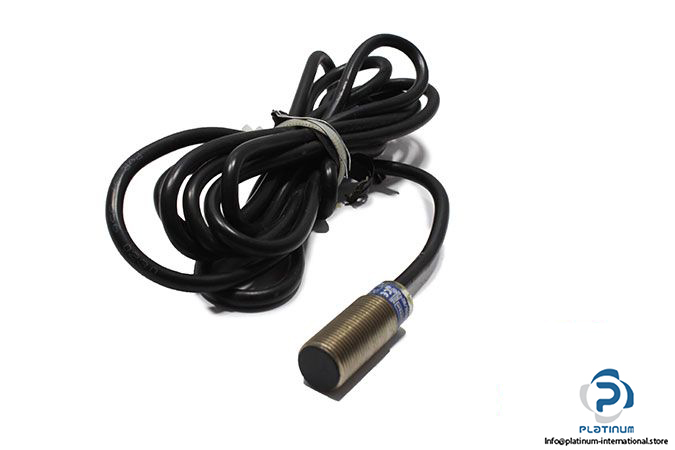

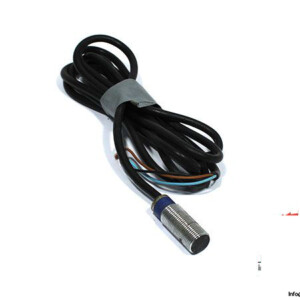

Telemecanique XS1-N12PA340 Inductive Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: Inductive Sensor

Model: XS1N12PA340

Sensing Range: 2 mm

Operating Voltage: 12 … 24 V DC

Operating Current: 0 … 200 mA

Maximum Voltage Drop: < 2 V
No-Load Supply Current: 10 mA

Switching Frequency: 5000 Hz

Electrical Design: PNP

Switching Output: Normally Open

Sensor Design: Cylindrical M12

Connector Type: Cable 2 m, 3-Wire

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70 °C

Diameter, Length: 12, 33 mm

Housing Material: Metal

Mounting: Flush-Mountable

Weight: 0.07 kg
