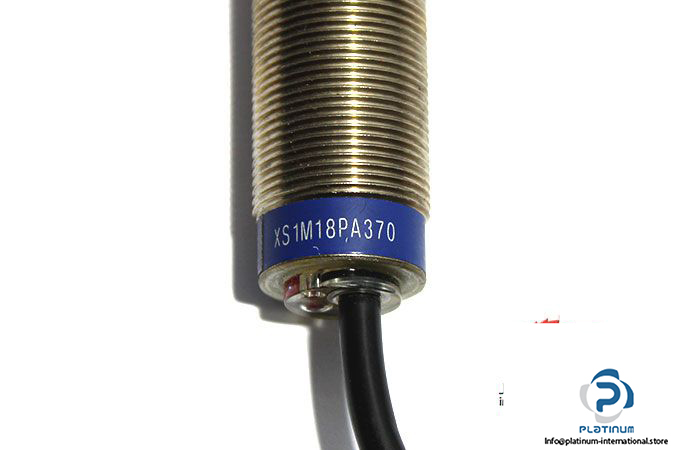

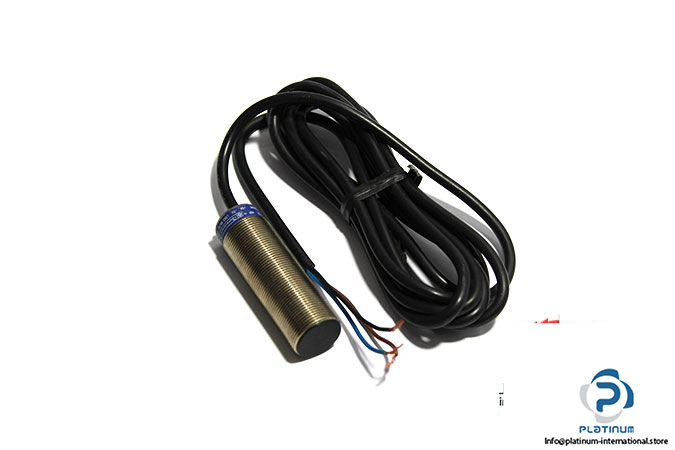

Telemecanique XS1M18PA370 Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Model: XS1-M18PA370

Sensing Range: 5 mm

Operating Voltage: 12 … 48 V DC

Switching Capacity: 0 … 200 mA

No-Load Supply Current: ≤ 10 mA

Maximum Voltage Drop: <= 2 V
Switching Frequency: 2000 Hz

Signal Output: PNP

Switching Output: Normally Open

Sensor Design: Cylindrical M18

Electrical Connection: Cable 2 m, 3-Wire

Degree of Protection: IP68

Diameter, Length: 18, 60 mm

Ambient Operating Temperature: -25 … 80 °C

Housing Material: Metal

Mounting: Flush-Mountable

Weight: 0.09 kg
