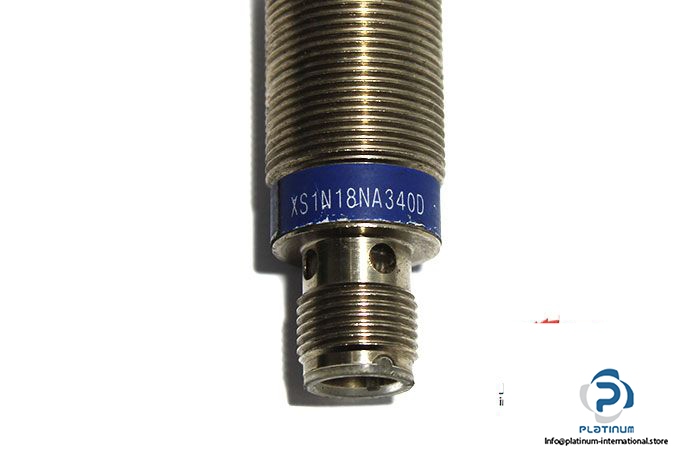

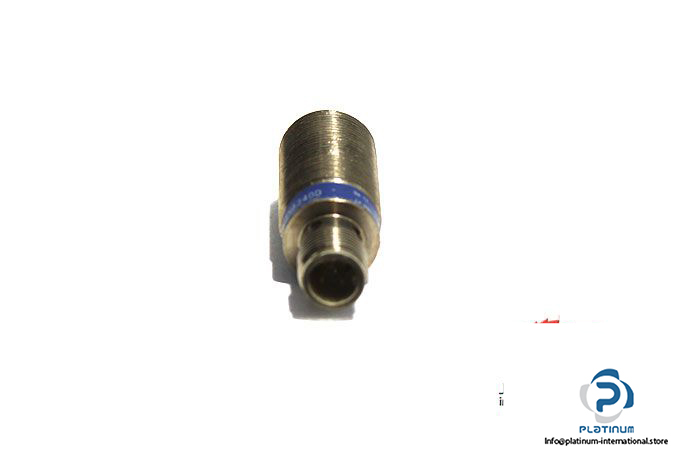

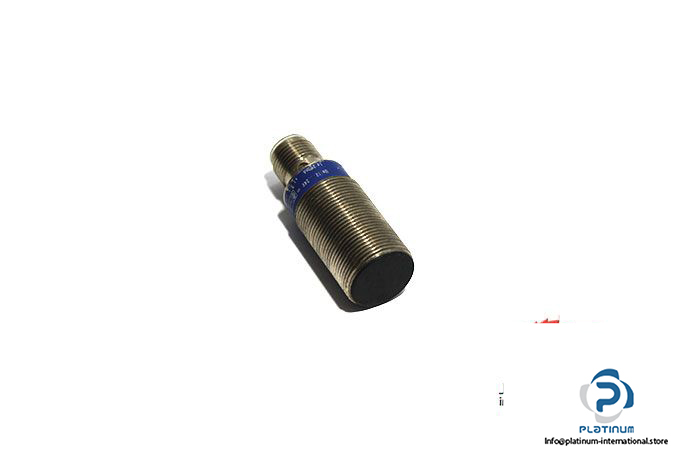

Telemecanique XS1N18NA340D Inductive Sensor

Manufacturer: Telemecanique
Type: Inductive Sensor
Model: XS1-N18NA340D

Sensing Range: 5 mm
Operating Voltage: 24 V DC (10 … 38 V DC)
Switching Capacity: 0 … 200 Ma
No-Load Supply Current: ≤ 10 mA
Maximum Voltage Drop: <= 2 V
Switching Frequency: 2000 Hz
Signal Output: NPN
Switching Output: Normally Open
Sensor Design: Cylindrical M18
Electrical Connection: Male Connector M12, 4-Pins
Degree of Protection: IP67
Diameter, Length: 18, 45 mm
Ambient Operating Temperature: -25 … 70 °C
Housing Material: Metal
Mounting: Flush-Mountable
