Telemecanique XS1N30PA349D Inductive Proximity Sensor
The Telemecanique XS1N30PA349D Inductive Proximity Sensor offers a 20 mm sensing range, PNP output, and IP67 protection, making it ideal for metal detection in industrial automation systems.

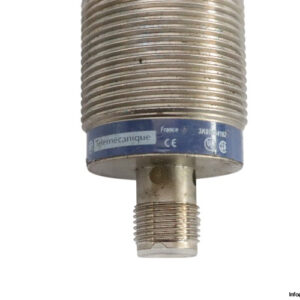

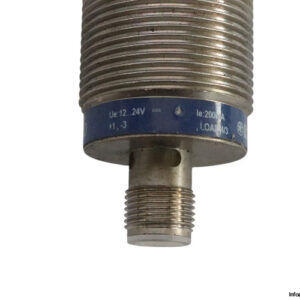

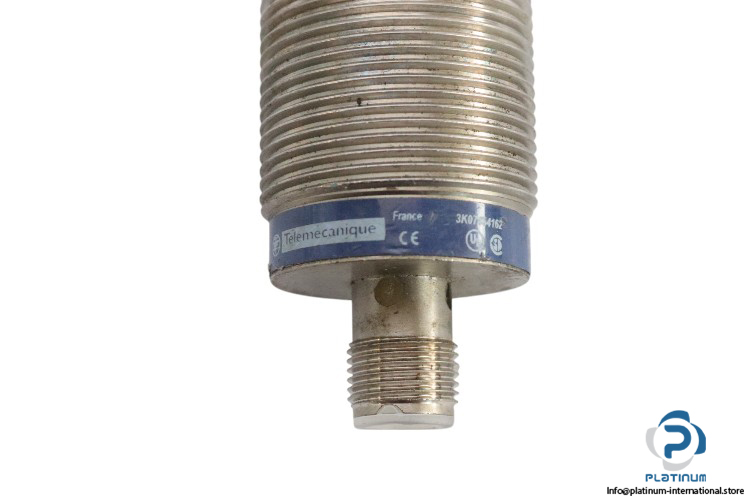

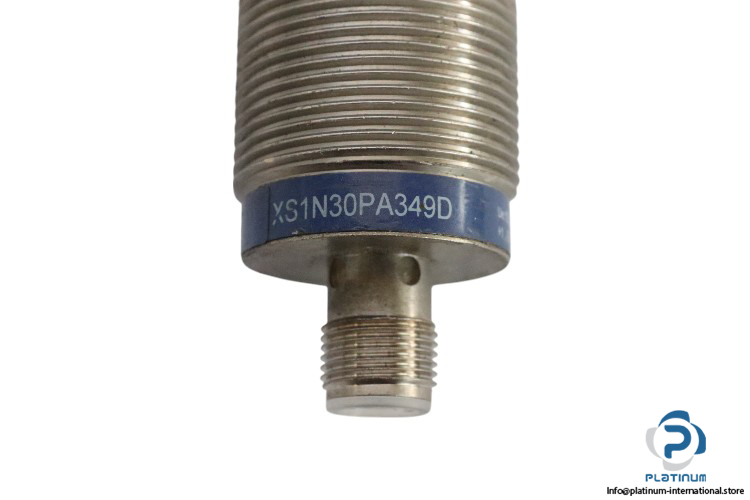

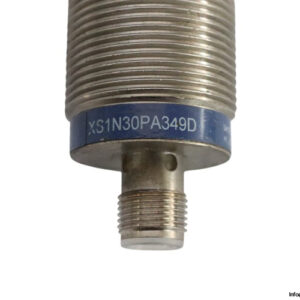

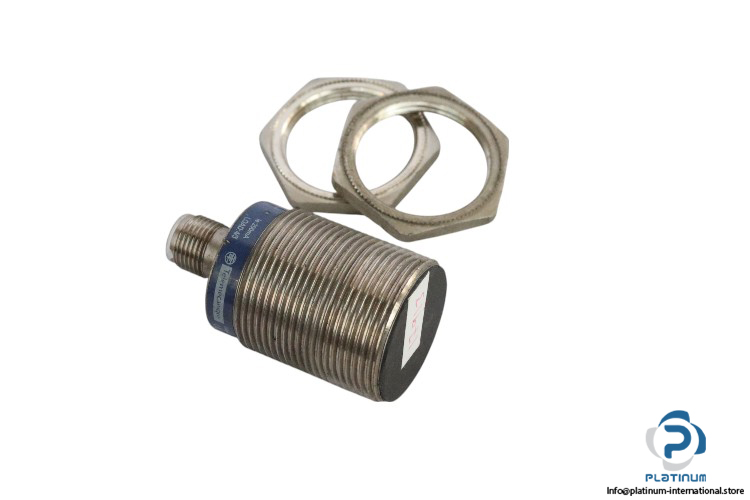

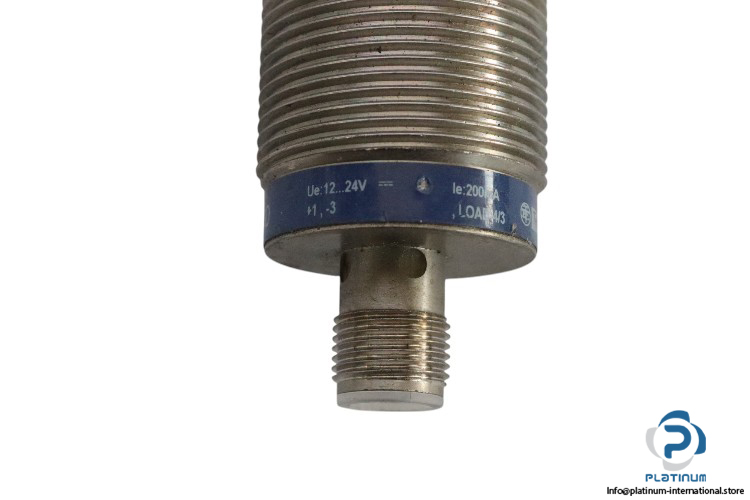

Telemecanique XS1N30PA349D Inductive Proximity Sensor
The Telemecanique XS1N30PA349D Inductive Proximity Sensor is a robust sensor designed for precise metal object detection in industrial automation systems. With a nominal sensing distance (Sn) of 20 mm, it operates within a supply voltage range of 12 to 24 V DC, consuming 200 mA of current. The sensor provides a PNP output with a normally open (NO) contact, making it suitable for a wide range of industrial applications. It features a durable nickel-plated brass housing and an IP67 degree of protection, ensuring reliability in harsh conditions. The sensor is flush mountable for seamless integration into machinery and equipment.
- Manufacturer: Telemecanique
- Type: Inductive Proximity Sensor
- Model: XS1N30PA349D
Technical Specifications:
- Body Type: Fixed
- Nominal Sensing Distance (Sn): 20 mm
- Rated Supply Voltage (Us): 12…24 V DC
- Rated Current: 200 mA
- Output Function: 1 NO
- Output Type: PNP
- Electrical Connection: Male connector M12, 4 pins
- Mounting: Flush mountable
- Type of Output Signal: Discrete
- Wiring Technique: 3-wire
- ISO Thread: M30 x 1.5
- Material: Metal
- Degree of Protection: IP67
- Enclosure Material: Nickel plated brass
- Ambient Temperature: -25…50 °C
- Size: 55 mm
The Telemecanique XS1N30PA349D Inductive Proximity Sensor is perfect for metal object detection in industrial environments, offering high durability and precise detection with its IP67-rated nickel-plated brass housing. It is ideal for automated systems and machinery that require reliable performance in challenging environments.
