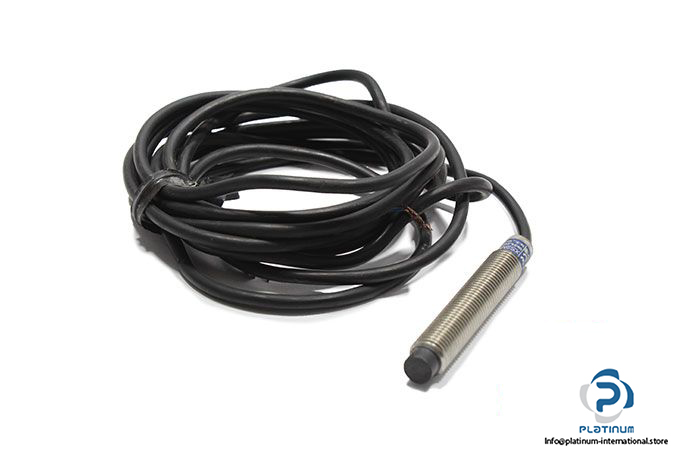

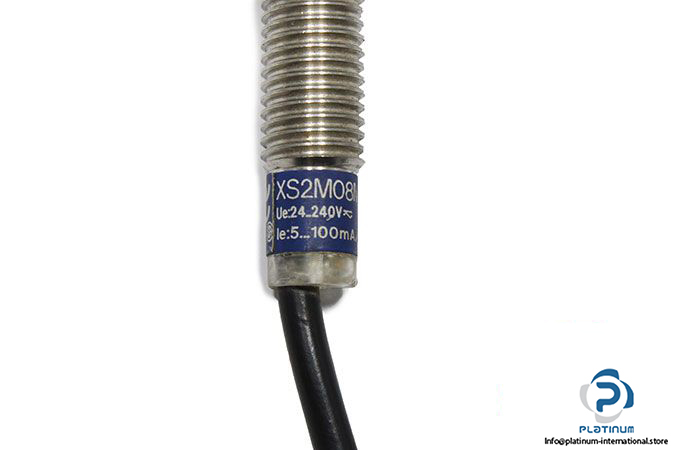

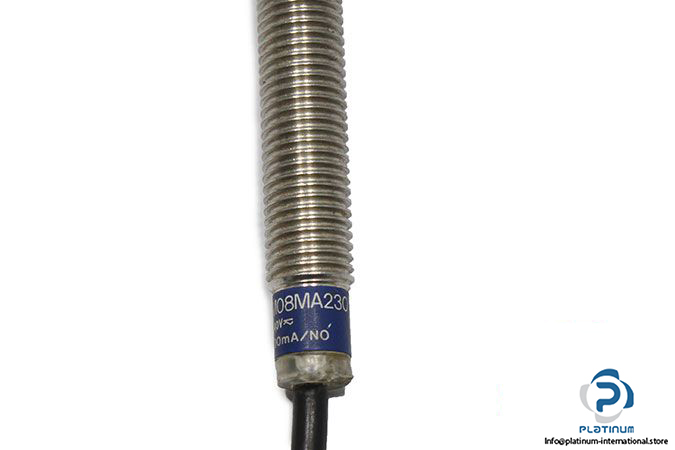

Telemecanique XS2M08MA230 Inductive Sensor

Manufacturer: Schneider / Telemecanique

Type: Inductive Sensor

Model: XS2M08MA230

Wiring Configuration: 2-wire

Protection Type: Short-circuit protection multi voltage

Device Application: 2-wire DC short-circuit protection

Sensor Design: Cylindrical M8

Detector Flush Mounting Acceptance: Non flush mountable

Material: Metal

Wiring Technique: 2-wire

Discrete Output Function: 1 NO

Electrical Connection: Cable

Cable Length: 2 m

Rated Supply Voltage: 24 … 210 VDC, 24 … 240 V AC

Frequency: 50/60 Hz

Thread Type: M8 x 1

Ambient Air Temperature for Operation: -25 … 70 °C

Diameter, Length: 8 mm, 54 mm

Weight: 0.07 Kg
