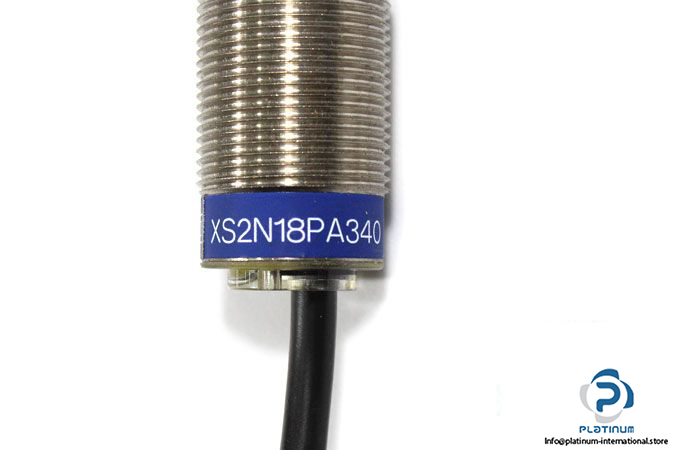

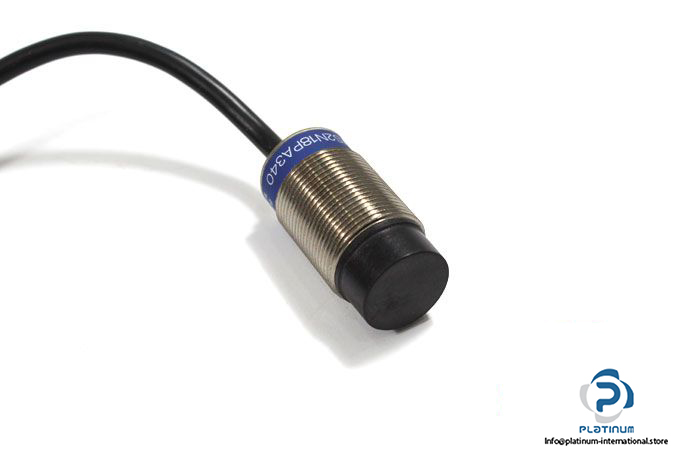

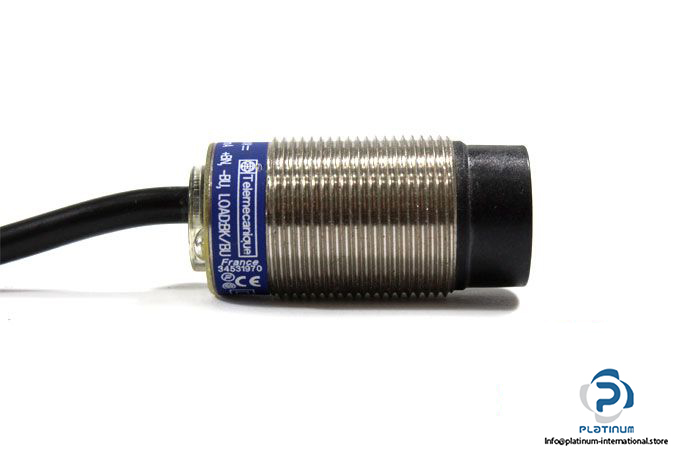

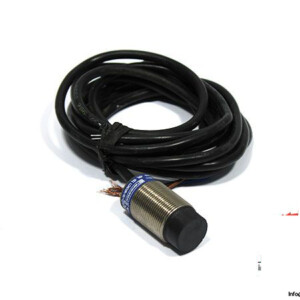

Telemecanique XS2N18PA340 Inductive Proximity Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: Inductive Proximity Sensor

Model: XS2N18PA340

Sensing Range: 8 mm

Operating Voltage: 12 … 24 V DC

Load Current: 200 mA

Switching Frequency: 2000 Hz

Electrical Design: PNP

Switching Output: Normally Open

Connector Type: Cable, 2 m

Enclosure Rating: IP68

Ambient Operating Temperature: -25 … 80 °C

Diameter, Housing Length: 18, 35 mm

Housing Material: Nickel-Plated Brass

Sensing Face Material: PBT

Mounting: Non-Flush Mountable

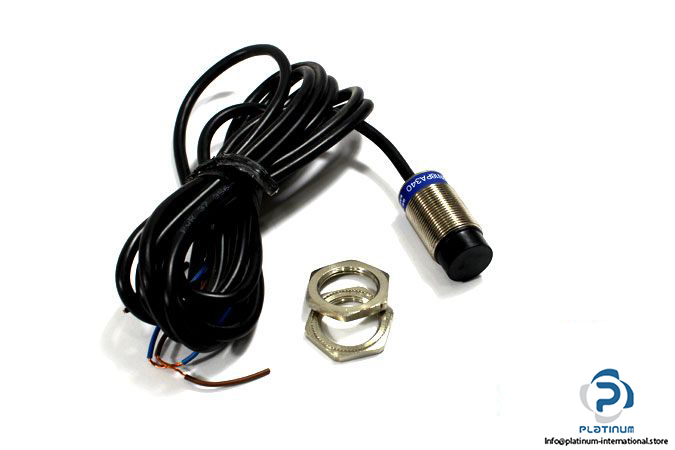

Supplied Items: 2 Lock Nuts

Weight: 0.07 kg
