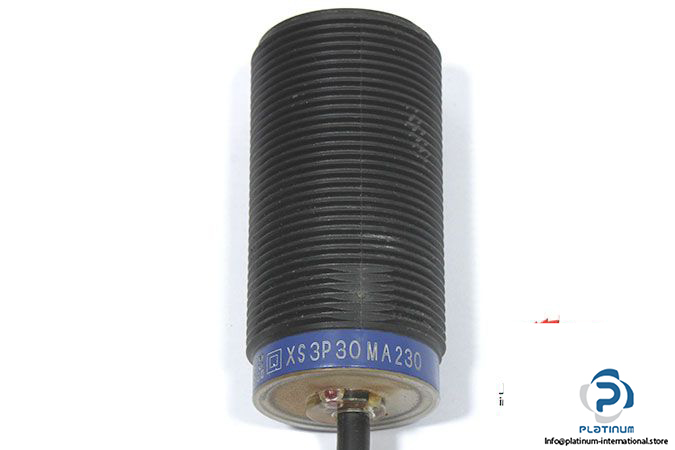

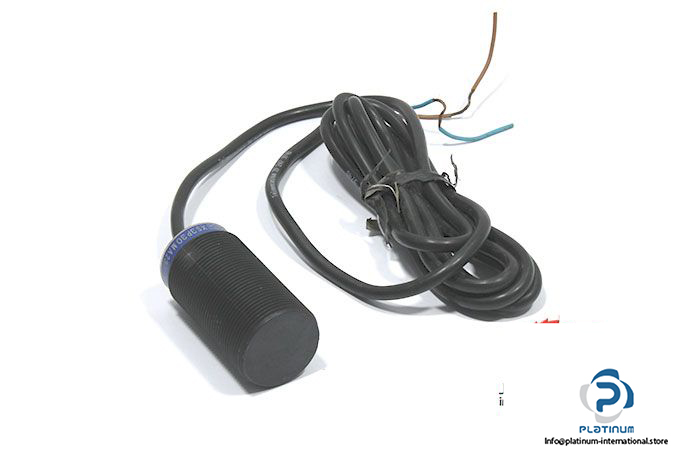

Telemecanique XS3P30MA230 Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS3P30MA230

Operating Voltage: 24 … 210 V DC / 24 … 240 V AC

Frequency: 50 … 60 Hz

Switching Capacity: 5 … 300 mA AC / 5 … 200 mA DC

Maximum Voltage Drop: ≤ 5.5 V

Switching Output: Normally Open

Sensor Design: Cylindrical M30

Electrical Connection: Cable 2 m, 2-Wire

Diameter, Length: 30, 60 mm

Ambient Operating Temperature: -25 … 70 °C

Housing Material: Plastic

Enclosure Material: PPS

Body Type: Fixed

Mounting: Flush-Mountable

Weight: 0.13 kg
