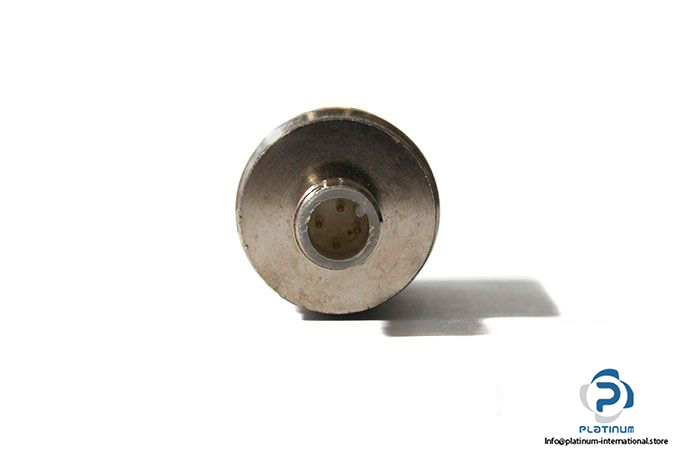

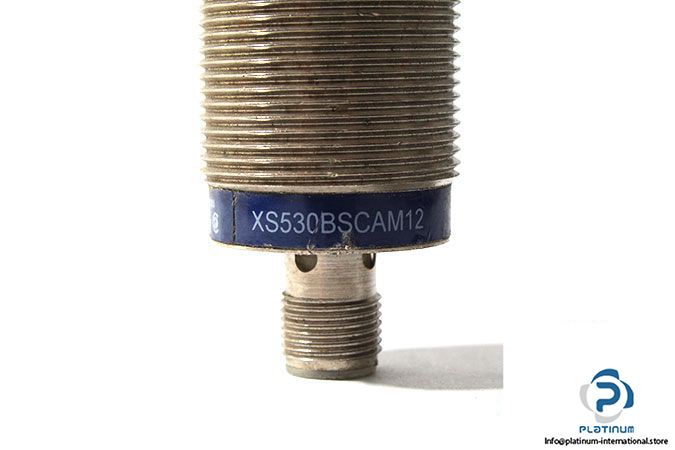

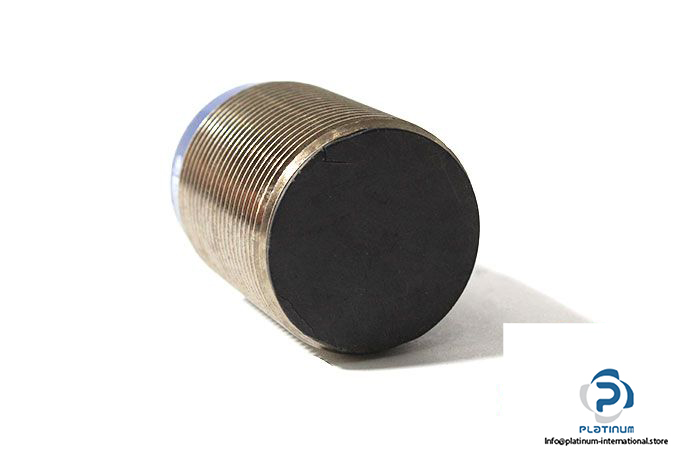

Telemecanique XS530BSCAM12 Inductive Sensor

Manufacturer: Schneider / Telemecanique

Type: Inductive Sensor

Model: XS530BSCAM12



Range of Product: OsiSense XS

Series Name: General Purpose

Sensor Design: Cylindrical M30

Body Type: Fixed

Detector Acceptance: Flush Mountable

Nominal Sensing Distance: 10 mm

Voltage Limits: 12 … 24 V DC

Switching Capacity: 1.5 … 100 mA

Switching Frequency: 2000 Hz

Electrical Design: PNP

Discrete Output Function: Normally Open

Connection: Male Connector M12 4-Pins

Type of Output Signal: Discrete

Output State: LED (yellow)

Diameter, Housing Length: 30, 55 mm

Degree of Protection: IP67

Material: Metal

Ambient Temperature: -25 … 70 °C

Weight: 0.085 kg
