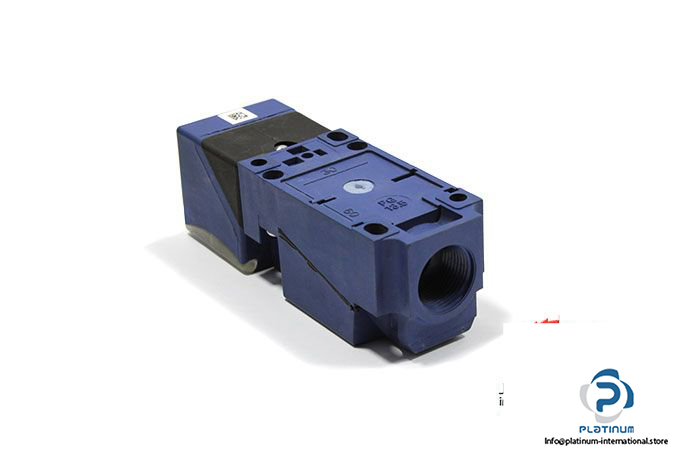

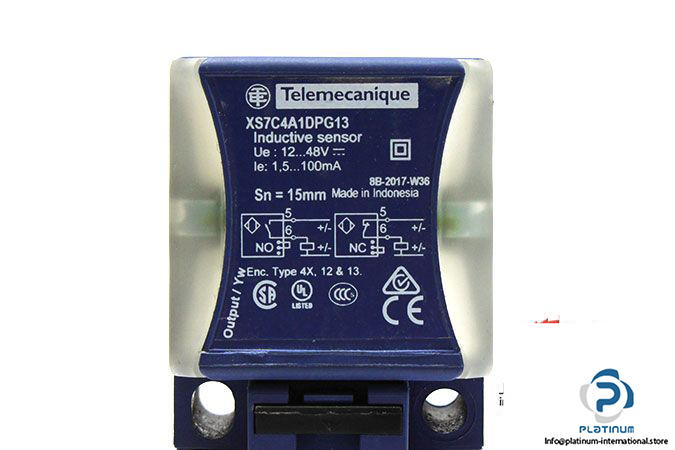

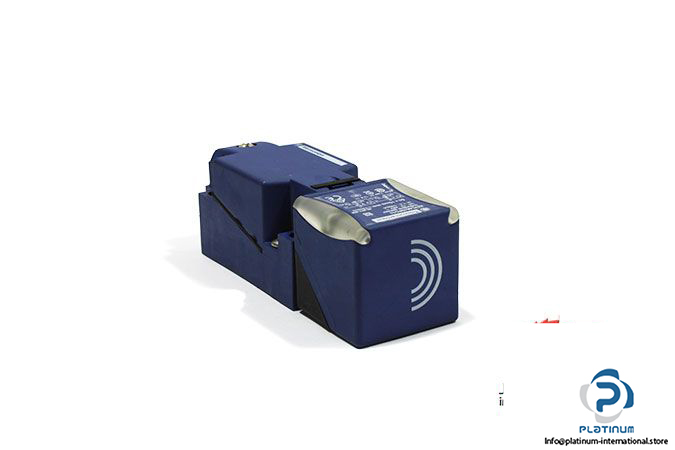

Telemecanique XS7C4A1DPG13 Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS7C4A1DPG13



Sensing range: 15 mm

Operating Voltage: 12 … 48 V DC

Operating Current: 1.5 … 100 mA

Maximum Voltage Drop: < 4.2 V
Switching Frequency: 300 Hz

Switching Output: Normally Open / Normally Closed (Programmable)

Connector Type: Terminal Compartment

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70°C

Dimensions: 40 x 40 x 117 mm

Body Type: Fixed

Housing Material: Plastic

Enclosure Material: PBT

Mounting: Flush-Mountable

Weight: 0.22 kg
