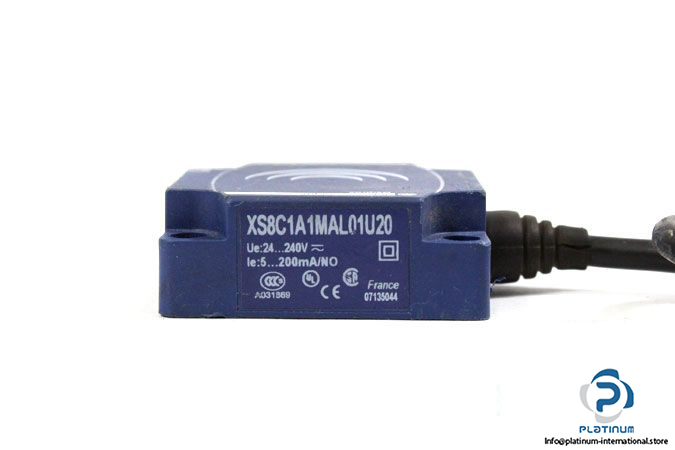

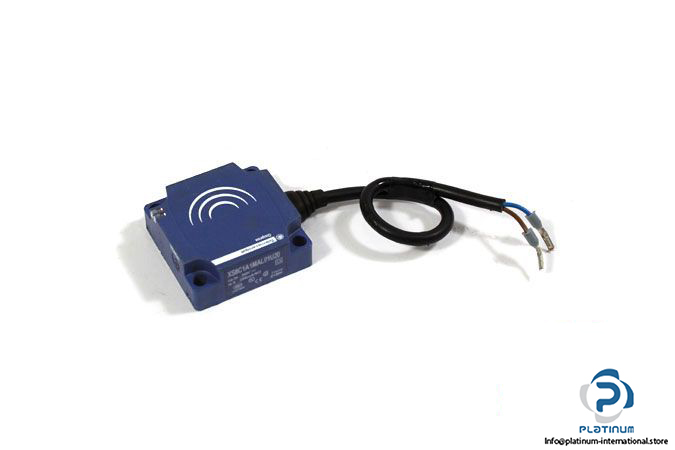

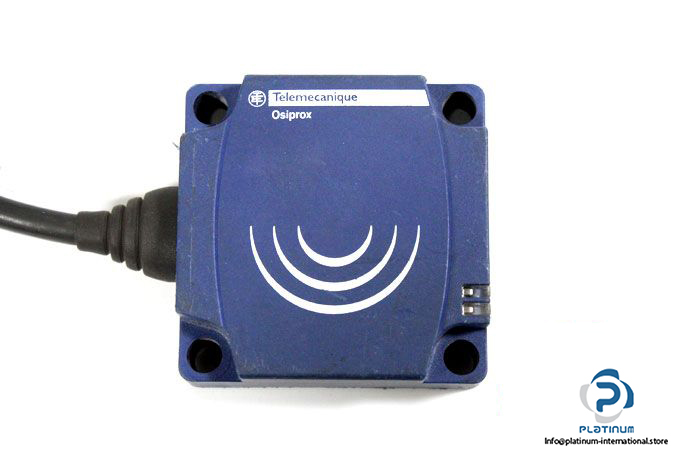

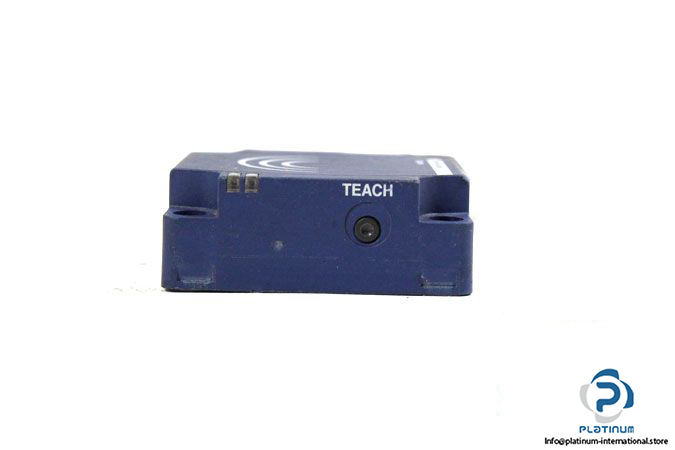

Telemecanique XS8C1A1MAL01U20 Inductive Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Series: OsiSense XS

Type: INDUCTIVE SENSOR

Model : XS8C1A1MAL01U20

Sensing range: 25 mm

Adjustment zone: 8…15 mm flush mountable

8…25 mm non flush mountable

Detection face: Frontal

Operating Voltage: 24 … 240 V AC/DC

Switching Capacity: 5 … 200 mA/AC, 5 … 300 mA/DC

Switching frequency: 1000 Hz

Switching output: Normally open

Connector type: Cable, 0.15 m

Enclosure rating: IP67

Ambient operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 15 mm

Housing material: PBT

Sensing face material: PBT

Mounting: Flush-mountable, Non-Flush mountable
