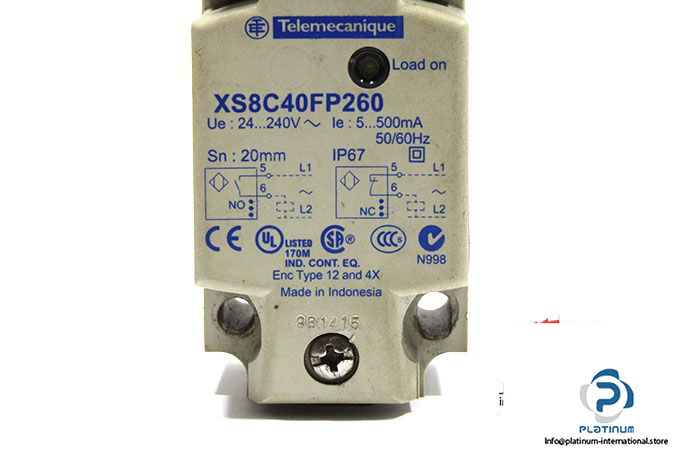

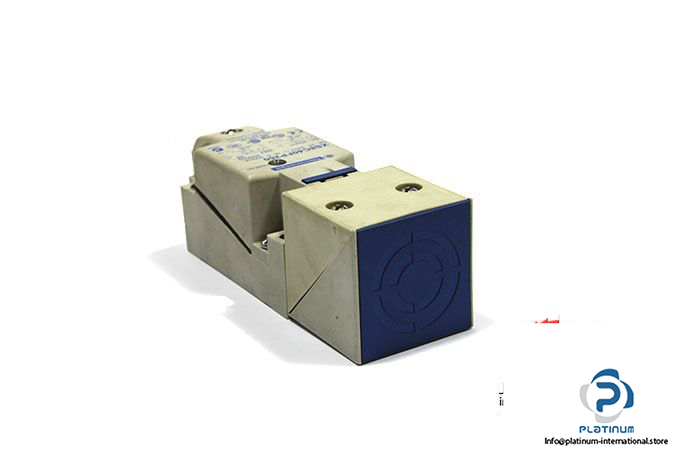

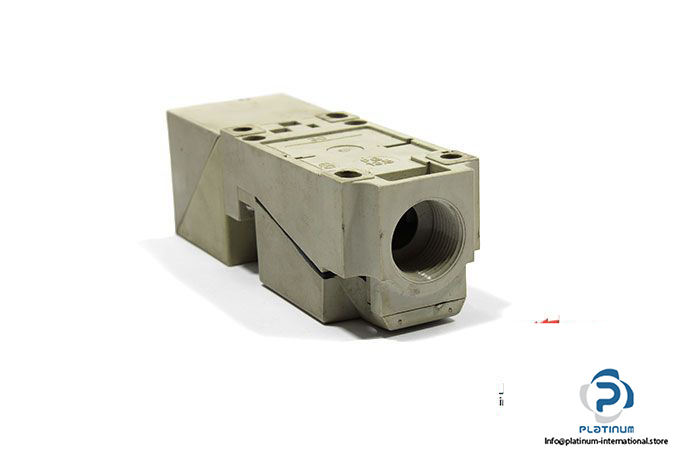

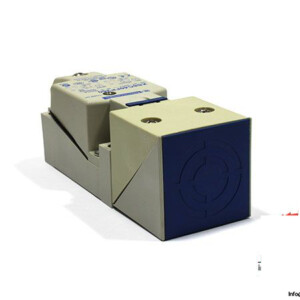

Telemecanique XS8C40FP260 Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS8C40FP260

Sensing Range: 20 mm

Operating Voltage: 24 … 240 V AC

Frequency: 50 … 60 Hz

Operating Current: 5 … 500 mA

Maximum Voltage Drop: < 5.5 V
Switching Frequency: <= 25 Hz
Switching Output: Normally Open / Normally Closed (Programmable)

Connector Type: Screw-Clamp Terminals,

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70°C

Dimensions: 40 x 40 x 117 mm

Body Type: Fixed

Housing Material: Plastic

Enclosure Material: Plastic

Mounting: Non Flush-Mountable

Weight: 0.25 kg
