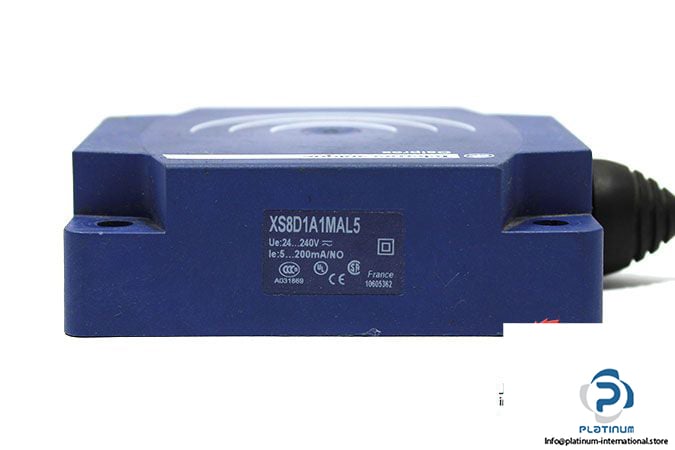

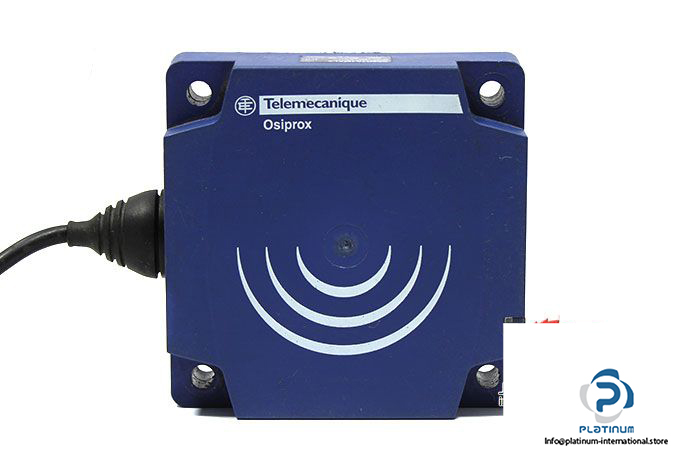

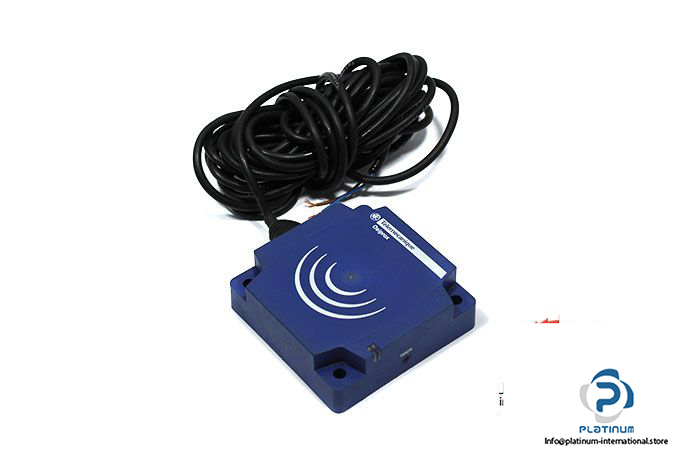

Telemecanique XS8D1A1MAL5 Inductive Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS8-D1A1MAL5

Sensing Range: 60 mm

Operating Voltage: 24 … 240 V AC/DC

Operating Current: 5 … 200 mA DC / 5 … 300 mA AC

Current Consumption, No Load: <= 10 mA
Maximum Voltage Drop: < 5.5 V
Switching Frequency: 150 Hz

Switching Output: Normally Open

Connection: Cable 5 m, 2-Wire

Enclosure Rating: IP68

Ambient Operating Temperature: -25 … 70 °C

Dimensions: 80 x 80 x 26 mm

Material: Plastic

Enclosure Material: PBT

Body Type: Fixed

Mounting: Non Flush-Mountable

Weight: 0.46 kg
