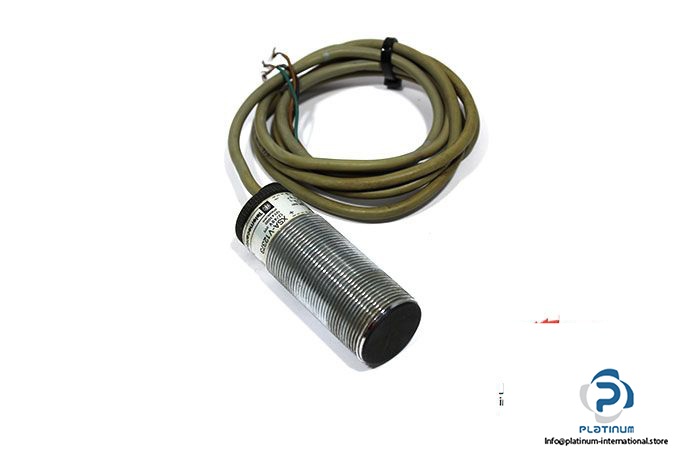

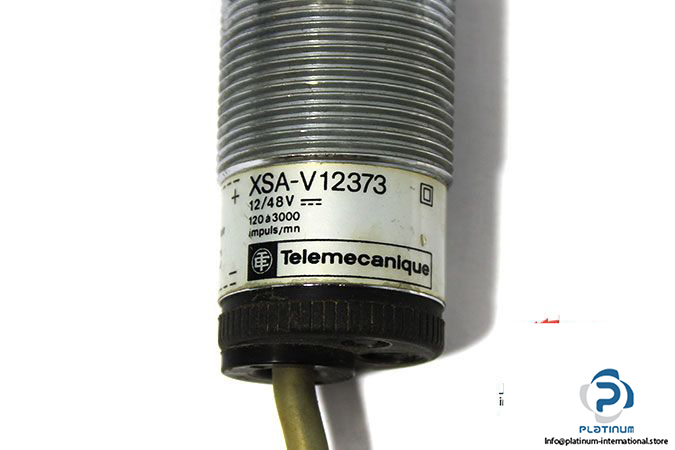

Telemecanique XSA-V12373 Inductive Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: INDUCTIVE SENSOR

Model: XSAV12373

Sensing Range: 10 mm

Operating Voltage: 12 … 48 V DC

Operating Current: <= 200 mA
Current Consumption, No-Load: 0…15 mA

Maximum Voltage Drop: < 1.8 V
Switching Frequency: <= 800 Hz
Adjustable Frequency Range: 120…3000 cyc/mn

Discrete Output Type: PNP

Sensor Design: Cylindrical M30

Connector Type: Cable 2 m, 3-Wire

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70 °C

Diameter, Length: 30, 81 mm

Body Type: Fixed

Housing Material: Metal

Enclosure Material: Nickel Plated Brass

Mounting: Flush-Mountable
