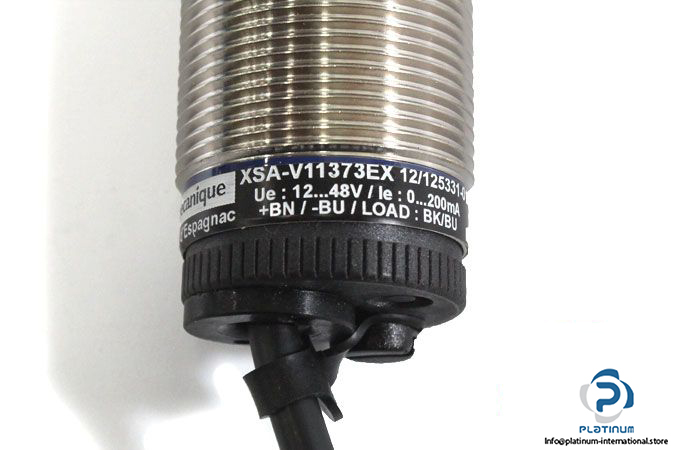

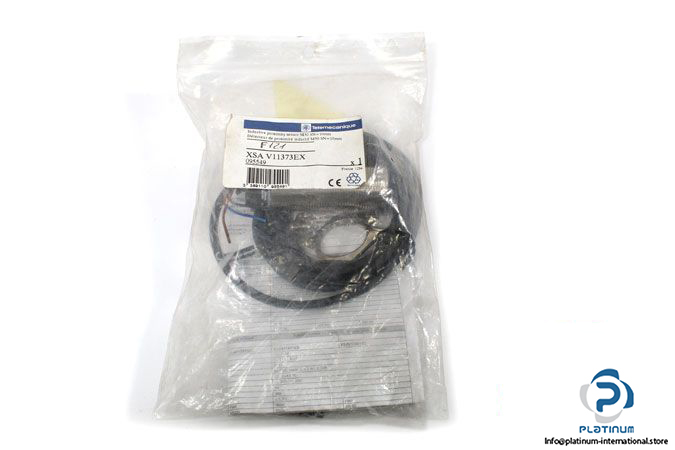

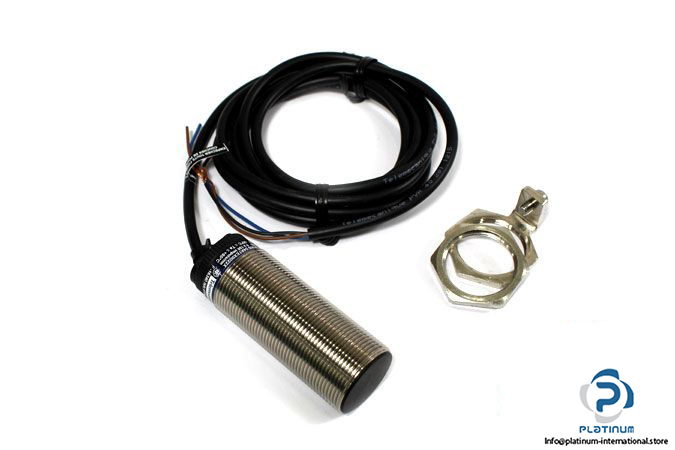

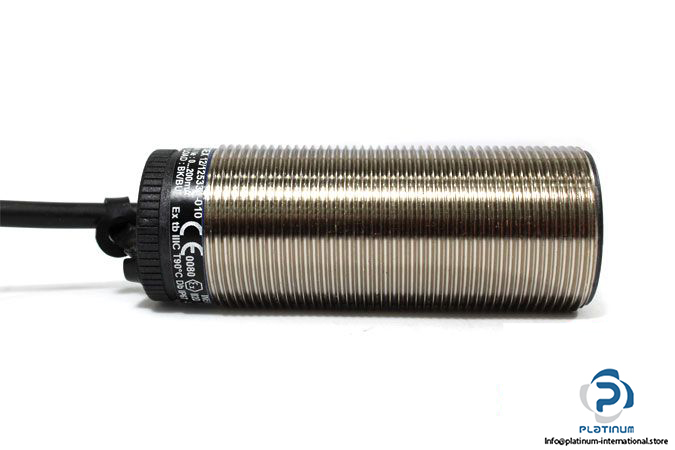

Telemecanique XSAV11373EX Inductive Proximity Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Range: OsiSense XS ATEX D

Type: INDUCTIVE PROXIMITY SENSOR

Model: XSAV11373EX

Application: Rotation monitoring ATEX dust

Sensing Range: 10 mm

Operating Zone: 0 … 8 mm

Operating Voltage: 12 … 48 V DC

Switching Capacity: 200 mA

Switching Frequency: 100 Hz

Electrical Design: PNP

Switching Output: Normally closed

Connector Type: Cable, 2 m

Enclosure Rating: IP67

Ambient Operating temperature: -20 … 60°C

Diameter, housing length: 30, 81 mm

Housing Material: Nickel-plated brass

Sensing Face material: PPS

Mounting: Flush-mountable
