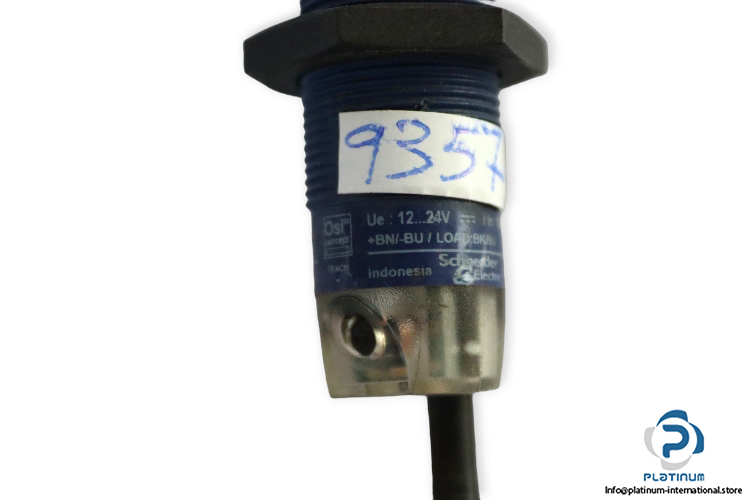

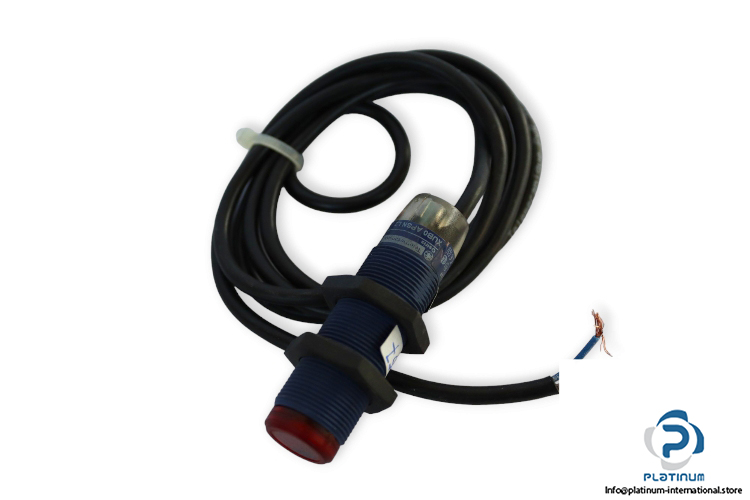

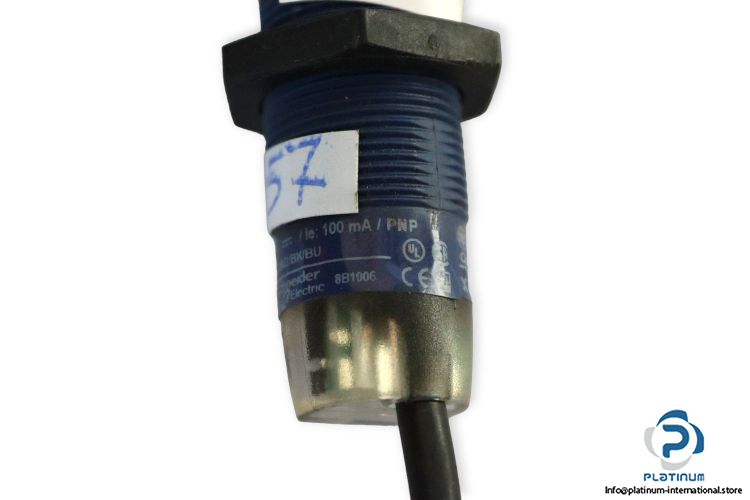

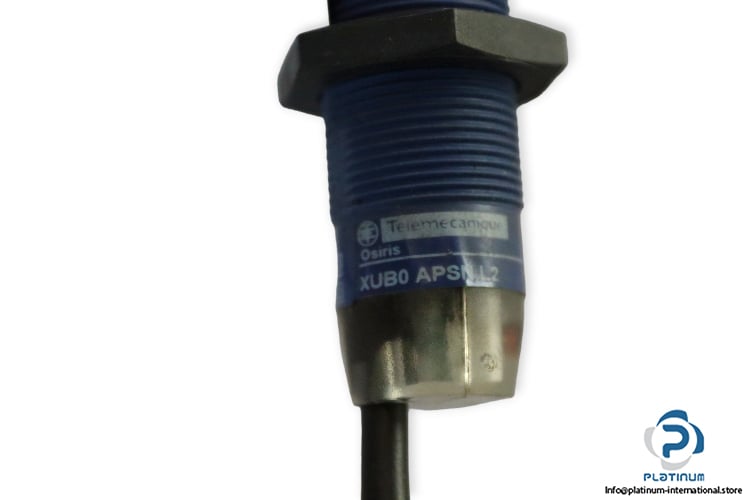

Telemecanique XUB0 Apsn L2 Multimode Sensor

Manufacturer: TELEMECANIQUE
Type: Multimode Sensor
Model: XUB0APSNL2

Sensing Range: 0 … 20 m
3 m Polarized Reflex Need Reflector XUZC50
20 m Thru Beam Need a Transmitter XUB0AKSNL2T
0.12 m Infrared Diffuse with Background Suppression
0.3 m Diffuse
Sensor Design: Cylindrical M18
Operating Voltage: 12 … 24 V DC
Rated Switching Current: 100 mA
Switching Output: PNP, Normally Open (NO) / Normally Closed (NC) Programmable
Connection Type: M18x1, Cable 3-Wires, 2 m
Housing Material: Plastic
Protection Class: IP65
Sensor Diameter: 18 mm
Sensor Length: 64 mm
Operating Temperature: -25 … 70 °C
