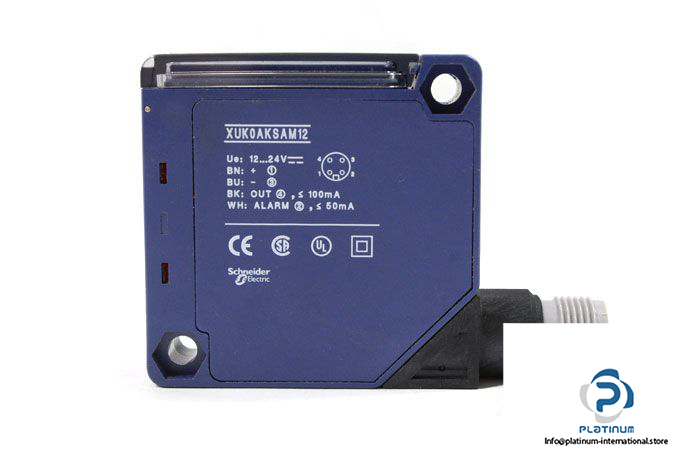

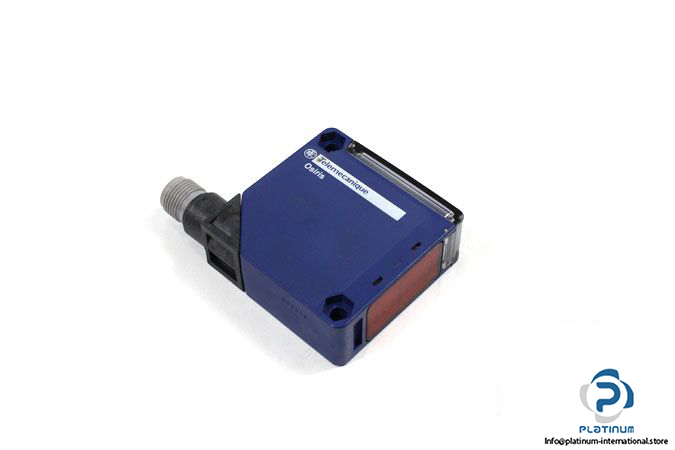

Telemecanique XUK0AKSAM12 Multimode Photoelectric Sensor

Manufacturer: TELEMECANIQUE / SCHNEIDER

Range : Osiris

Series: GENERAL PURPOSE MULTIMODE

Type: MULTIMODE PHOTOELECTRIC SENSOR

Model : XUK0AKSAM12

Detection System: Multimode

Sensing Range max.:

5.7 m polarised reflex need reflector XUZC50

35 m thru beam need a Transmitter XUK0AKSAM12T

0.28 m diffuse with background suppression

1.2 m diffuse

Operating Voltage: 12 … 24 V DC

Switching Capacity: 100 mA

Switching Frequency: 250 Hz

Electrical Design: PNP or NPN

Switching Output: Normally open/normally closed

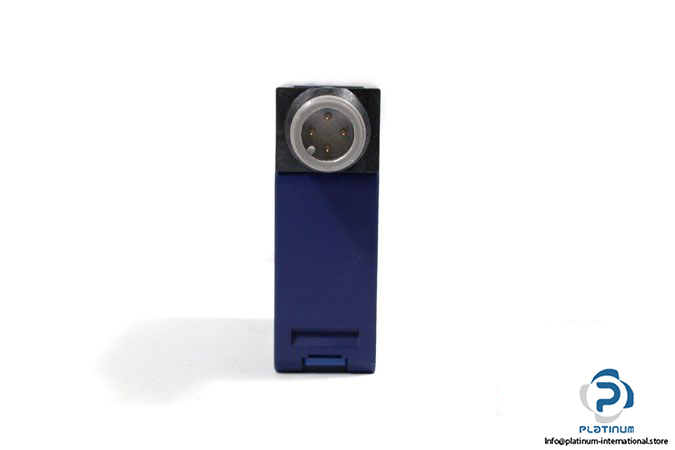

Connector Type: M12 Connector,4-pin

Enclosure Rating: IP67

Ambient Operating temperature: -25 … 55°C

Dimensions: 50 x 18 x 50 mm

Weight: 90 g

Housing Material: PBT

Sensing Face Material: PMMA
