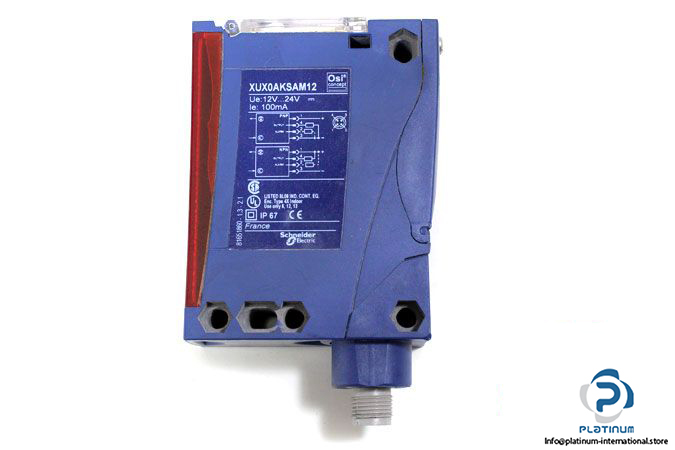

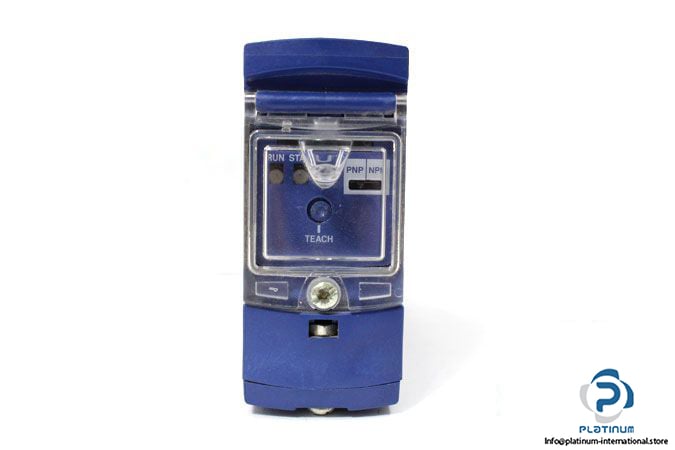

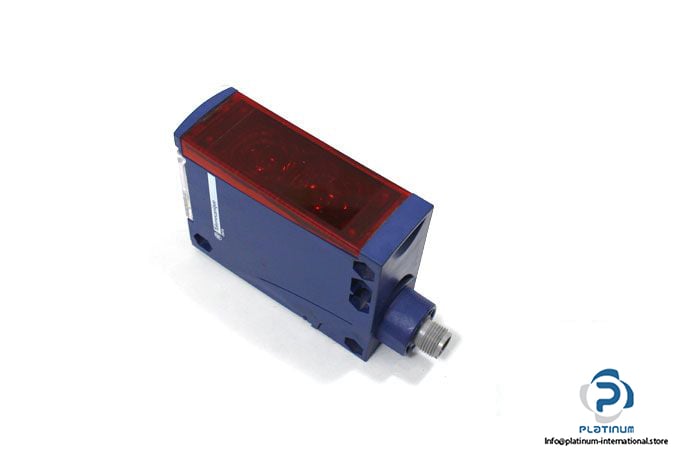

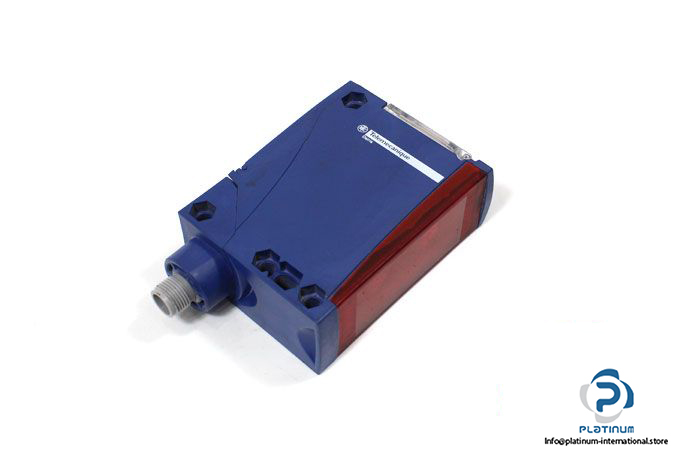

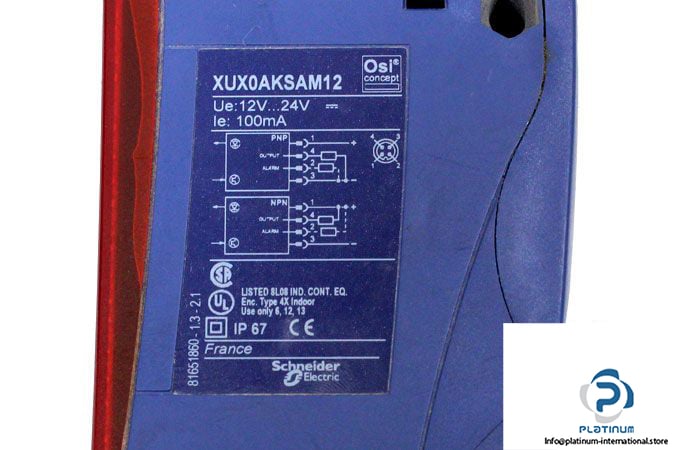

Telemecanique XUX0AKSAM12 Multimode Photoelectric Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Range: OsiSense XU

Series: GENERAL PURPOSE MULTIMODE

Type: MULTIMODE PHOTOELECTRIC SENSOR

Model : XUX0AKSAM12

Detection system: Multimode

Sensing range max.:

15 m polarised reflex need reflector XUZC50

60 m thru beam need a Transmitter XUX0AKSAM12T

1.3  m diffuse with background suppression

3 m diffuse

Operating Voltage: 12 … 24 V DC

Switching capacity: 100 mA

Switching frequency: 250 Hz

Switching output: Programmable Normally open/normally closed

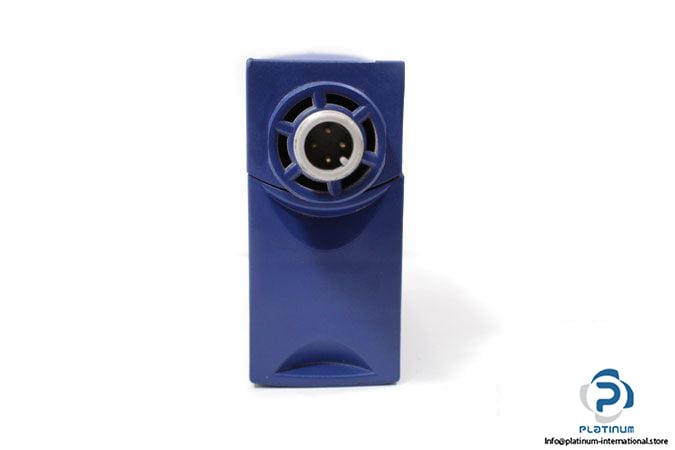

Connector type: M12 Connector,4-pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 55°C

Dimensions: 77 x 31 x 92 mm

Weight: 200 g

Housing material: PBT

Sensing face material: PMMA
