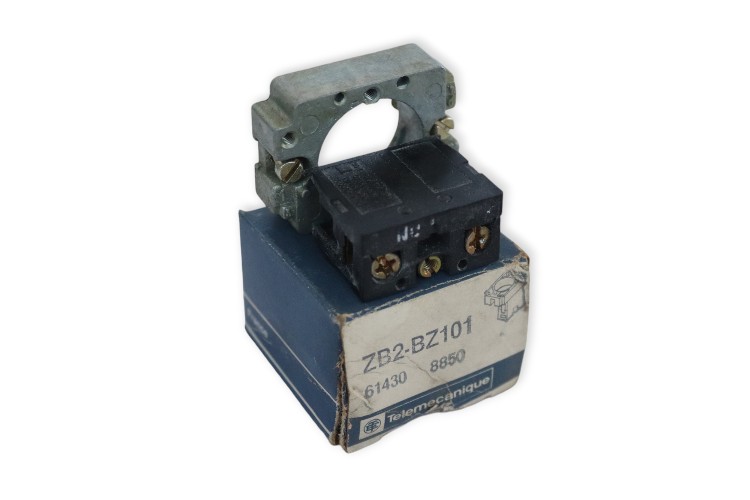

Telemecanique ZB2-BZ101 61430 / 8850 Contact Block
Type: CONTACT BLOCK Model: ZB2-BZ101
Manufacturer: TELEMECANIQUE
Type: CONTACT BLOCK
Model: ZB2-BZ101
part no.: 61430
Range of Product: Harmony XB2
Product or Component Type: Contact block
Body type: Body for control button
Mounting diameter: 22 mm
Contacts type and composition: 1 Normally open (NO)
Connections – Terminals: Screw clamps terminals
Bezel material: Chromium plated metal
Terminals description ISO n°1: (13-14) NO
Attachment:
TELEMECANIQUE ZB2-BE101 Body for control button
Manufacturer: TELEMECANIQUE
Type: control button
Model: ZB2-BE101
part no.: 8850
Electrical shock protection class: Class II IEC 61140
Electrical circuit type: Control circuit
rated insulation voltage (Ui): 600 V
rated impulse with stand voltage (Uimp): 6 Kv
thermal current: 10 A
Contacts type and composition: 1 NO
Contact operation: Slow-break
Maximum resistance across terminals: 25 MOhm
Operating force: 13…15 N
Ambient Temperature: -25…70 °C
