Temposonics RH-M-0500M-D70-1-S1G1100 Magnetostrictive NON-Contact Linear-Position Sensor

Temposonics MTS RHM0500MD701S1G1100 Magnetostrictive Linear-Position Sensor

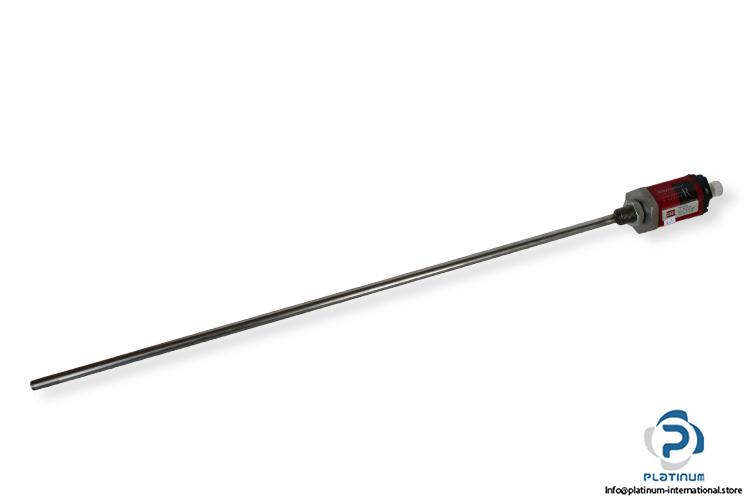

The Temposonics MTS RHM0500MD701S1G1100 is a high-precision magnetostrictive non-contact linear-position sensor designed for hydraulic rod applications. With a 500 mm stroke length and Profibus-DP communication output, it ensures accurate position measurement and reliable performance in industrial environments. This sensor is built with metric threads, a flat-faced flange, and a pressure tube for robust installation.

Manufacturer: TEMPOSONICS MTS

Type: Magnetostrictive Non-Contact Linear-Position Sensor

Model: RHM0500MD701S1G1100

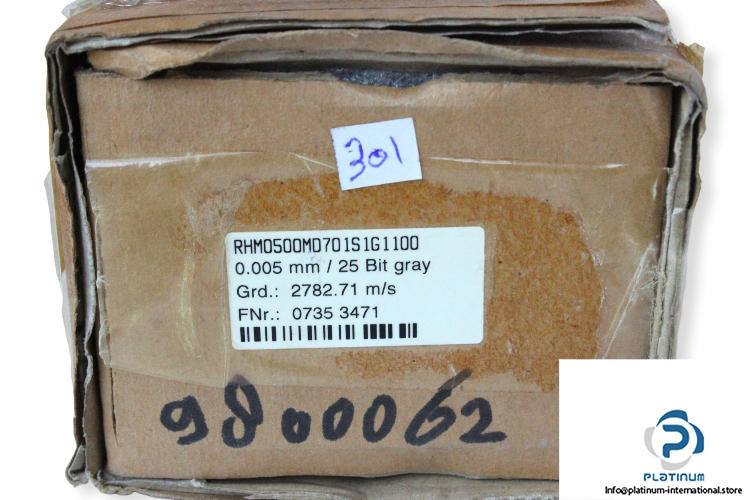

Reference No.: 07353471 / 01070463

Technical Data:

• Sensor Model: Hydraulic rod style

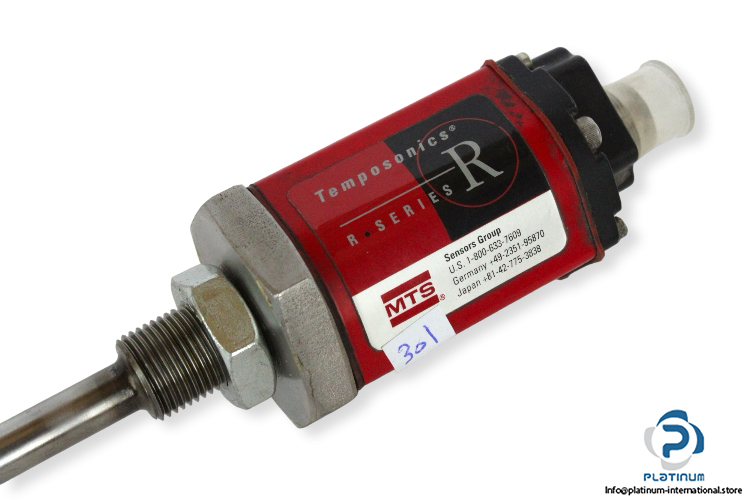

• Housing Style: Metric threads, flat-faced flange, and pressure tube, standard
• Stroke Length: 500 mm
• Communication: Profibus-DP Output
• Input Voltage: 24 V DC

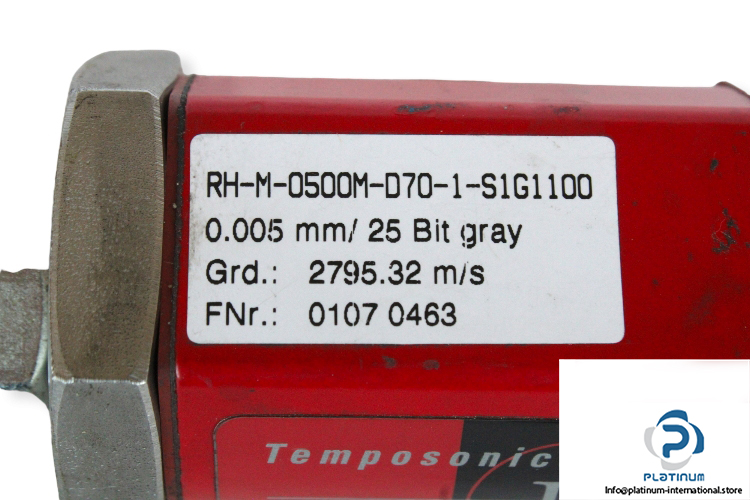

• Speed: 2795.32 m/s
• Position Measurement: 25 bit
• Connection Type: 6-pin male D60 (M16)
• Operating Temperature: -40 / 75°C
