Tesch F113X04 Emergency Stop Relay
Used
In stock1 unitReady to ship
Tesch Emergency Stop Relay F113X04 with 24 V AC/DC supply voltage, 5 A switching current, and 2 NO safety contacts. Designed for reliable emergency stop applications with IP40 casing protection.
250ACafetyCasingConsumptioncontacts.EmergencyIndustrialIP40PowerRelaySafetyStopSwitchingTeschVvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

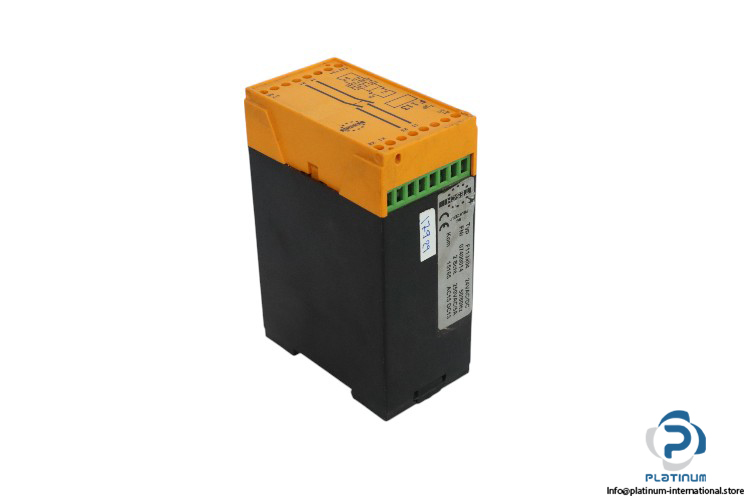

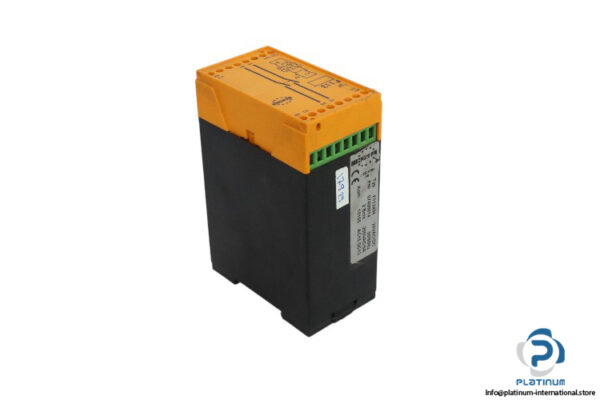

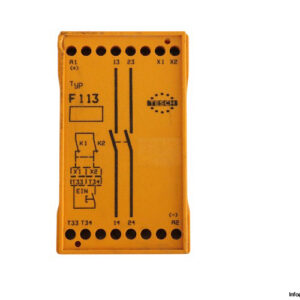

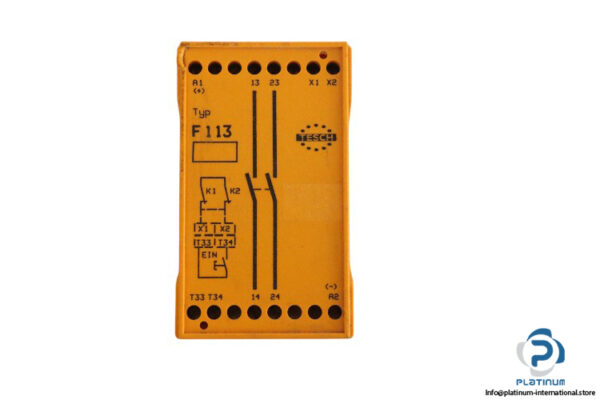

Tesch Emergency Stop Relay F113X04
Tesch Emergency Stop Relay F113X04 is a highly reliable component designed to ensure the safety and efficient operation of emergency stop systems. Below are the key technical specifications:

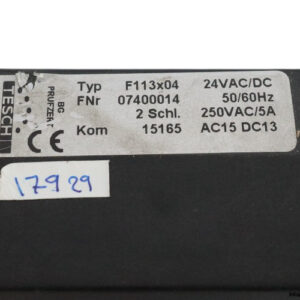

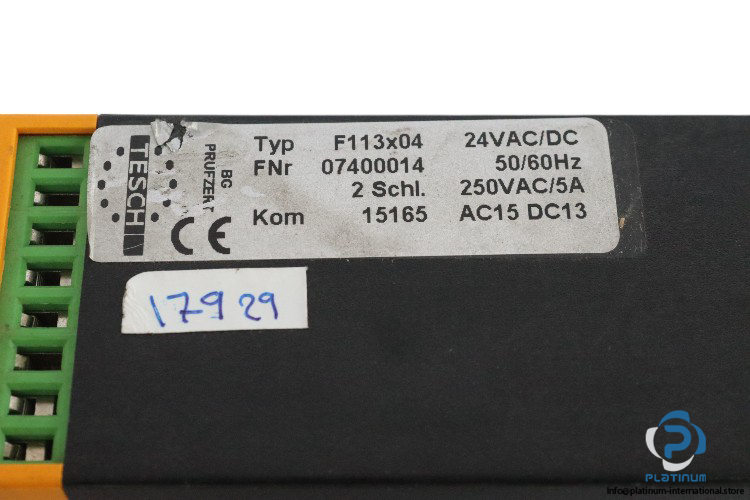

- Manufacturer: Tesch
- Type: Emergency Stop Relay
- Model: F113X04
- Order No.: 07400014
Technical Data:
- Supply Voltage: 24 V AC/DC
- Frequency: 50/60 Hz
- Switching Voltage: 250 V AC
- Switching Current: 5 A
- Power Consumption: approx. 4.5 VA
- Output: 2 NO safety contact
- Operating Temperature: -5 to +55 °C
- Degree of Protection: IP20 terminal, IP40 casing
- Dimension: 45 x 109.5 x 75 mm
