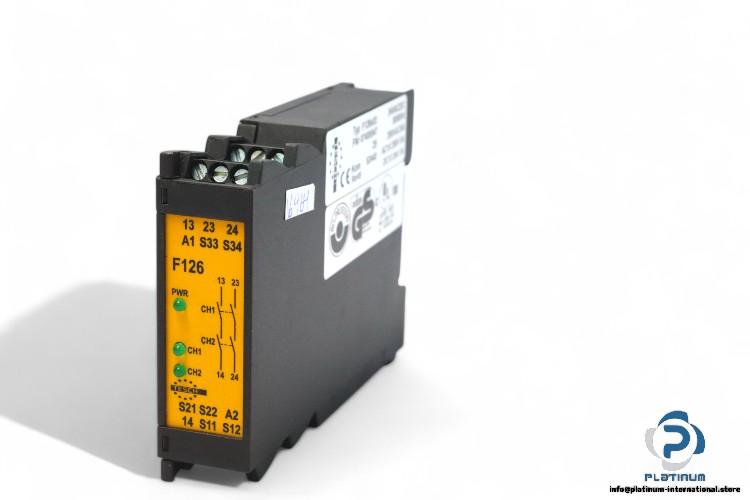

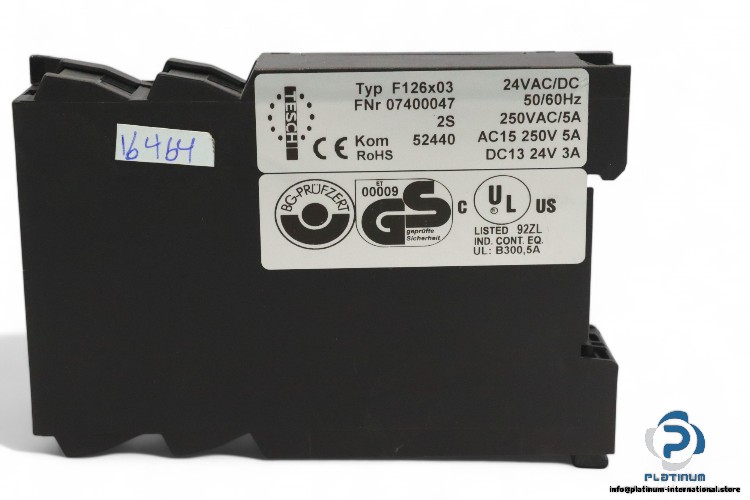

Tesch F126X03 Safety Relay

Manufacturer: TESCH
Type: SAFETY RELAY
Model: F126X03
part no: 07400047

Rated voltage: 24V_AC/DC
Rated insulation voltage: 250V
Thermic current Ith max.: 6 A
Degree of protection: IP 20, IP 40
Output contacts: 2 N/O (safety contacts)
frequency: 50 … 60 HZ
Power consumption: 4W
Terminals: Terminal box with wire protection
Category Usage:
AC-15 250V 5A
DC-13 24V 3A

Switch material: AgSnO2 0.5µ Au
Ambient temperature: – 5°C to +55°C
Dimension: 110 x 75 x 22.5 mm
