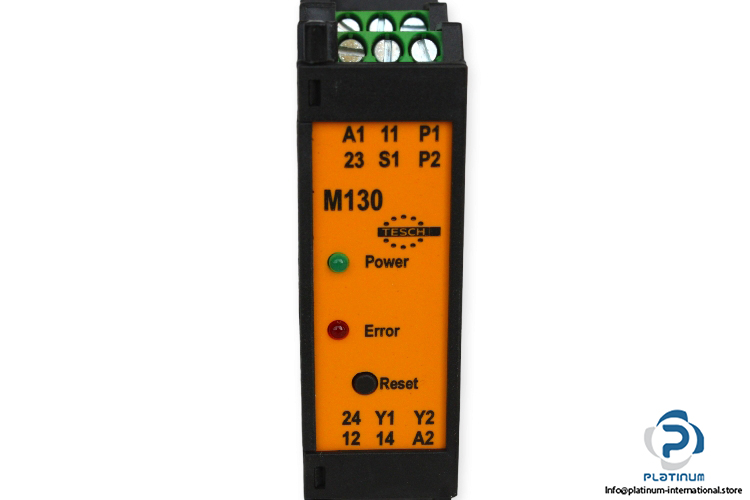

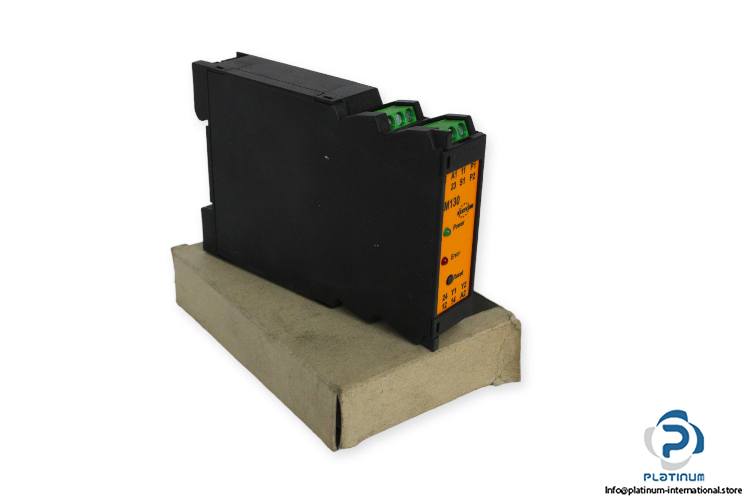

Tesch M130X112 Motor Protection Relay

Manufacturer: Tesch

Type: Motor Protection Relay

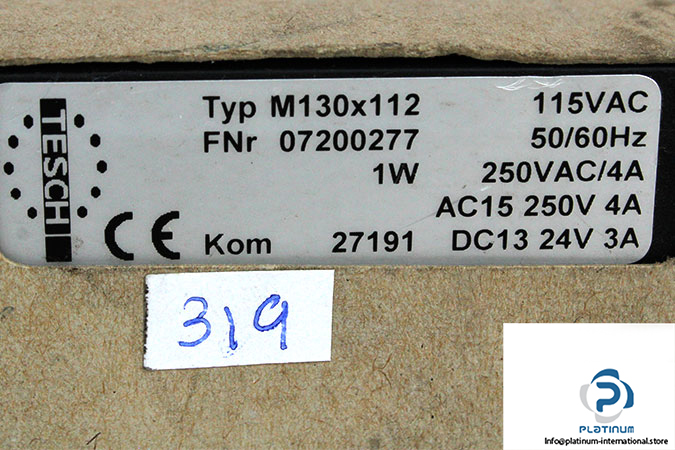

Model: M130x112

Order No.: 07200277



Nominal voltage: 115 V AC

Rated Frequency: 50 … 60 Hz

Switching voltage max.: 250 V AC

Nominal consumption: 1 W

Switching Current max. : 4 A

Contact rating

AC-15: 250 V AC,4 A

DC-13: 24 V DC,3 A

Ambient temperature: -5 … +60 °C

Degree of protection: IP20

Dimension: 22.5 x 110 x 75 mm
