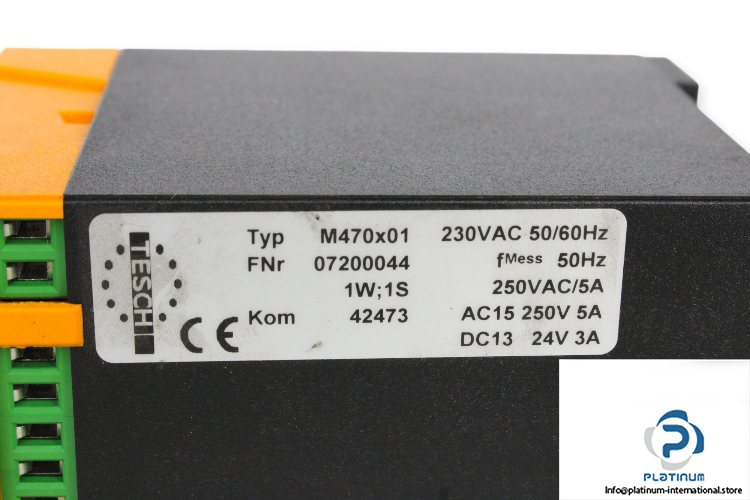

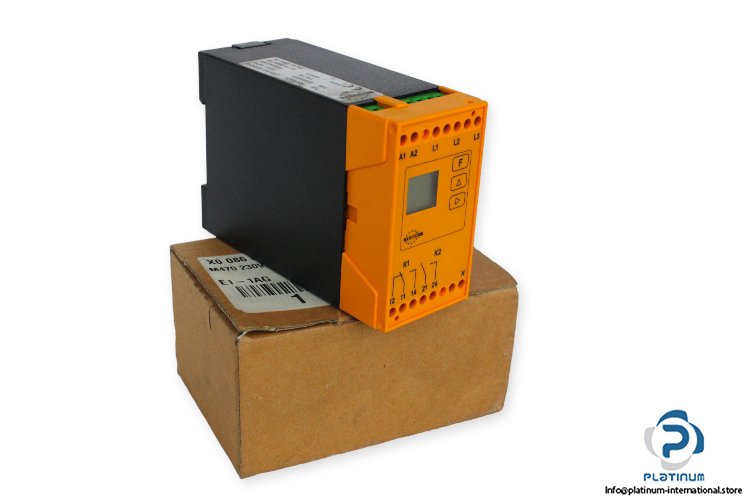

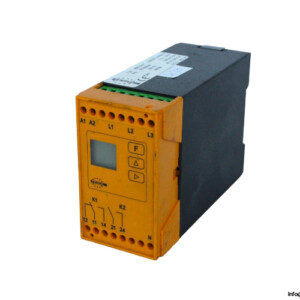

Tesch M470X01 Measuring Relay
Manufacturer: Tesch
Type: Measuring Relay
Model: M470x01
Order No.: 072 00044
Nominal voltage: 230 V AC
Rated Frequency: 50 … 60 Hz
Frequency Mess: 50 Hz
Switching voltage max.: 250 V AC
Switching Current max. : 5 A

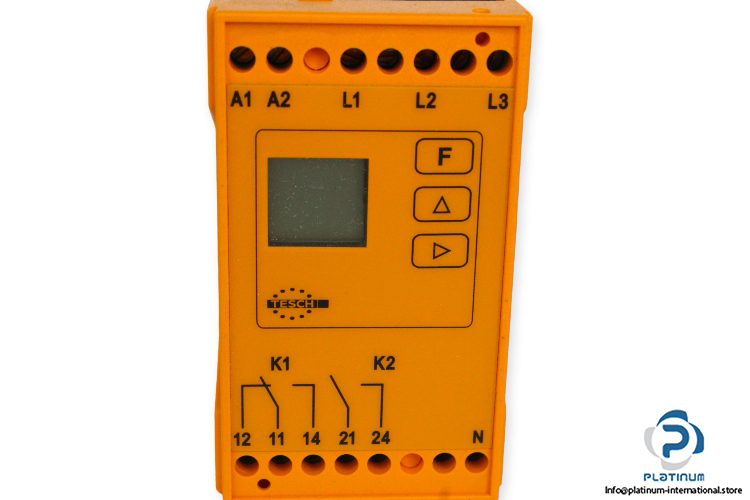

Output: 1 change-over contact, 1 normally open contact
Contact rating
AC-15: 250 V AC,5 A
DC-13: 24 V DC,3 A
Ambient temperature: -5 … +60 °C
Degree of protection: IP20
Connecting terminals: Terminal box with wire protection
Dimension: 45 x 109.5 x 75 mm
