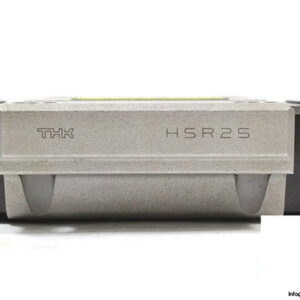

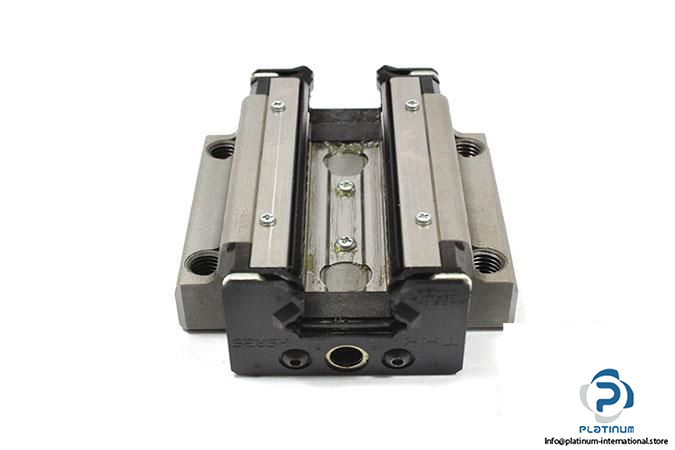

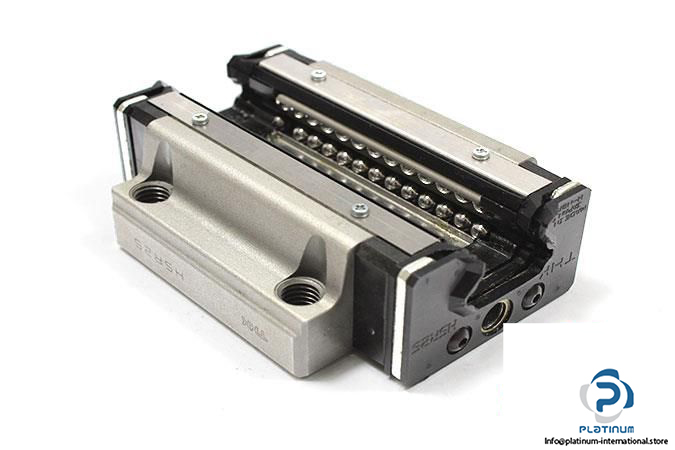

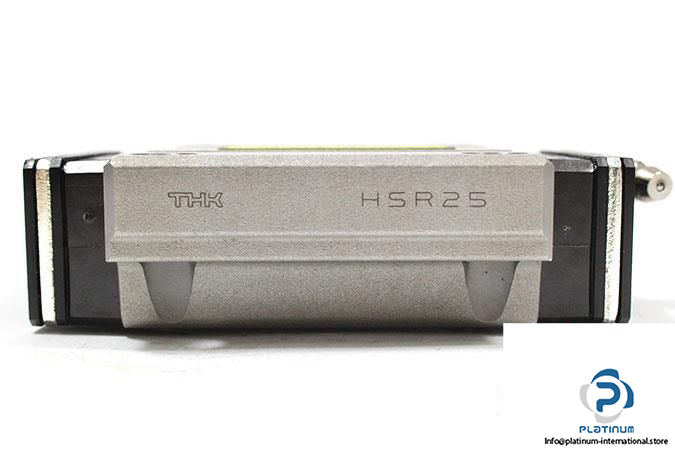

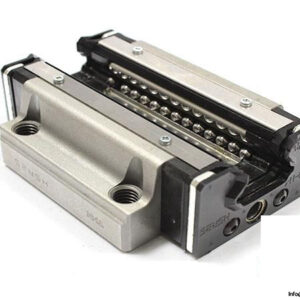

THK HSR25A Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block HSR

Model: HSR 25A

Size: 25

Block Type: Flange Type

Basic Load Ratings:

Dynamic C: 27.6 kN

Static C₀: 36.4 kN

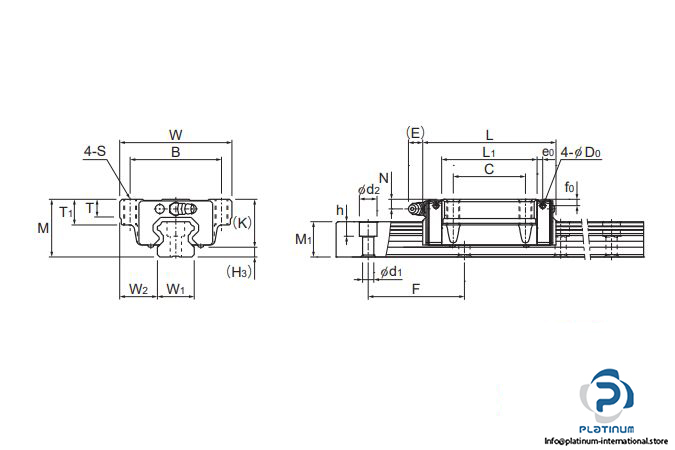

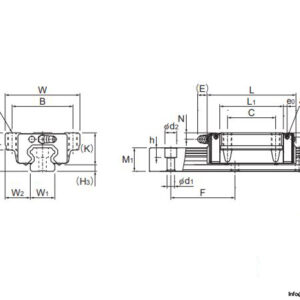

Dimensions

Total Height M: 36 mm

Block Height K: 30.5 mm

Block Width W: 70 mm

Block Length L: 89 mm

Mounting Hole: 4 tapped holes

B: 57 mm

C: 45 mm
