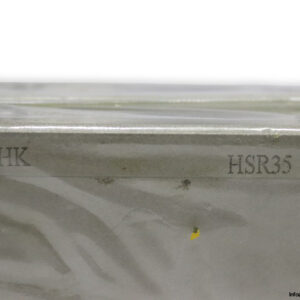

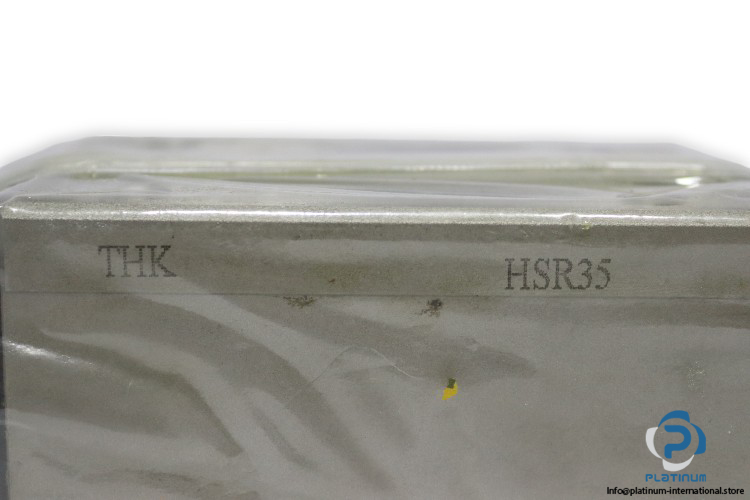

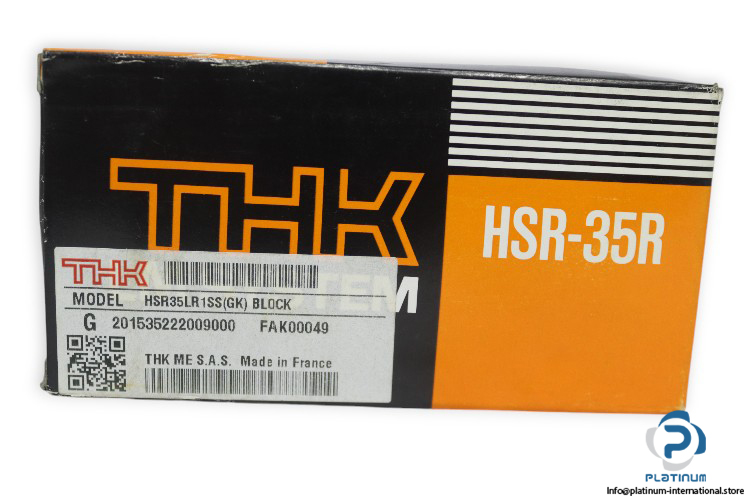

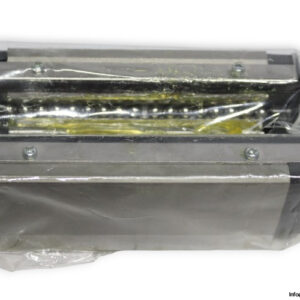

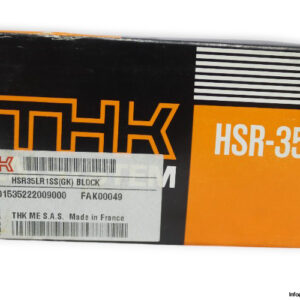

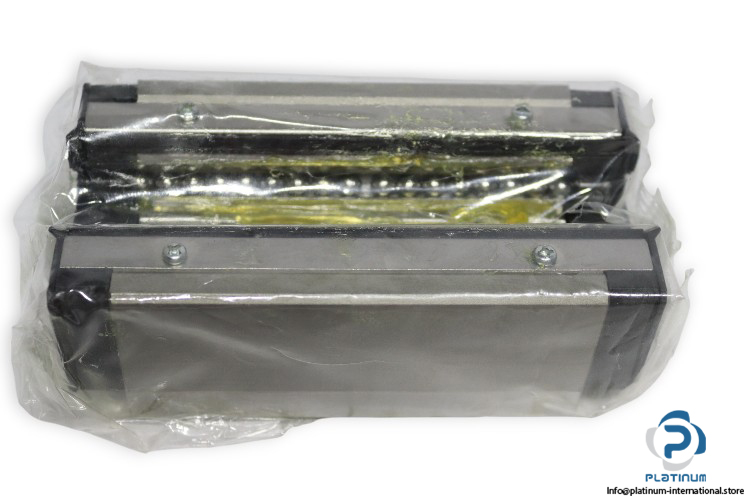

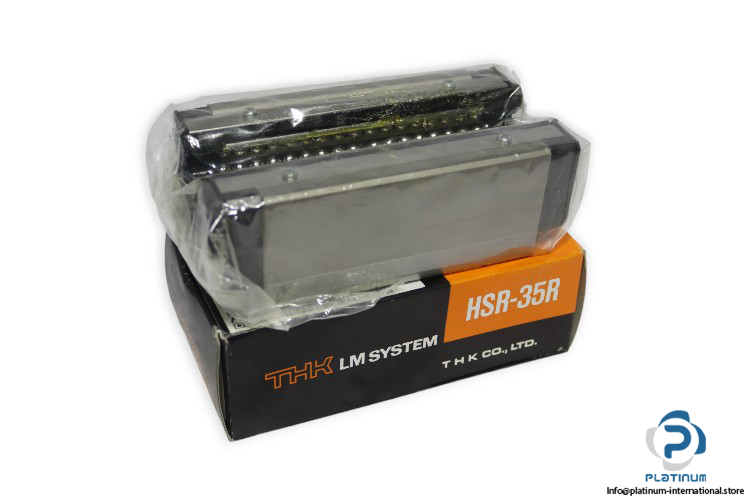

THK HSR35LR1SS Linear Guideway Block

Manufacturer: THK
Type: LINEAR GUIDEWAY BLOCK
Model: HSR35 LR1 SS

Size: 35 mm

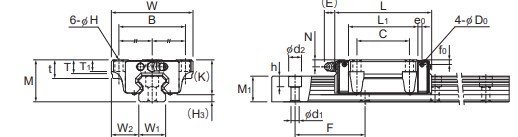

Dimensions
Total Height M: 55 mm
Block Width W: 70 mm
Block Length L: 134.8 mm
Block Height K: 47.5 mm
Block Type: Flange Type
Type of LM block: LR
No. of LM block: 1
Seal: SS , With end seal + side seal + inner seal
Basic Load Ratings:
Dynamic C: 65 kN
Static C₀: 91.7 kN
Mounting Hole: 4 through holes
