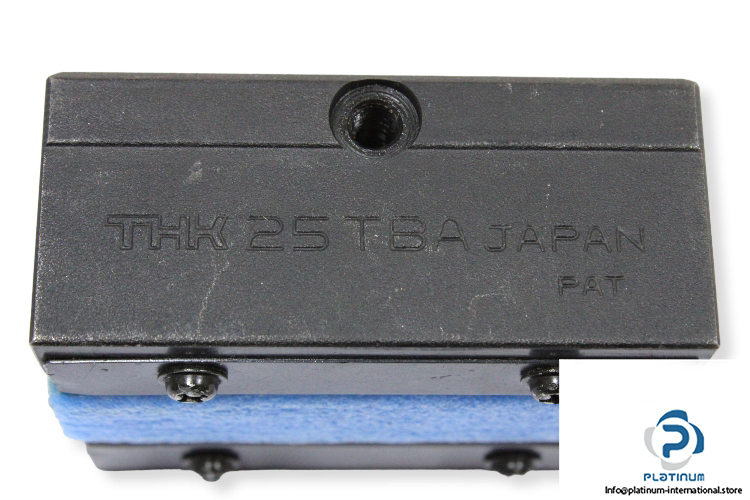

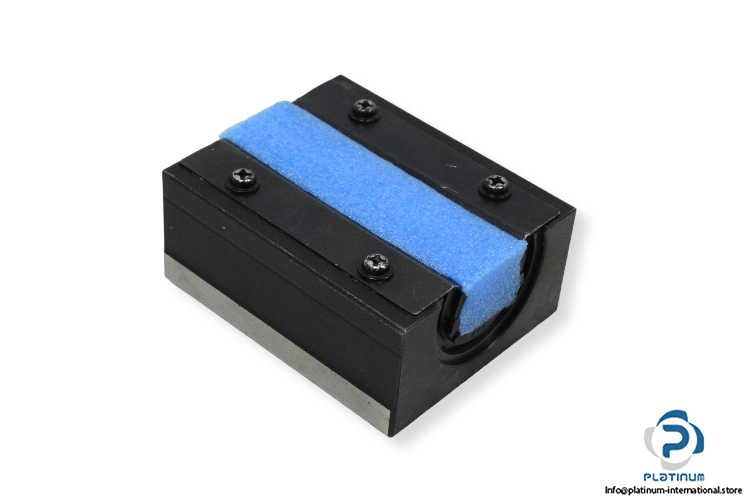

THK NSR25TBA Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block NSR

Model: NSR 25TBA



Size: 25

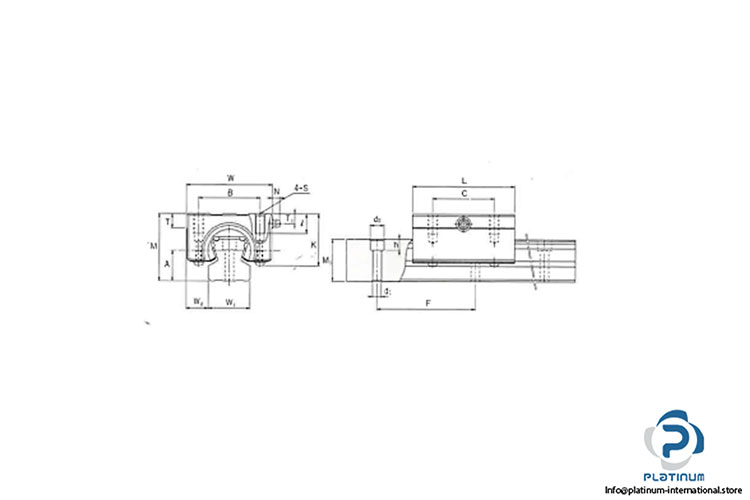

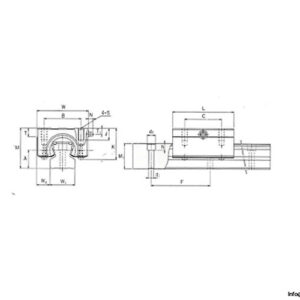

Dimensions

Total Height M: 45 mm

Block Height K: 35.5 mm

Block Width W: 60 mm

Block Length L: 73 mm

B: 40 mm

C: 40 mm

Block Type: Square Type

Mounting Hole: 4 tapped holes

Basic Load Ratings:

Dynamic C: 14.9 kN

Static C₀: 26.7 kN
