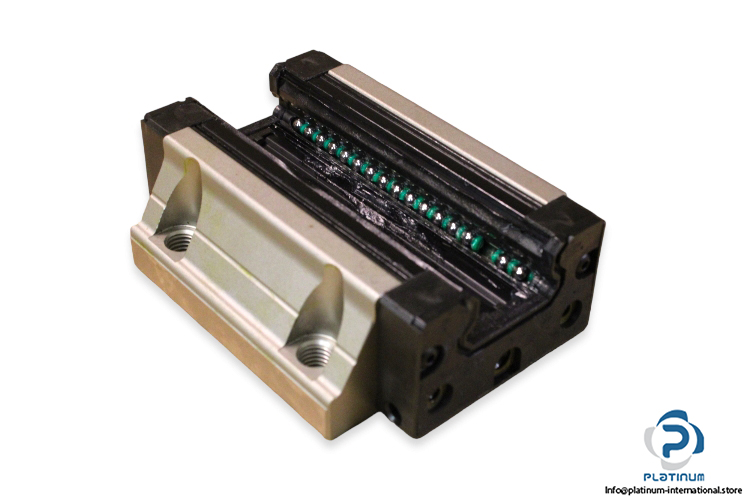

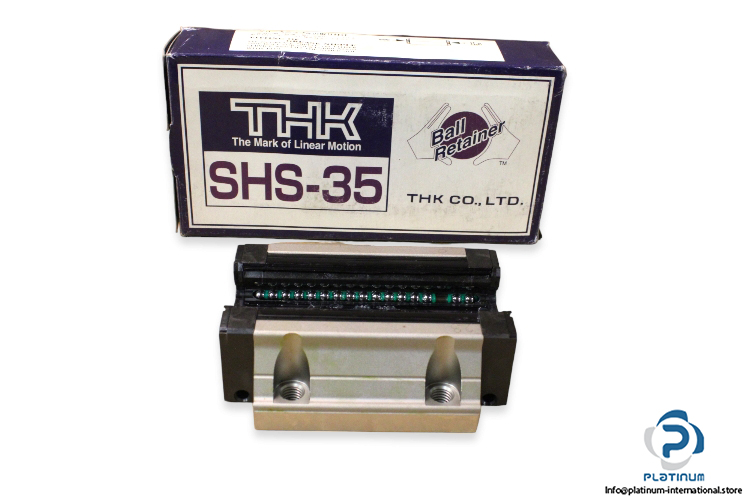

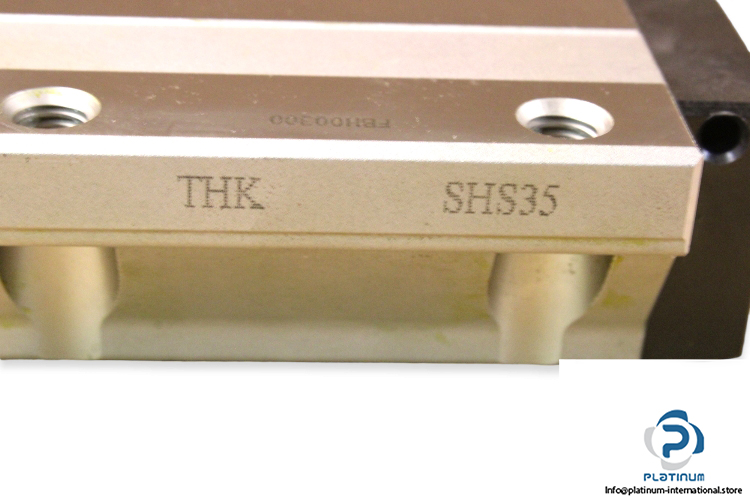

THK SHS35C1SS Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block SHS

Model: SHS 35C1SSC1 , SHS35C1SSC1, SHS35



Size: 35

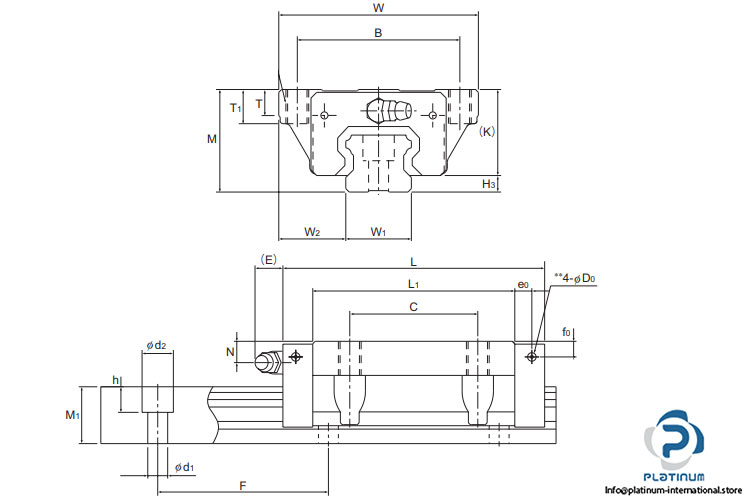

Dimensions

Total Height M: 48 mm

Block Height K: 40.5 mm

Block Width W: 100 mm

Block Length L: 122 mm

L₁: 93 mm

B: 82 mm

C: 62 mm

Block Type: Flange Type

Mounting Hole: 4 tapped holes

Basic Load Ratings:

Dynamic C: 62.3 kN

Static C₀: 96.6 kN

Preload: C1, Light preload

Protection accessory: SS; With end seal, side seal and inner seal
