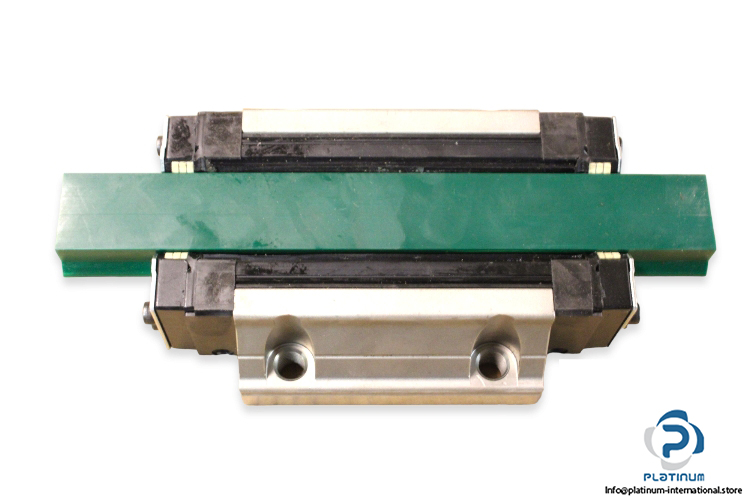

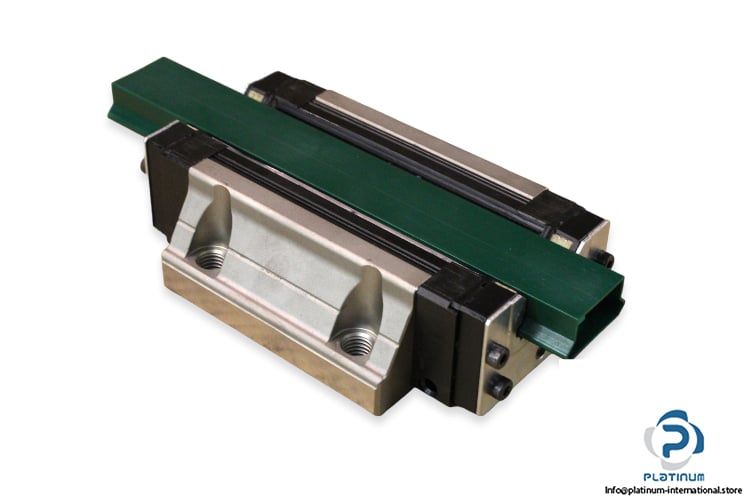

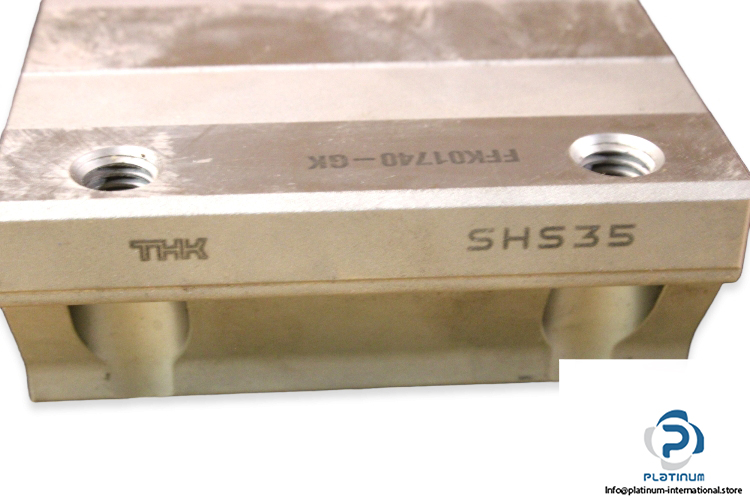

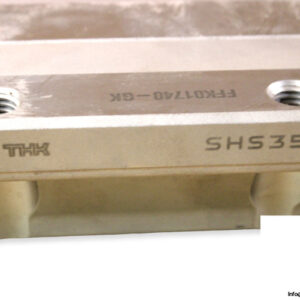

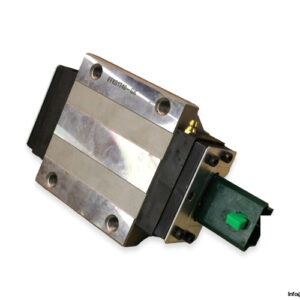

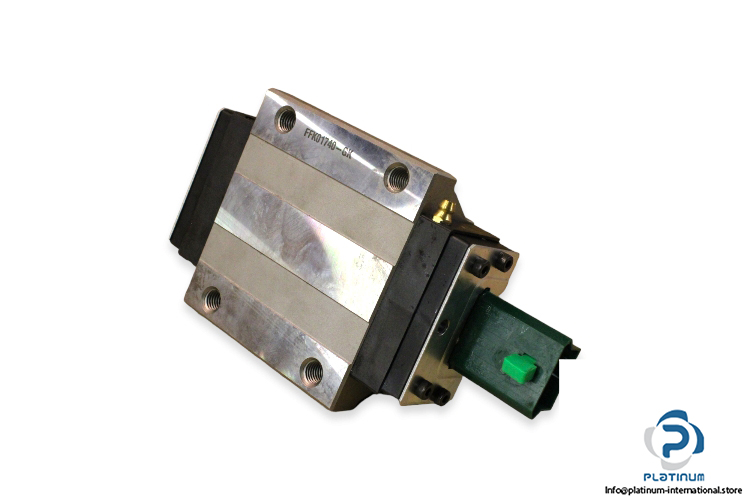

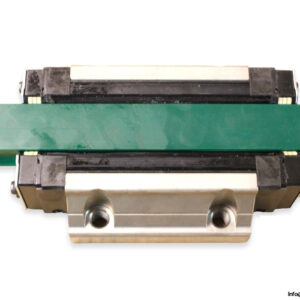

THK SHS35C1ZZHH Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block SHS

Model: SHS35 C1ZZHH (GK)



Size: 35

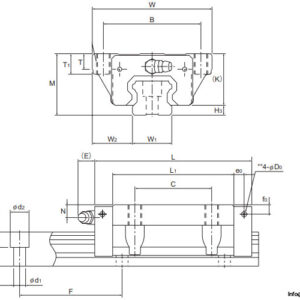

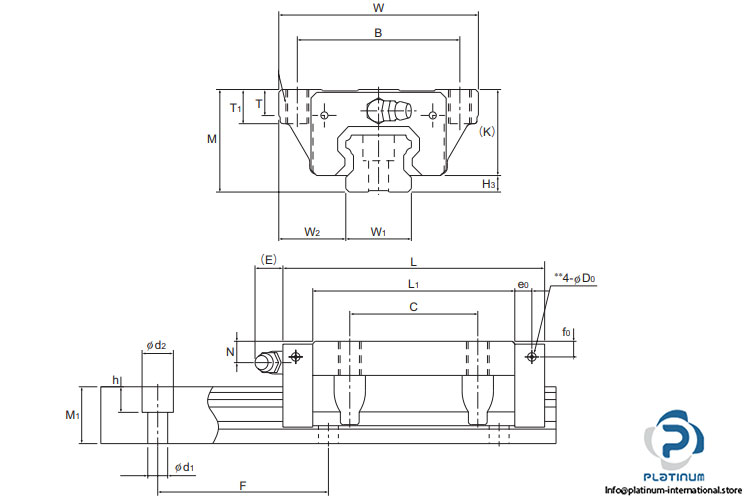

Dimensions

Total Height M: 48 mm

Block Height K: 40.5 mm

Block Width W: 100 mm

Block Length L: 122 mm

Length with accessory: 150 mm

L₁: 93 mm

B: 82 mm

C: 62 mm

Block Type: Flange Type

Mounting Hole: 4 tapped holes

Basic Load Ratings:

Dynamic C: 62.3 kN

Static C₀: 96.6 kN

Protection accessory: ZZHH; With end seal + side seal + inner seal + metal scraper + Laminated Contact Scraper
