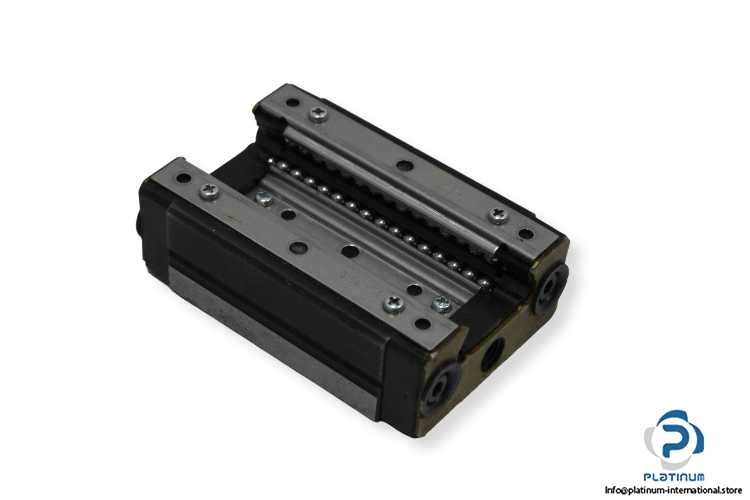

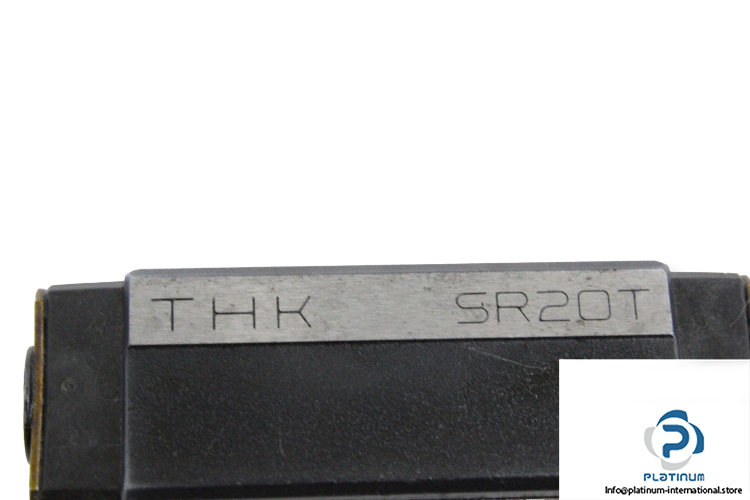

THK SR20T Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block SR

Model: SR 20 T

Alternative Part no.: SR20W



Size: 20

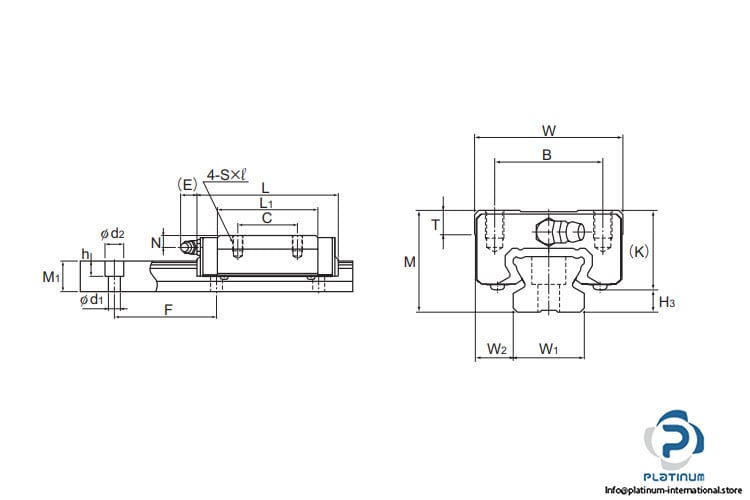

Dimensions

Total Height M: 24 mm

Block Height K: 22 mm

Block Width W: 42 mm

Block Length L: 66.2 mm

L₁: 46.7 mm

B: 32 mm

C: 32 mm

Block Type: Square Type

Mounting Hole: 4 tapped holes

Basic Load Ratings:

Dynamic C: 12.5 kN

Static C₀: 25.2 kN
